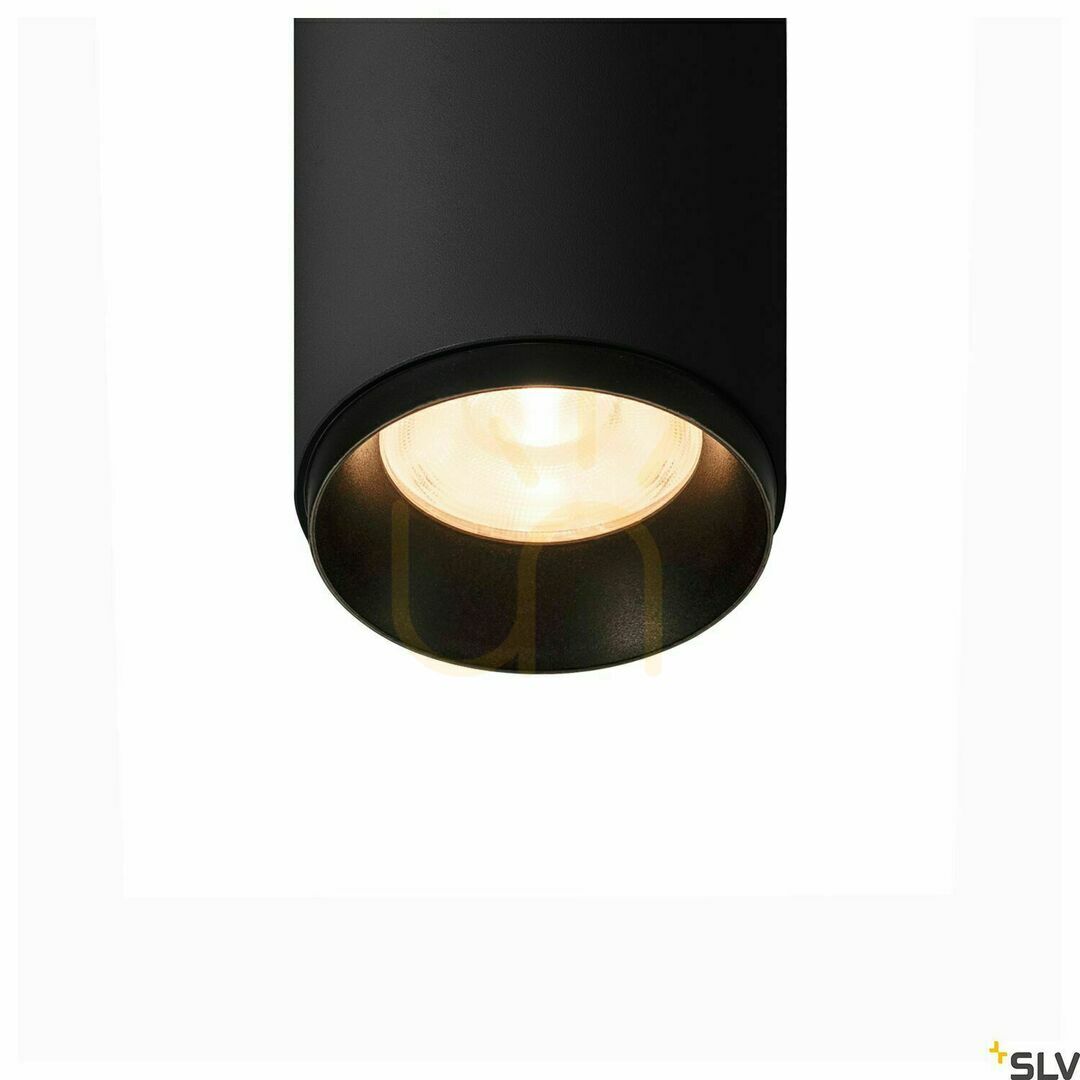

SLV NUMINOS CL PHASE S LED surface-mounted ceiling light, black, 10.42 W 2700 K 36° 1004123

The SLV NUMINOS CL PHASE S (article 1004123, EAN 4024163242738) is a cylindrical size-S LED ceiling luminaire from the NUMINOS series for surface mounting. Housing and ring are black. The LED source is integrated — no separate lamp is required.

Mounting and installation

This is a surface-mounted ceiling fixture, not a recessed downlight. It connects to 220–240 V, 50/60 Hz. Protection class I requires an earth conductor. Secondary current is 250 mA. Installation must be carried out by a qualified electrician. The light source and control gear may be replaced by a professional only.

Light and control

• 10.42 W power, 985 lm luminous flux;
• 2700 K warm white, CRI 90;
• 36° beam, rotationally symmetrical direct light;
• UGR ≤ 16;
• trailing-edge phase dimming;
• rated life 50 000 h (L80B50);
• photobiological risk group 1.

Dimensions, materials and operating conditions

• diameter 6.5 cm, height 16.2 cm;
• aluminium and plastic, colour black;
• IP20 — for dry indoor use;
• ambient temperature −20 °C to +40 °C;
• net weight 0.425 kg, gross weight 0.65 kg;
• light-source energy class F;
• 5-year manufacturer warranty.

An optional white NUMINOS S front ring (article 1006167) is available separately from the manufacturer.
