LED Profile SLV GRAZIA 60 White Aluminum 150 cm 1004906

SLV GRAZIA 60 recessed profile – 1.5 m

SLV GRAZIA 60, item 1004906, is a white aluminium recessed profile measuring 1.5 m. It is made to form a clean integrated light line with the GRAZIA PRO MAX FLEXSTRIPS system. The profile is not a complete luminaire or light source on its own: it provides the installation body for compatible LED strips, a cover and the remaining system components selected for the project.

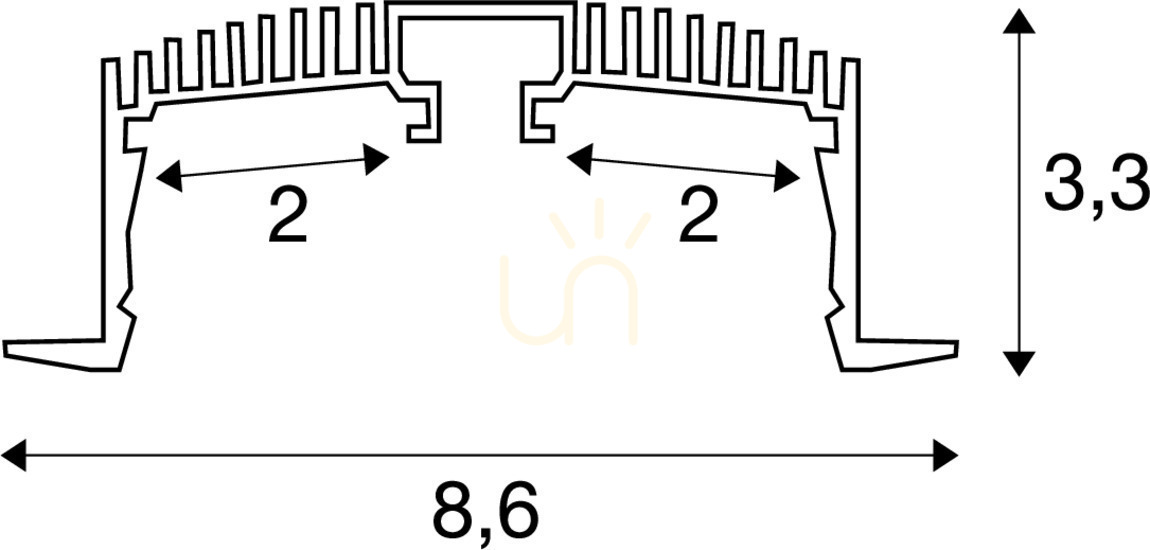

Recess dimensions

• profile length: 150 cm,
• external width: 8.6 cm,
• height: 3.3 cm,
• required cut-out: 150 × 7.5 cm,
• required recess depth: 8 cm.

These dimensions should be allowed for before preparing a ceiling, wall or joinery recess. Once installed, the profile gives the light line a defined edge while keeping the body visually integrated with the surrounding surface.

Part of the GRAZIA system

This model belongs to the GRAZIA family. Matching end caps, longitudinal connectors, a feed-in set, mounting clips and covers are available within the system. Check the compatibility of every selected component with the chosen LED strip and installation arrangement before ordering.

Finish and intended project use

The white aluminium finish sits unobtrusively in pale ceilings and fitted furniture. It is a considered choice where a continuous built-in light detail is wanted in interior architecture, cabinetry or circulation areas. Its IP20 rating is intended for interior installations away from direct water exposure.
