Lillehammer 2264WH White LED NORLYS Outdoor Wall Sconce

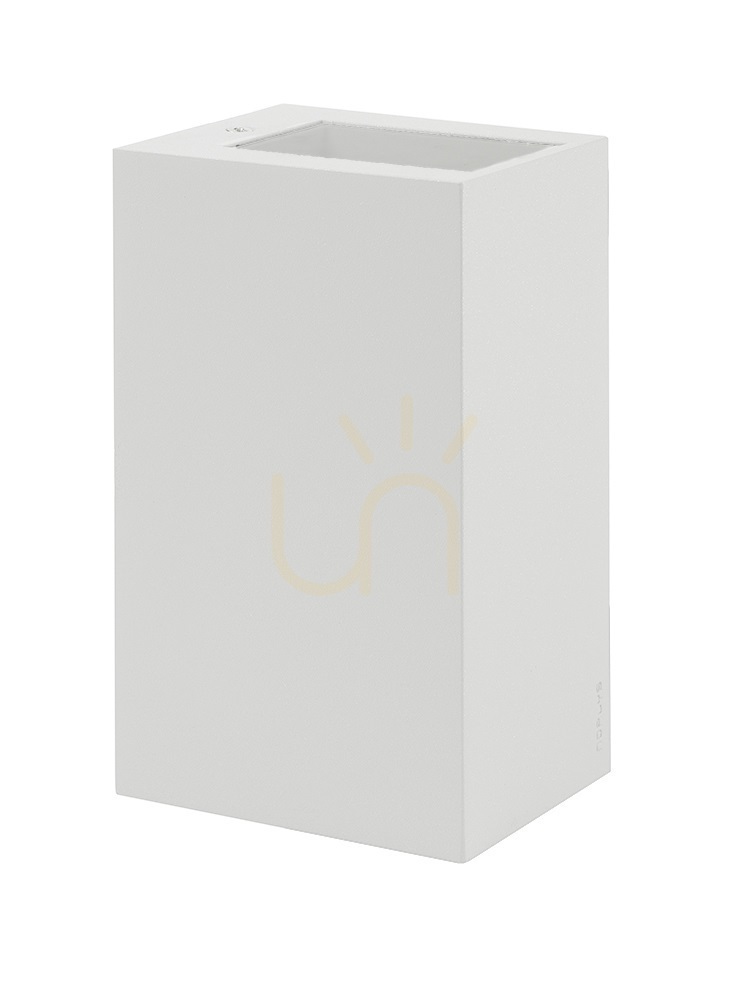

Lillehammer 2264WH is a white outdoor wall light with a clean, rectangular body. Its housing is made from powder-coated cast aluminium and fitted with transparent safety glass. The luminaire measures 18.5 cm long, 11 cm wide and 8 cm high; the WH suffix identifies the white RAL 9003 finish.

A narrow downward beam

The built-in LED module delivers 13 lm from the luminaire through a 4° beam directed only downwards. This deliberately shaped accent light is intended to mark a limited area of wall or façade rather than replace general lighting at an entrance. A colour temperature of 2700 K produces warm, slightly yellow light, while the colour rendering value is CRI 80.

The LED light source is rated at 2.8 W, whereas the complete luminaire draws 4.5 W. Its DALI2 control gear allows connection to a compatible DALI control system; an ordinary phase dimmer does not operate this type of control. Both the LED source and the control gear are replaceable by a professional only.

Size and electrical connection

The base occupies an area of 18.5 × 11 cm on the façade and the body projects 8 cm from the wall. These dimensions can be checked against the free space beside a doorway, close to a corner or between other architectural elements. Net weight is 1.6 kg.

The fixture uses two Ø5 mm mounting holes spaced 45 × 130 mm apart. Its terminals accept conductors up to 5 × 1.5 mm² and support loop-through wiring. Norlys specifies a round-sheathed cable with a diameter between 7 and 10.5 mm.

Protection outdoors

An IP65 rating means the enclosure is dust-tight and protected against water jets, so the wall light is intended for outdoor installation. IK08 indicates resistance to mechanical impact, and the permitted ambient operating range is -20 to +45 °C.

Lillehammer 2264WH operates at 220–240 V and is a Class I luminaire, so it requires a protective earth connection. A silicone gasket and an EPDM cable gland seal the construction.
