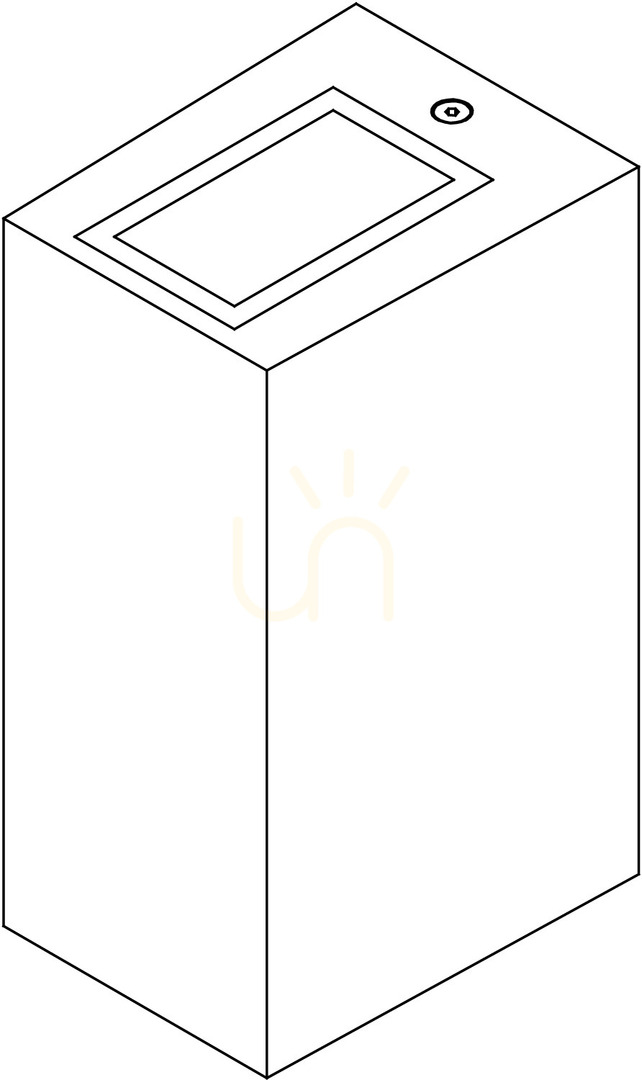

NORLYS Lillehammer DC2290CB is an outdoor LED wall luminaire in Copper Brown, designed for a DC 24 V low-voltage installation. Its aluminium housing measures 18.5 cm long, 11 cm wide and 8 cm deep. The restrained geometric form remains a distinct architectural detail on a façade even when the fitting is switched off.
The integrated LED is rated at 7.2 W, with a 2700 K colour temperature and a luminaire luminous flux of 131 lm. The manufacturer specifies this warm light for this exact variant, and no separate lamp is selected. This model operates on DC 24 V and is protection class III, so the installation requirements should be checked against the supply parameters before fitting.
Directed façade lighting
The Lillehammer range is designed as an architectural element with directed light. For DC2290CB, the manufacturer specifies a two-sided lighting effect, allowing the fitting to accent a selected part of a wall rather than light a large surface evenly. It can be considered at an entrance, fence or chosen façade feature where there is room for the 8 cm-deep body.
Installation and outdoor conditions
The fitting is rated IP65 and IK08 for mechanical impact resistance. It is designed for two Ø5 mm mounting holes spaced 45 × 130 mm apart; installation should follow the enclosed instructions. The permitted ambient temperature is −30 to +50 °C. Aluminium and the copper-brown finish give contemporary architecture a calm, modern accent. Net weight is 1.70 kg and gross weight is 1.90 kg.
