NORLYS Lillehammer 2283AL outdoor wall light LED 7.3W 4000K aluminium IP65, up and down, DALI2

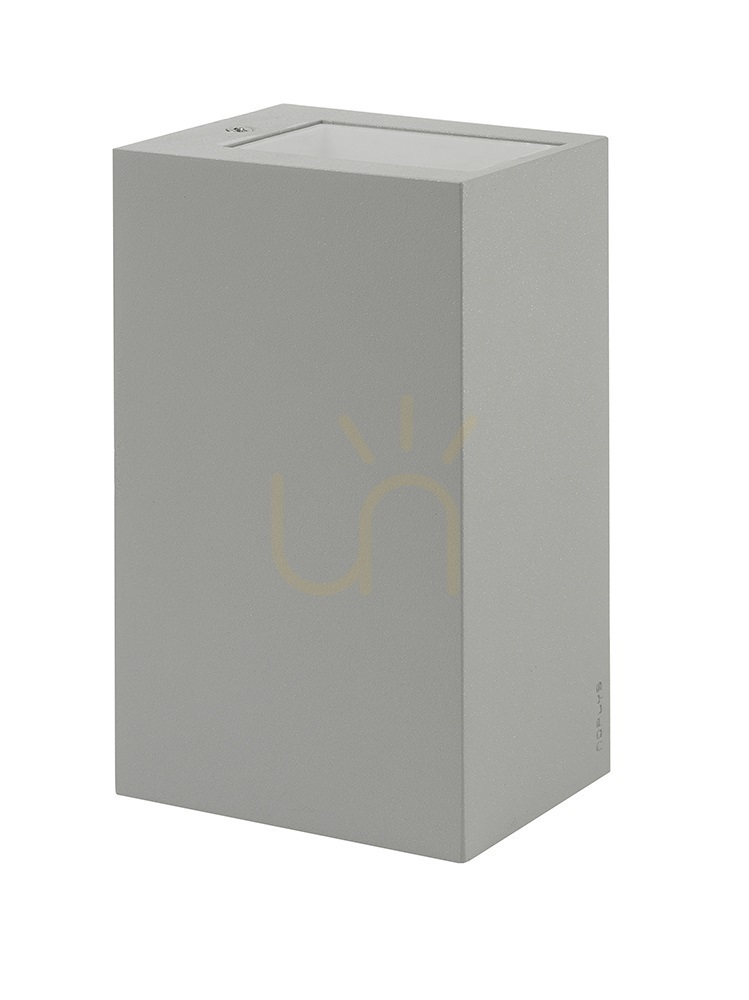

Lillehammer 2283AL is an outdoor wall light in powder-coated cast aluminium, in the aluminium shade RAL 9006. The body stands upright: 18.5 cm high by 11 cm wide, standing 8 cm out from the wall. The apertures at the top and the bottom are closed with clear safety glass.

Two narrow blades of light, not area lighting

Norlys gives a beam angle of 4 degrees up and down, and that is the point of this fitting. The LED module produces 1008 lm, but through an optic that narrow only 31 lm leaves the housing — the rest stays inside. This will not light a driveway or a terrace; its job is to lay two sharp blades of light on the wall.

Half the output goes up and half down — the producer states ULOR 50%. The effect therefore depends on the surface: on textured render or brick the blades read strongly, on a smooth pale wall they are far subtler. 4000 K is neutral, and Ra 80 is enough for the facade material to keep its own shade after dark.

Mounting and wiring

The fitting is fixed on two ø5 mm screws at 45 × 130 mm centres. The terminals take conductors up to 5 x 1.5 mm² and allow the supply to be looped through to the next luminaire, so a row of them along a facade can run on one cable; the gland takes a sheathed cable of ø7-10.5 mm.

It works in protection class I, so a protective earth conductor has to reach the box. Norlys also states how many will sit on one circuit: 46 on a B10A breaker, 74 on B16A and C10A, 119 on C16A — the number a longer run is planned around.

Control, sealing and service

Dimming runs over DALI2, that is over a control bus rather than an ordinary wall dimmer — on a single fitting that means extra wiring, across a whole facade it gives one scene control for all of them.

IP65 means full dust-tightness and resistance to water jets, and IK08 covers impact, so the fitting can sit on an open wall with no shelter and within reach. The LED module and the driver are replaceable by a professional — Norlys publishes the service set ZS2283zx0009 — so a failure in the electronics does not end the luminaire's life.
