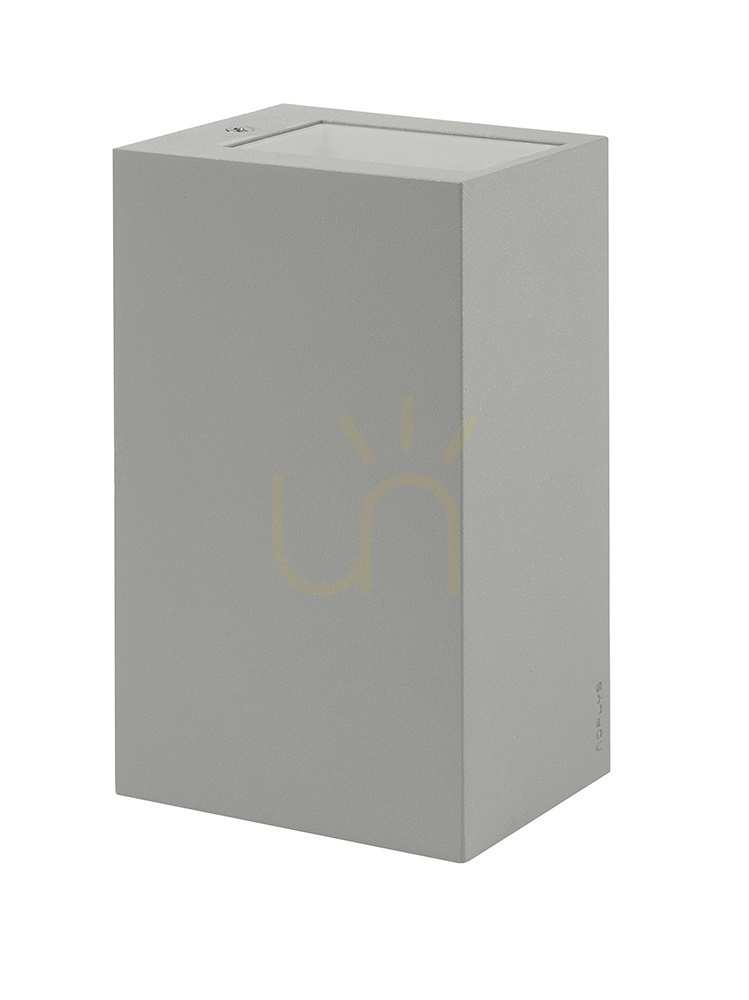

NORLYS Lillehammer DC1582AL is a compact outdoor wall light from the Lillehammer series. The AL version is aluminium and has a clean geometric body measuring 18.5 × 11 × 8 cm. Its integrated 3.6 W LED delivers 115 lm of warm 3000 K light.
Light where it is needed
The fitting emits light in one direction, downwards, through a 60° beam. Placement should therefore be planned for the area immediately below the fitting rather than the wall above it. ULOR is 0%, and the stated BUG classification is B0-U0-G0.
Body and wall fixing
The body is painted cast aluminium with an EPDM cable gland; the optical element is clear glass. The manufacturer specifies IP65 protection and IK08 impact resistance. Two ø5 mm fixing holes are set 45 × 130 mm apart, information that should be checked against the intended mounting surface.
24 V DC supply
DC1582AL requires a 24 V DC supply and is not a direct 230 V mains fitting. Confirm the planned supply system before installation. The LED source is integrated. Other stated data include CRI 80, SDCM3, a 52,330-hour average lifetime and energy class D.
The restrained aluminium form can be considered for façade lighting when the downward beam direction and fixing dimensions suit the selected position.
