NORLYS MOSS 6706GR outdoor spotlight with arm, 4 W, 3000 K, graphite RAL 7016

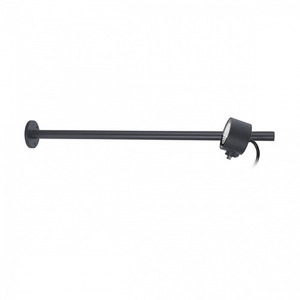

NORLYS MOSS 6706GR is an outdoor spotlight with a cylindrical head on a long, straight mounting arm. Its graphite RAL 7016 finish combines powder-coated cast aluminium with clear safety glass. The arm holds the light head away from the mounting surface; this is not a freestanding garden bollard.

A beam aimed at a particular feature

The integrated LED module produces warm white light at 3000 K. Luminaire output is 382 lm, delivered through a symmetrical beam with a nominal 36° angle. This matters when highlighting a selected garden feature or architectural detail: the light is directed rather than spread equally in every direction. The head can also be adjusted in the vertical plane, so the illuminated area depends on its aiming position as well as where the arm is mounted.

The light source is rated at 4 W, while the complete fitting consumes 4.2 W. Both trailing-edge and leading-edge phase dimming are supported. Choose a compatible dimmer when planning the controls; a dimmable fitting is not necessarily compatible with every type of regulator.

Allow room for the arm and connection

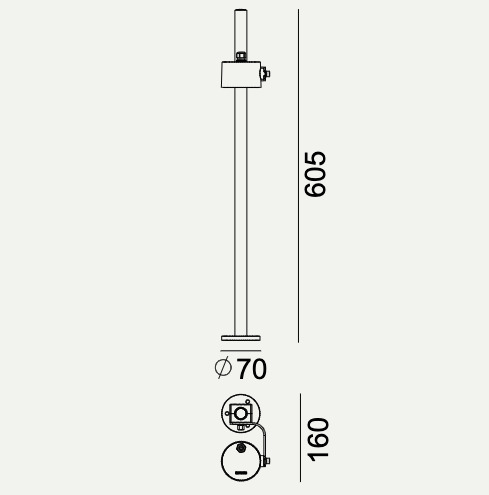

The assembly measures 605 mm along the arm. Its mounting base is 70 mm in diameter, with three 6 mm fixing holes on a 50 mm pitch circle. Compare the arm length with the space available in front of the mounting surface, allowing room to aim the head. The straight support and simple cylindrical form suit modern and minimalist exterior designs without decorative detailing.

The set includes arm 6700 and fitting 6705. A 3 m H05RN-F 3G1 cable is provided for connection in a suitably selected electrical junction box. Other accessories must be purchased separately. IP65 supports outdoor use, but the connection must also preserve the protection required for the installation.

LED replacement is a service operation

The light source is included. Replacement of the LED module is reserved for professional servicing, rather than a routine user bulb change. When planning garden or façade lighting, keep the fitting accessible for that maintenance procedure instead of treating the integrated module as a conventional screw-in lamp.
