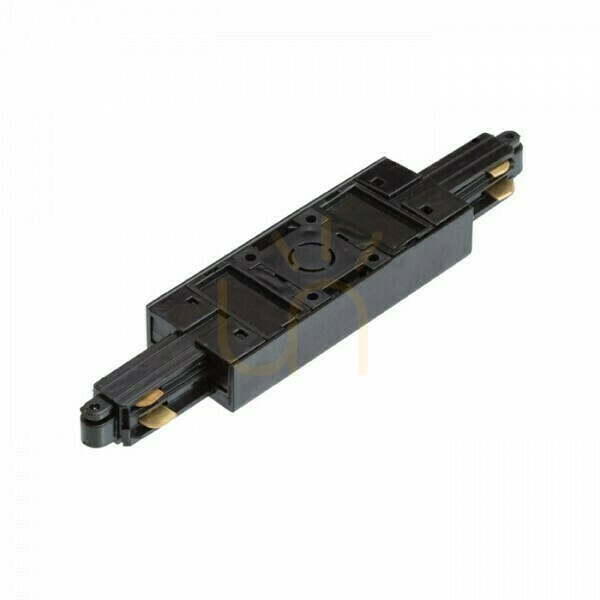

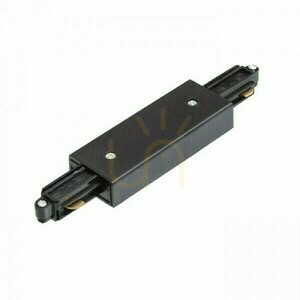

Rendl R12264 is a long black straight connector with a feed-in facility for the single-circuit 1F lighting track system. It joins two track sections in a straight line, with a rectangular cover between the ends that fit into the tracks. It is an installation component, not a light fitting or a switch.
A track joint that can also accept power
This version connects sections of the Rendl 1F system and allows power to enter at the joint. It is designed for 230 V AC, with a manufacturer-stated maximum current of 16 A. Check compatibility with the Rendl single-circuit system when choosing parts; matching the track colour alone is not enough. The connector does not produce light or adjust its brightness.
Plan with the full component dimensions
The manufacturer's drawing distinguishes a 9.5 cm cover from two end sections measuring 3.9 cm each. Together they give an overall length of 17.3 cm, with a width of 3.3 cm and height of 1.8 cm. This distinction matters when comparing the central cover with the complete part. The black finish identifies the R12264 variant.
The installation instructions require the power supply to be disconnected before work and the installation to be carried out by a qualified person. The diagram also shows a protective-earth connection. Plan the feed-in location and the remaining components as part of the complete track installation.
