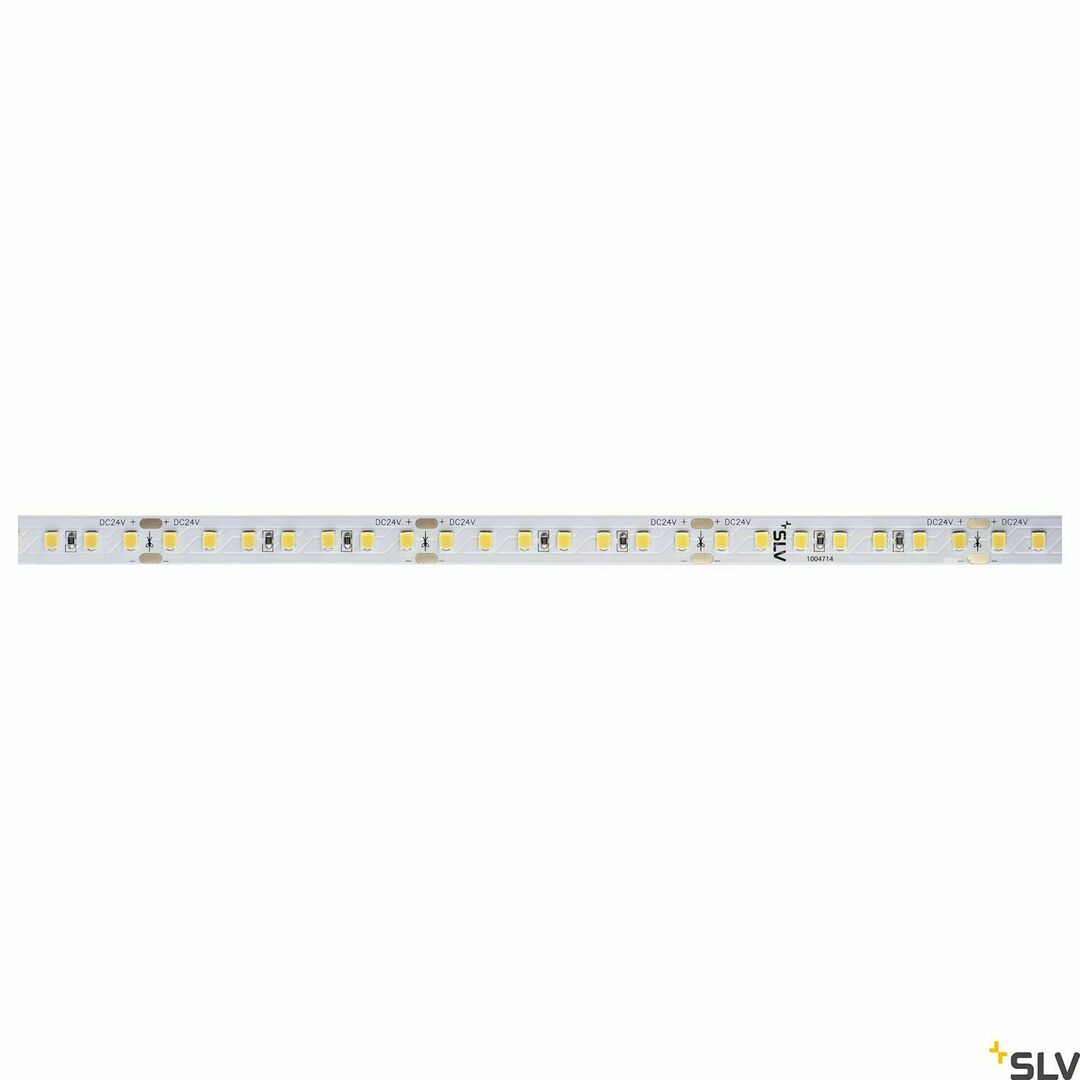

GRAZIA PRO FLEXSTRIP 1004714 is a flexible SLV LED strip, 5 m long and 10 mm wide, running on 24 V DC. It gives neutral 4000 K light, and the full reel delivers 7000 lm at 73 W. The LEDs are spaced 8 mm apart, 126 per metre.
How much light and of what quality
7000 lm over five metres is roughly 1400 lm per metre of strip — enough for the strip to give working light under kitchen cabinets or in a walk-in wardrobe rather than just a glow along an edge. 4000 K is a neutral white, without the yellowish cast of 2700–3000 K strips and without the cool tone of 6500 K.
A colour rendering index of Ra 90 means colours look almost as they do in daylight, which over a kitchen worktop and among clothes in a wardrobe is the difference between a true colour and a distorted one. Colour consistency is within 3 SDCM, so successive sections light up in the same shade. The beam angle is 120°, and SLV states 30,000 hours of life and 15,000 switching cycles.
Which power supply you need to add
The strip is Safety Class III, running on safe 24 V DC, and no power supply is included. The full reel draws 73 W, which at 24 V is about 3 A, so powering all five metres takes a 24 V supply of at least 73 W — in SLV's accessory list, those are the 100 W models. The 25, 30 and 50 W supplies on the same list are enough for a shorter, cut-down length.
The strip itself is not DALI-capable and has no colour switching; whether it dims depends on the power supply, and SLV lists both phase-dimmable (TRIAC) and DALI-controlled supplies among the accessories.
Mounting and cutting
The strip is 1.2 mm thick, with a self-adhesive back and factory-soldered supply leads. It is cut at the marked points every 5.6 cm, so the length can be matched to a cabinet or recess to that precision. SLV specifies surface mounting on a ceiling or wall and designed the strip to fit the aluminium profiles of the GRAZIA system. The ambient temperature range given by SLV runs from -20 °C to 45 °C.
