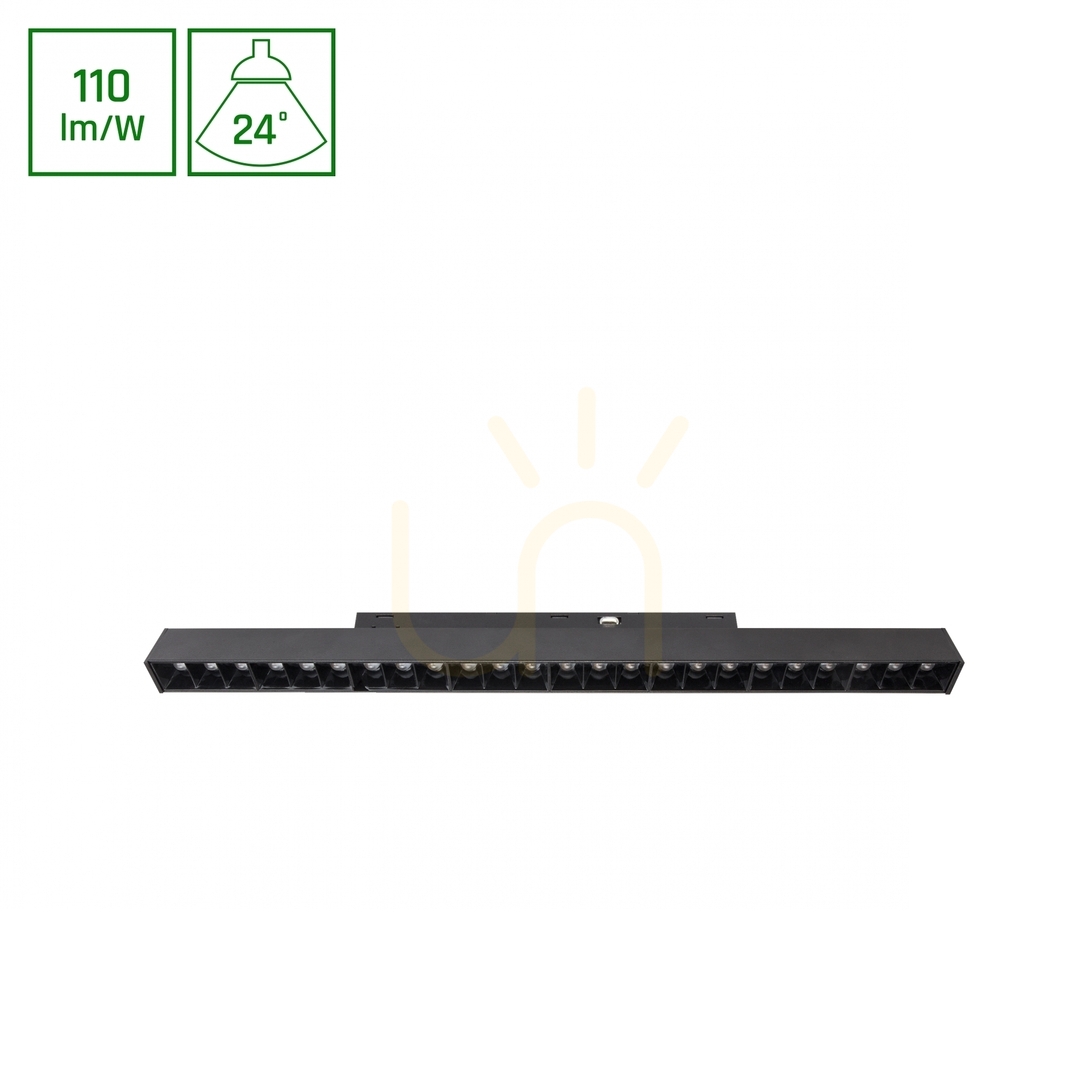

System Shift Basic Gridm Linear Light Fixture 330mm 18W 2700 K Black

System Shift Basic - Grid M Linear Luminaire 330mm 18W 2700K Black – WLD+70030WW

On track luminaire SYSTEM SHIFT BASIC GRID M, with a power of 18 W, high light efficacy 110 lm/W. Narrow beam angle 24° gives directional light so that selected objects or surfaces can be better exposed. Designed to be mounted on a track.

Key specifications

• Power: 18 W
• Voltage: 48 V
• Nominal current: 270 mA
• Luminous flux: 1280 lm
• Lamp efficacy: 110 lm/W*
• Light color: WW
• Colour temperature: 2700 K
• Beam angle: 24 °
• Degree of protection (ip): IP20
• Dimension: 330x23x42 [mm]
• Warranty: 2-years
• Ra: 80
• Energy efficiency classe: F
• Assembly: na szynoprzewód 48V
• Housing colour: black
• Housing material: aluminum
• Dimmable: no
• Ugr: <19

Selection and installation

Before installation, check the supply voltage, dimensions, mounting method and required IP rating. Select accessories and light sources according to this model’s technical documentation.
