22126-W is a linear Zambelis bathroom wall light with a sandy-white aluminium body and an acrylic diffuser. The bar is 100 cm long and 7.5 cm high; it stands 10 cm off the wall. In the centre is a round base 7.5 cm in diameter. The LED is built into the bar — it cannot be replaced.
How large it is and where it mounts

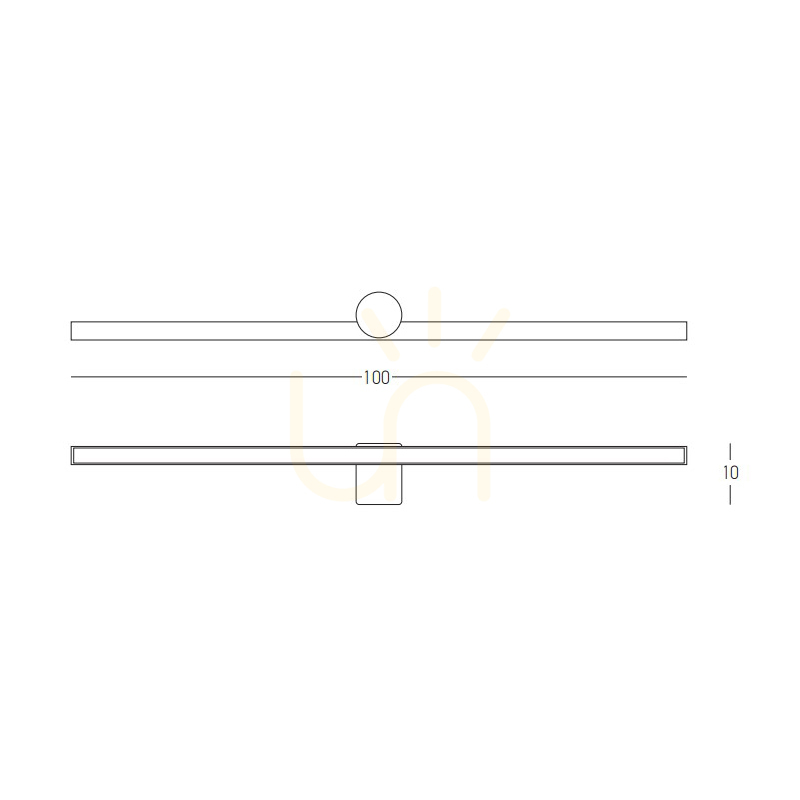

One hundred centimetres along the wall is the figure to compare with a mirror width or a free run of bathroom wall. The profile is 7.5 cm high and the projection is 10 cm, so the bar does not come far into the room. The datasheet lists cutting hole and depth required as none: it is a surface fitting, with no recess to chase in a finished wall.
IP54 means protection against dust and splashing water. The luminaire type on the sheet is an indoor bathroom wall light; the installation leaflet states it is not an outdoor fitting. Safety class I needs an earth conductor — the base holds a terminal block marked N, earth and L. A qualified electrician fits wall anchors, the bracket, the supply wires and the body. There is no supply cable on the fitting — the conductors enter the base.
How much light 22126-W gives
The built-in LED draws 21 W and delivers 1100 lm. That is more than an old 60 W incandescent (about 800 lm), spread along a metre of bar rather than from one point. It lights at 3000 K, warm white. CRI 81 is the colour rendering typical of general-purpose LED.

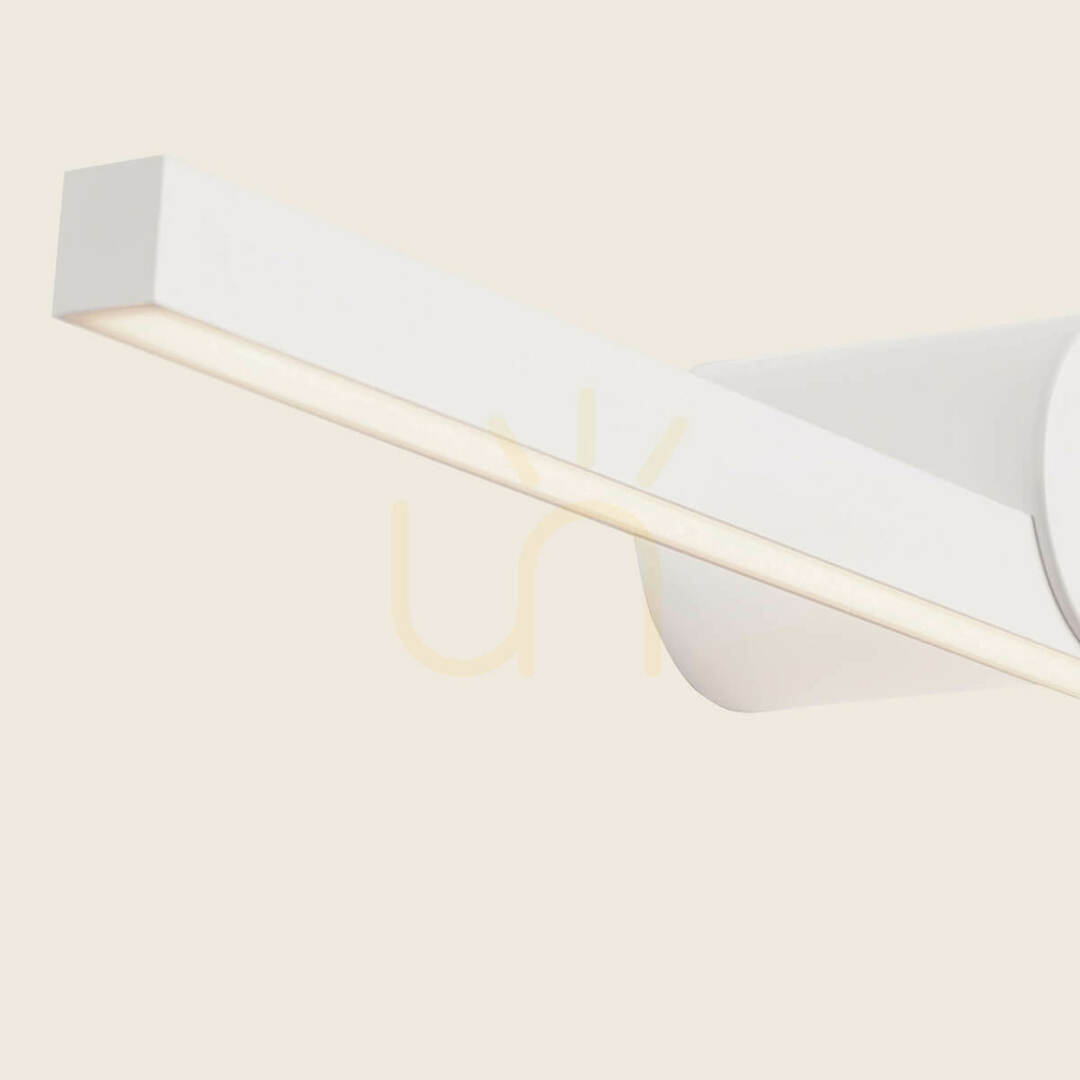

The source cannot be replaced. The maker quotes L70B50 30 000 h. The fitting is not dimmable — there is no dimmer input. Supply is 220–240 V. The close-up shows the diffuser on the underside of the bar: light goes along and down, not all around.
Build and warranty
Aluminium and acrylic, sandy-white finish. Manufacturer warranty is 3 years. Gross pack weight is 1.5 kg.
