Black Luces Exclusivas BATALLAS LE44786 LED pendant 38 W 2564 lm 2700–3000 K

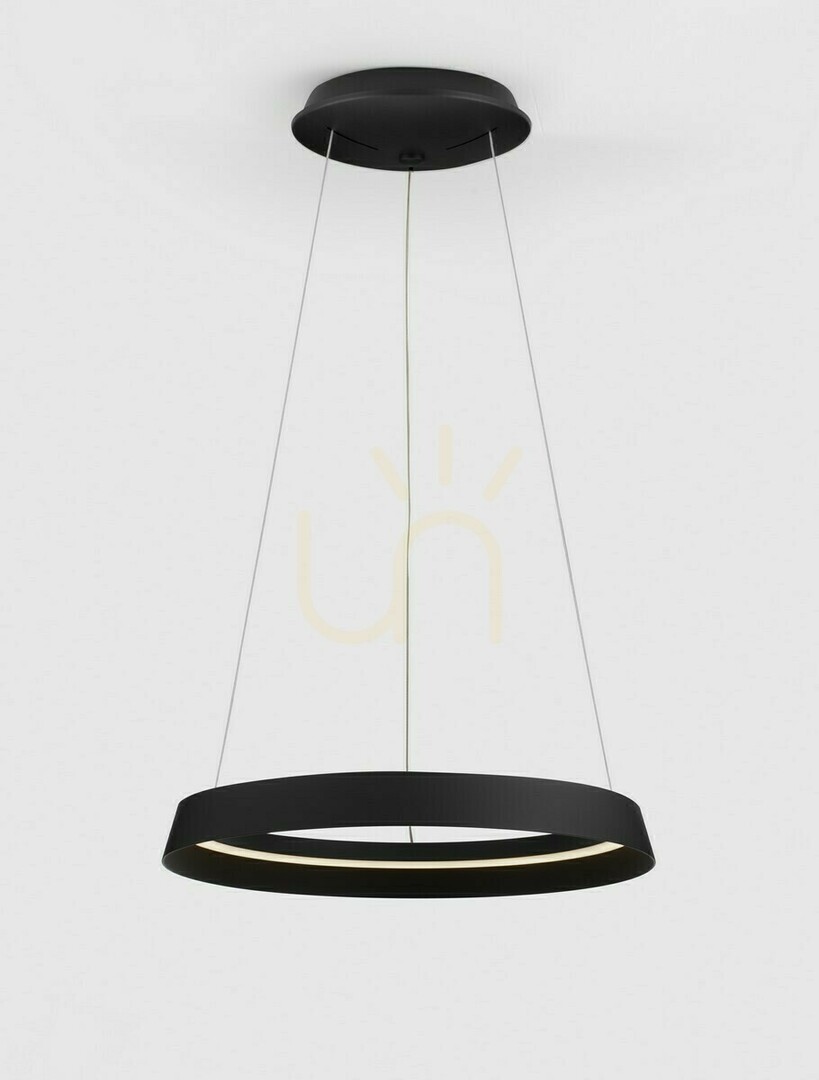

Luces Exclusivas BATALLAS LE44786 is a black pendant built around a broad illuminated ring suspended on fine cables. Its integrated LED module consumes 38 W, produces 2564 lm and allows a warm setting within the declared 2700–3000 K range. Exact reference LE44786 distinguishes this version from other BATALLAS fittings with different dimensions or mounting arrangements.

A 38 W integrated LED producing 2564 lm

The LED source is built in and supplied, so the fitting needs no separate bulb or lampholder. The 38 W input and 2564 lm output apply to this complete exact luminaire. An acrylic diffuser follows the inner edge of the black aluminium ring, directing light towards the centre and downwards. The module should not be treated as a consumer-replaceable lamp; any future intervention must follow the producer instructions and applicable service conditions.

DIP selection within 2700–3000 K

The producer states a warm 2700–3000 K colour-temperature range and a DIP-switch function. The setting is changed with a switch on the fitting, rather than used as an everyday wall control. Choose the required setting before installation is closed, with power isolated and in accordance with the product sheet. This switch does not provide continuous colour tuning, so the pendant must not be described as RGB or as offering any arbitrary colour-temperature value.

A Ø45 cm ring suspended up to 150 cm

The exact-variant drawing shows a 45 cm diameter ring and an overall suspension height of up to 150 cm. The official card also records 49 cm depth, reflecting the spatial geometry of the suspended assembly. The illuminated body is approximately 8.5 cm high. Before drilling, establish the canopy centre, final ring height and clear space below. The existing close-up remains the useful secondary image because it clearly reveals the black profile and milky diffuser.

TRIAC dimming, 230 V and IP20

BATALLAS supports TRIAC dimming. Actual brightness control requires a compatible dimmer, suitable wiring and installation according to the instructions; the controller is not part of the ring itself. The fitting operates at 230 V. IP20 limits it to a dry interior and provides no water protection. Fixed wiring, cable levelling and DIP-switch checks should be completed by a qualified installer after isolation. Clean aluminium and acrylic with a soft cloth only after the fitting has cooled.
