Bollard Light Norlys Frigga 2152CS LED 4.6W 2700K 304 lm IP65 DALI2 Corten Steel 50 cm

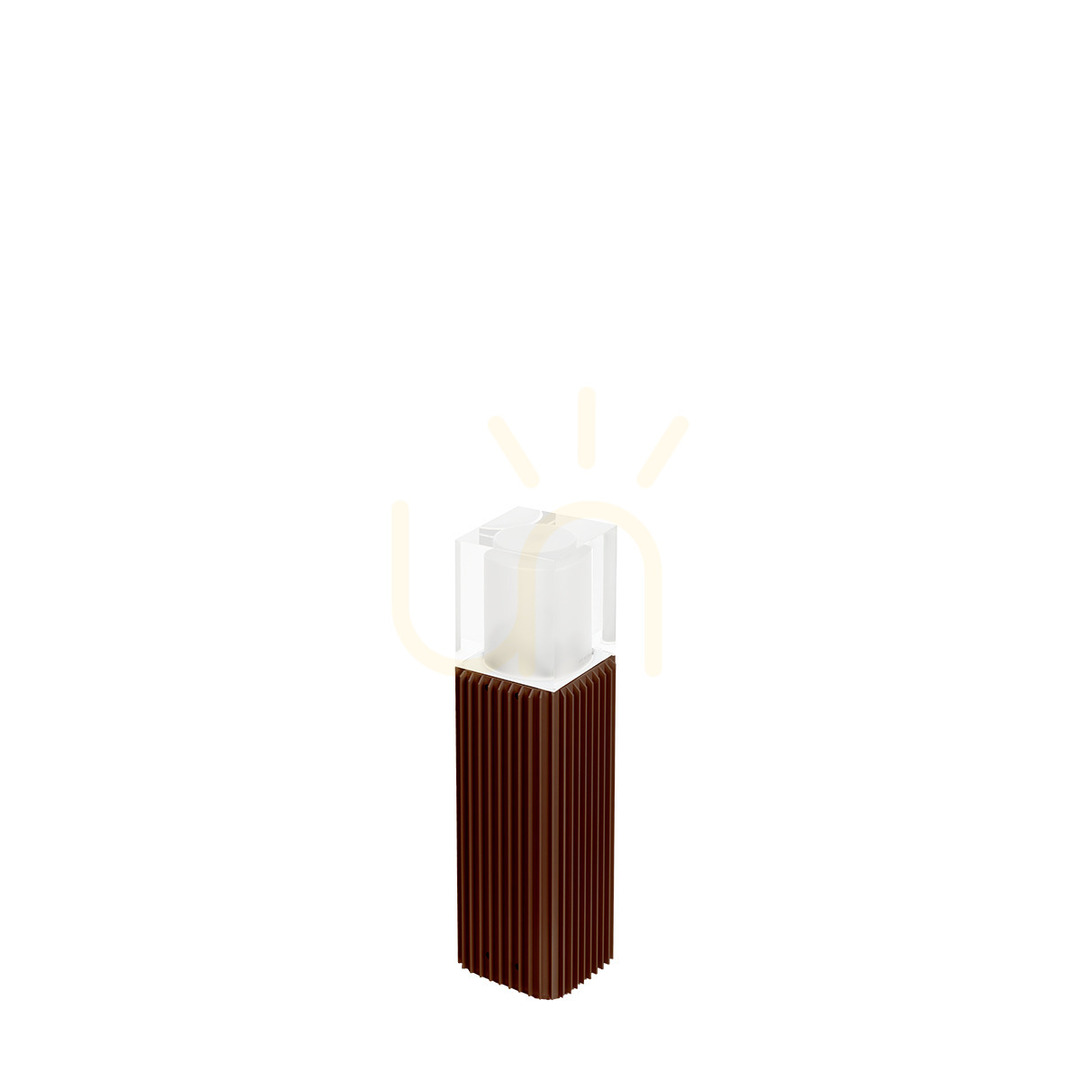

The Norlys Frigga 2152CS is a bollard light 50 cm tall on a 14 × 14 cm base. The fluted aluminium column in a corten finish is topped with a glass cube — crystal glass satin-finished on the inside, so from outside it keeps its cool shine while the light leaves diffused.

All-round light

The head emits in every direction: 304 lm at 2700 K drawing 4.6 W, which is 66.1 lm/W. In absolute terms that is little, and it is meant to be — the bollard does not light the garden, it marks its geometry. Set in a rhythm along a path or a driveway the fittings read as a guiding line, and the warm 2700 K with CRI 80 keeps the night garden nearer candlelight than street lighting. The ULOR figure is 85%, so a substantial share of the flux goes upward — this is a decorative fitting, not a solution for lighting a surface.

Durability and operating conditions

IP65 means fully dust-tight and resistant to water jets, with sealing handled by an EPDM gland. The operating range is −20 to +45 °C at a rated ambient of TA +35 °C. The construction is protection class I and needs an earth conductor. The glass may take on an amber tone over time — a natural property of the material, not a fault.

Control and installation

The fitting carries a DALI2 interface, so it can join a digital control system and dim along with the rest of the garden installation. The terminals accept conductors up to 5 × 2.5 mm² and allow loop-through wiring, so further bollards are chained rather than each needing its own circuit. The gland takes round cable up to ø12.5 mm. Inrush current is 6.7 A for 2.4 µs — worth allowing for when sizing protection with many fittings on one circuit. Fixing is through 3 holes of ø9 mm spaced every 120° on a ø65 mm circle. Concrete and ground anchors and mounting adapters are offered separately by the manufacturer.

Specification

• Manufacturer: Norlys
• Family: Frigga
• Index: 2152CS
• EAN: 7042894138929
• Type: bollard light
• Dimensions: 14 × 14 × 50 cm
• Net weight: 6.62 kg
• Gross weight: 7.67 kg
• Body material: painted aluminium, corten finish
• Shade: crystal glass, satin-finished on the inside
• Sealing: EPDM gland
• Light source: LED, integrated
• Power: 4.6 W
• Luminous flux: 304 lm
• Luminaire efficacy: 66.1 lm/W
• Colour temperature: 2700 K
• Colour rendering: CRI 80
• Colour consistency: SDCM3
• Power factor: PF = 0.9
• ULOR: 85%
• Control: DALI2
• Voltage: ~220–240 V
• Inrush current: 6.7 A / 2.4 µs
• Protection class: I
• Ingress protection: IP65
• Ambient temperature: TA +35 °C, range −20 to +45 °C
• Photobiological risk: RG0 or RG1
• CE certificate: yes
• Mounting: 3 holes ø9 mm on a ø65 mm circle every 120°
• Terminals: max 5 × 2.5 mm², loop-through possible; cable up to ø12.5 mm
• Country of origin: European Union
