Fabbian Freeline F44 M19 02 is a black, 3 m LED bar for the modular Freeline lighting system designed by Flynn Talbot. Its anodised aluminium body has a slender profile with longitudinal grooves. This version includes a light source with a colour temperature of 2700 K. It is not an unlit structural bar or the complete installation shown in the room photographs.
A three-metre component, not a complete fitting
The bar measures 300 cm in length and 2.3 cm in diameter. Compare these dimensions with the intended route of the installation and the space available before choosing a configuration. The three-metre measurement refers to the body, not the power cable. Freeline also includes shorter bars and versions without LED lighting, so the full article code F44 M19 02 matters when selecting the component.
The black finish and narrow linear form suit modern, minimalist lighting compositions. Freeline allows bars and lighting points to be combined into three-dimensional arrangements. The final shape depends on the components selected, however. This individual bar does not determine how the complete installation will be mounted.
Warm-white light from an included LED strip
The 2700 K colour temperature identifies warm-white light. Fabbian specifies a 24 W LED source, a luminous flux of 2480 lm and colour rendering of CRI 90+. These figures describe this component rather than the combined lighting of a larger arrangement. When several illuminated elements are used together, their total power requirement must be considered when planning the supply.
Included components and power supply

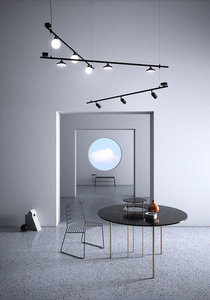

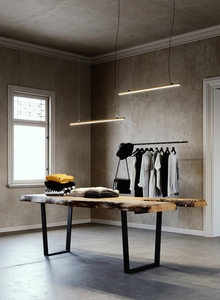

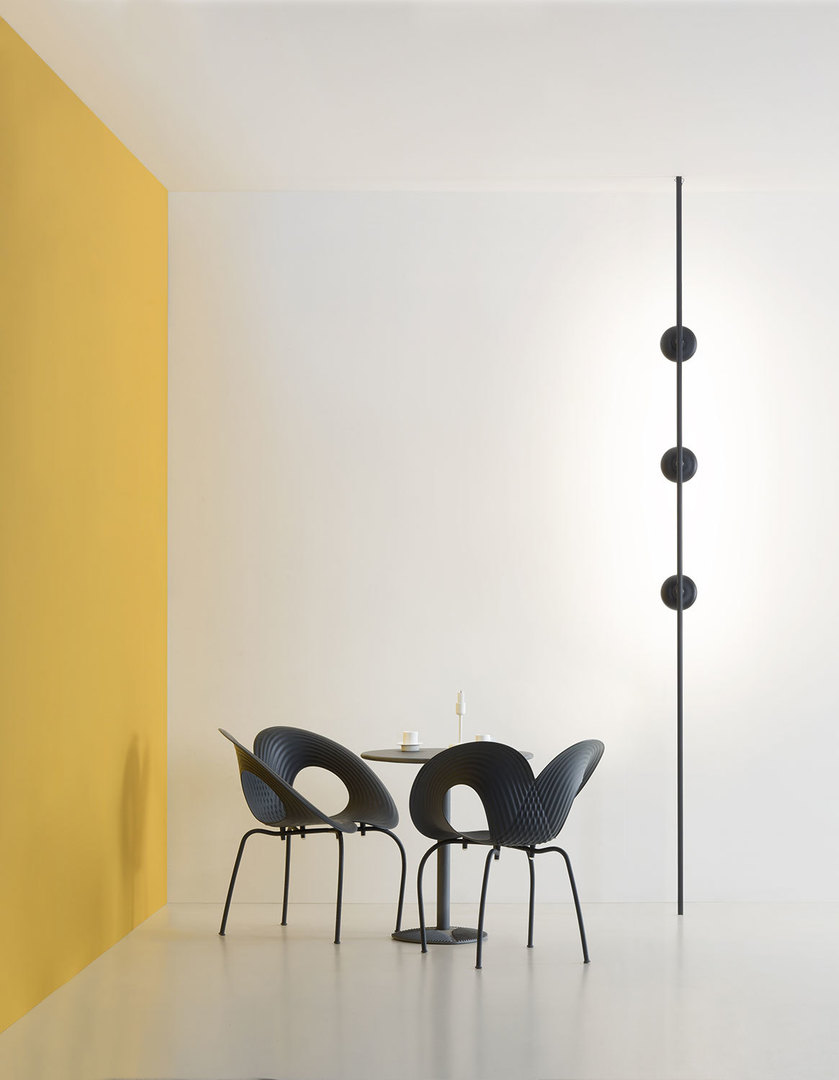

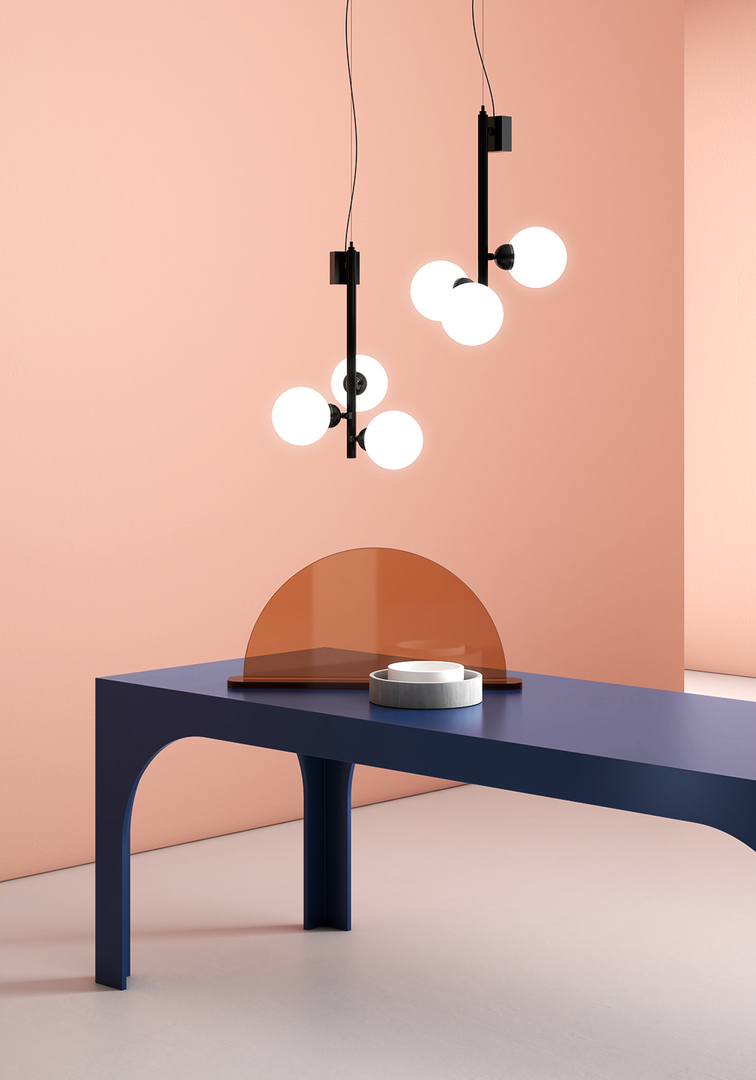

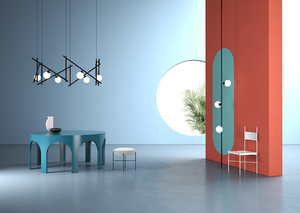

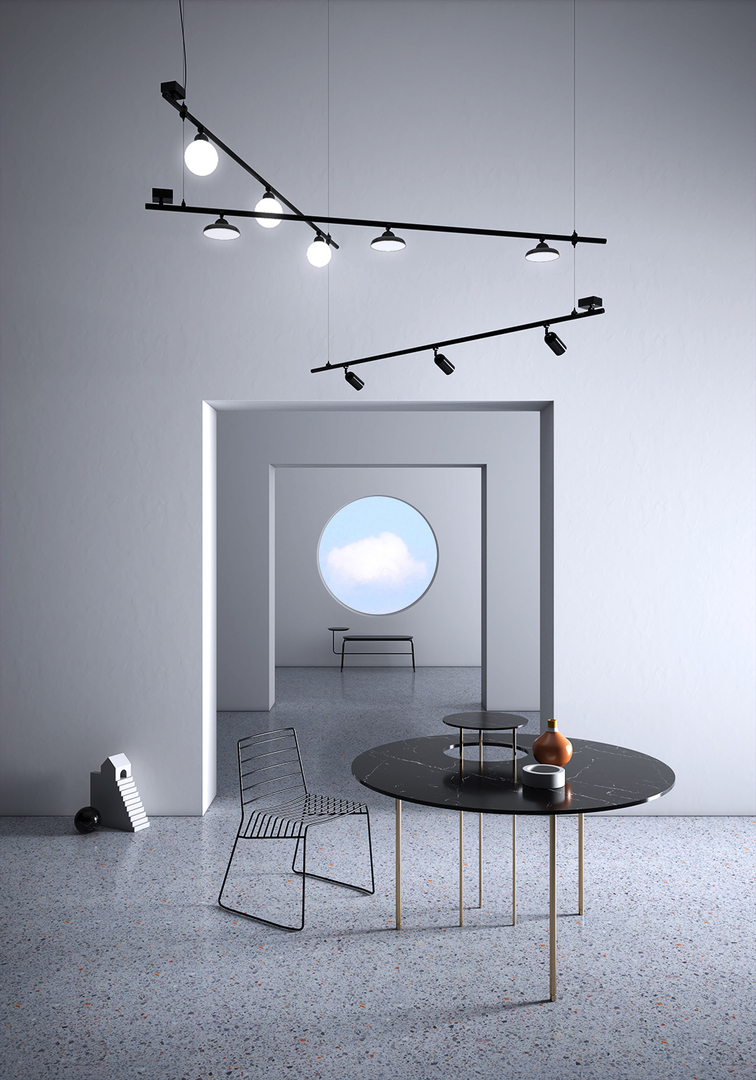

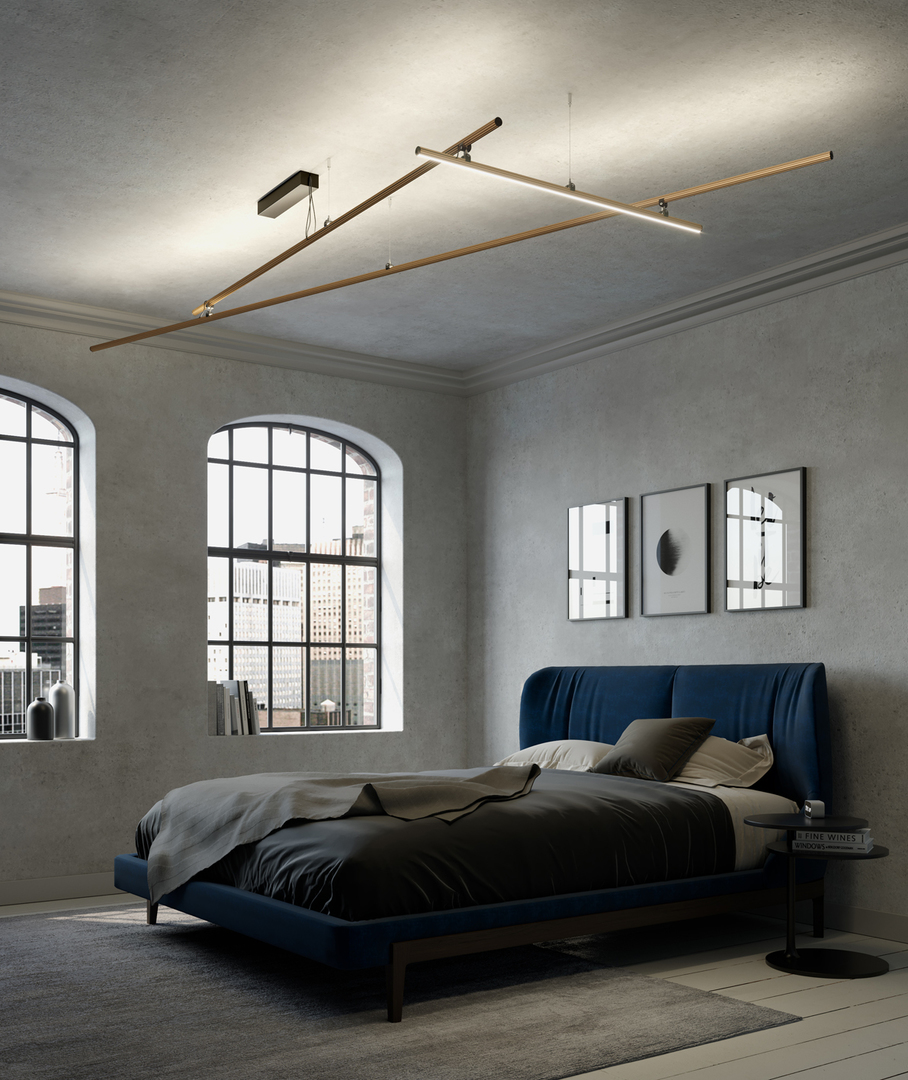

The manufacturer lists an LED strip, diffuser, power cable and two end caps. The bar operates on 24 V DC and must not be connected directly to a 230 V mains supply. Power-supply and mounting components need to be selected for the particular Freeline configuration. The globes, spotlights and extended arrangements in the photographs illustrate the wider system, not the contents supplied under this single bar's article code.
