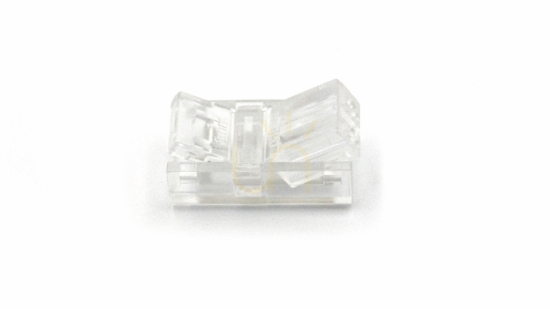

LED PRO A MINI connector 24-1100-84 makes a one-sided connection to a single-colour COB LED strip 8 mm wide. This transparent polycarbonate and copper component has two contacts and no wire. Its pins pierce the PCB, so the joint does not require soldering.
Strip compatibility
The manufacturer specifies 5, 12 or 24 V DC and a maximum current of 2 A. Before installation, compare the 8 mm width, single-colour layout and two contact pads with the strip in use. The connector is not a cable or a power supply.
Installation and size
The one-sided snap connector measures 18 × 10 × 5 mm and is supplied without a wire. An opener supports handling. Its compact body can be placed in a LUMINES System G profile. With an IP65 strip, the connection itself must be sealed to retain the protection rating.
