LED Strip OPTI 12V 2400 LED COB 10W/m 3000K CRI90 IP20 Warm White, 5 m reel

This is a five-metre reel of COB LED strip from LED Labs' OPTI series. Instead of individual diodes spaced several millimetres apart, a COB strip carries a phosphor layer running the whole length - it lights as a continuous, even line, with no visible points and none of the dotting a strip normally casts on a wall or inside a profile.

Why COB rather than SMD

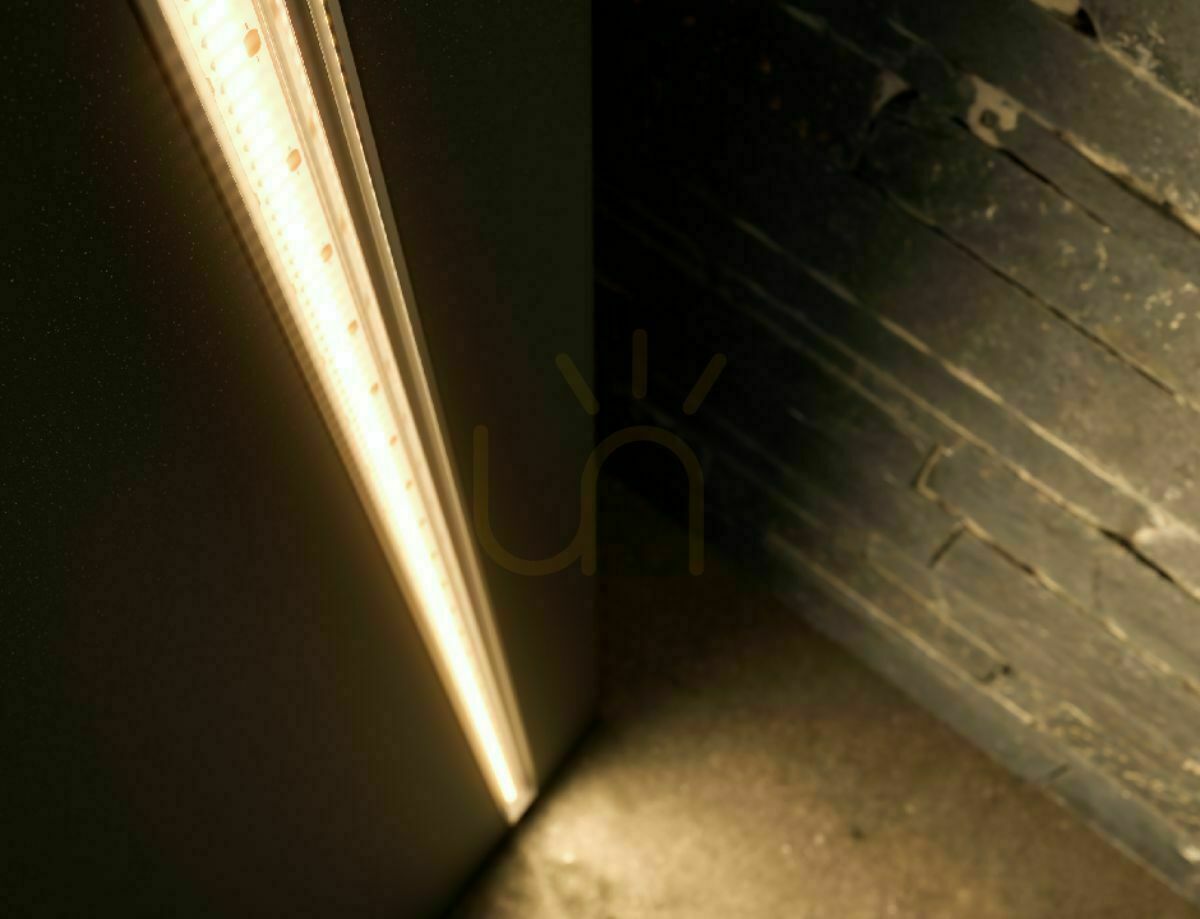

On an SMD strip the separate diodes are visible, and if the profile is shallow or the cover sits too close, a row of bright points reflects onto the wall. COB (Chip on Board) solves that physically: 480 tiny emitters per metre - 2400 across the reel - sit under one shared phosphor layer. The result is a line of light that can be built into a very shallow aluminium profile without a frosted diffuser. It shows in ceiling coves, under kitchen cabinets and in shadow-gap trims, where the strip is seen at an angle.

Light output

The strip gives 850 lumens per metre for 10 W, an efficacy of 85 lm/W. The whole reel is about 4250 lm - enough to light a kitchen worktop end to end or outline the ceiling of a medium room. At 3000 K the light is warm and calm, and colour rendering exceeds 90, which is still not standard in LED strip; the declared red component R9 is 42. At that CRI, wood, brick and fabric keep their real colour - which is why this series goes into furniture and display lighting rather than purely technical installations.

Supply and control

The strip runs on 12 V DC and needs a separate driver - LED Labs does not include one with the reel. A full reel draws 50 W, so the driver is chosen with at least 20% headroom: 60 W minimum at 12 V, that is 5 A. At 12 V the voltage drop over a long run is more pronounced than at 24 V, so feed a five-metre length from one end, and wire two such lengths in parallel to the driver rather than in series one after the other. Dimming is possible but only with a dedicated 12 V PWM controller - not with a 230 V wall dimmer.

Cutting and mounting

The strip can be shortened every 25 mm at the marked points - a fine enough pitch that fitting a given recess rarely calls for a compromise. It is 8 mm wide and 3 mm thick, so it goes into most standard aluminium profiles. The underside carries factory-applied double-sided Blue Tape; the surface must be degreased before sticking, and inside an aluminium profile the adhesive is a helper rather than the fixing. The carrier is PCB laminate with 2 oz copper - twice the thickness of cheap strip; heavier copper carries heat away better, which feeds straight into diode life.

Lifetime, sealing and warranty

The manufacturer quotes 35,000 hours to L70/B50 - meaning that after that time half the samples still hold at least 70% of initial output. At three hours a day that works out at roughly 31 years. The strip takes over 30,000 switching cycles and runs from -20 to +45 °C. IP20 means no moisture protection at all: this strip belongs in dry interiors only - for a bathroom, outdoors or a worktop beside a sink, pick the IP65 or IP65 HS version of the same series. The warranty is 3 years.

Variants

The same OPTI 12 V 2400 LED COB 10 W model comes in three colour temperatures: 3000 K (this version), 4000 K and 6500 K. The series also runs to IP65 and IP65 HS equivalents. The strip is sold in full five-metre packs.

Specification

• Manufacturer index: 16-2318-01, OPTI series
• EPREL number: 1279166, energy class G
• LED type: COB (Chip on Board), 480 diodes per metre, 2400 per reel
• Supply: 12 V DC
• Power: 10 W/m (50 W per 5 m reel)
• Luminous flux: 850 lm/m (4250 lm per reel)
• Efficacy: 85 lm/W
• Colour temperature: 3000 K, warm white
• Colour rendering: CRI ≥ 90 (R9 = 42)
• Ingress protection: IP20 - dry interiors only
• Strip dimensions: 8 mm wide, 3 mm thick
• Cut section: every 25 mm
• Backing: PCB with 2 oz copper, Blue Tape adhesive
• Lifetime: 35,000 h to L70/B50, over 30,000 switching cycles
• Operating temperature range: -20°C to +45°C
• Reel length: 5 m
• Warranty: 3 years (36 months)
