Lumifall Alcazar 543.BB Black Triple Recessed Downlight 3×GX5.3

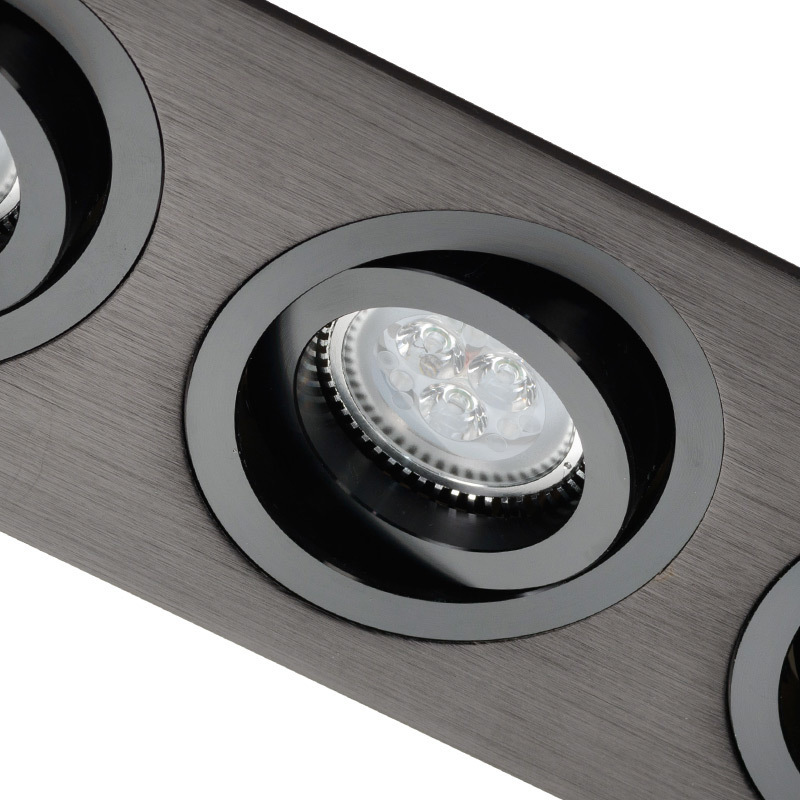

Lumifall Alcazar 543.BB is a black triple recessed fitting with a rectangular 260 × 92 mm outline. Its aluminium body combines a brushed surface with polished inner rings. The three tilting, removable rings are a visible part of the fitting’s construction.

Aiming three light points

The fitting rotates through 360° in the horizontal plane and tilts through 25°. This allows the three light points to be directed according to the selected lamps, whether the plan calls for general illumination or emphasis on particular parts of an interior.

Preparing the recess

Installation requires a 245 × 80 mm ceiling opening, so that measurement should be checked against the available void before purchase. Spring clips are used to seat and remove the fitting. This model has an IP20 protection rating.

Choose the lamps separately

Alcazar 543.BB is supplied without light sources. The manufacturer specifies three GX5.3 sockets, with GU10 available as an option; three compatible lamps therefore need to be selected before installation. The fitting weighs 385 g.
