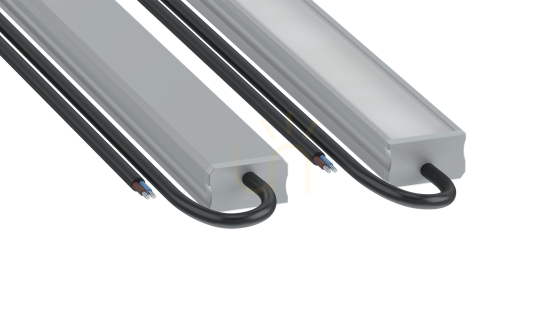

LUMINES A 24 V 20 W 3000 K IP68 Silver 2 m

LUMINES A ready-to-install LED kits include an A-series aluminum profile with LED strips, end caps, and power cables, sealed with polyurethane resin using SealFlow® technology. They are designed for surface mounting and creating decorative light lines.

The kits are sealed with polyurethane resin using SealFlow® technology, giving them an IP68 rating.. They are characterized by high durability and resistance to UV radiation and temperature fluctuations.

Power cables are routed out from both sides of the assembly through holes in the profile end caps, which makes it easier to connect the finished fixture to the electrical system.

The kits are available in anodized silver, in lengths of 2.02 m and 3 m, and in color temperature options of 2300 K and 3000 K.

The kit includes:

• gray end caps for the LUMINES A profile with a 5 mm hole
• OMY 2 × 0.75 black 230 V cable

The profile can be cut to any required length, and the dedicated CAPO A end caps ensure an aesthetically pleasing and airtight finish after cutting.



Table of photometric parameters

Profile Strip Initial CCT [K] CCT after sealing [K] Luminous flux at 0.5 m [lm] Luminous flux at 1 m [lm] Ra R9 A 16-2387-01 2300 2823 280 560 93 63 A 16-2389-01 3,000 3820 330 660 89 39
