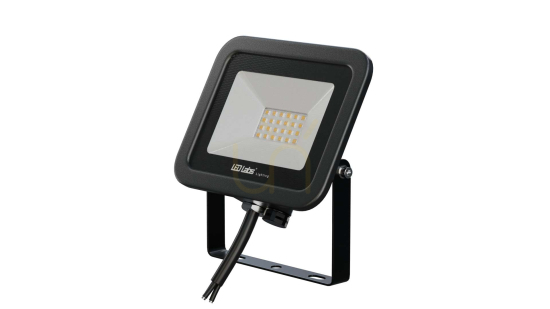

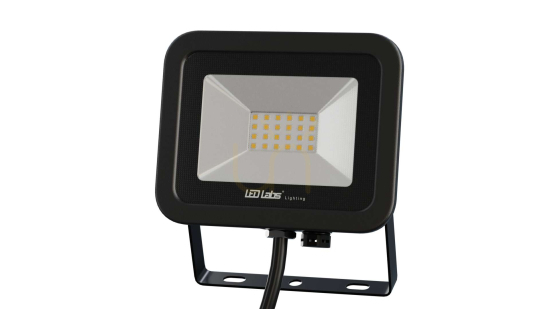

Lumines DRAGO is a compact LED floodlight with an integrated 20 W light source. Variant 17-0000-08 produces neutral-white 4000 K light; total luminous flux is 1800 lm and useful flux at 120° is 1600 lm.
Size and mounting
The housing measures 126 × 110 × 26 mm. The manufacturer specifies a mounting bracket, so the dimensions and intended lighting direction can be checked against the installation point before purchase.
Construction and electrical data
The housing is full die-cast aluminium and the ribbed cover is glass. The product card confirms IP65 ingress protection and IK07 impact resistance. The floodlight operates at 220–240 V, 50–60 Hz, with a power factor above 0.9 and stated efficacy of 90 lm/W.
DRAGO is sold as a complete product. Its catalogue card identifies an air-breather valve in the housing; this version has no PIR sensor.
