LUMINES DUAL 24 V 60 W 3000 K IP68 Silver 3 m

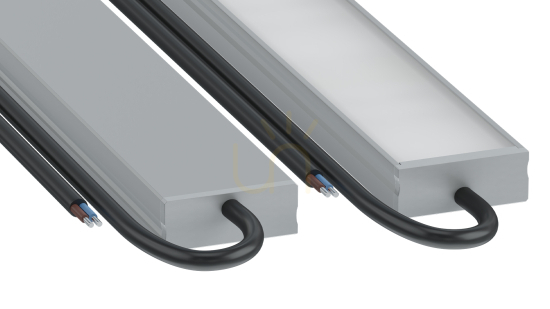

LUMINES DUAL LED kits include a DUAL aluminum profile with LED strips, end caps, and power cables, sealed with polyurethane resin using SealFlow® technology. They are designed for surface mounting using two parallel rows of LED strips.

The kits are sealed with polyurethane resin using SealFlow® technology, giving them an IP68 rating.. They are characterized by high durability and resistance to UV radiation and temperature fluctuations.

Power cables are routed out from both sides of the assembly through holes in the profile end caps, which makes it easier to connect the finished fixture to the electrical system.

The kits are available in anodized silver, in lengths of 2.02 m and 3 m, and in color temperature options of 2300 K and 3000 K.

The kit includes:

• gray 2-in-1 end caps for the LUMINES DUAL profile
• OMY 2 × 0.75 black 230 V cable

The profile can be cut to any required length, and the dedicated CAPO DUAL end caps ensure an aesthetically pleasing and airtight finish after cutting.



Table of Photometric Parameters

Profile Strip Initial CCT [K] CCT after sealing [K] Luminous flux at 0.5 m [lm] Luminous flux at 1 m [lm] Ra R9 DUAL 16-2387-01 2300 2784 605 1210 94 64 DUAL 16-2389-01 3000 3693 681 1362 90 43
