LUMINES FLEXA 24 V 20 W 3000 K IP68 Silver 2 m

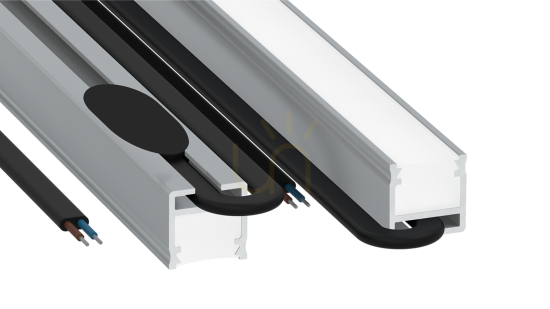

LUMINES FLEXA ready-to-use LED kits include a FLEXA aluminum profile with LED strips and power cables, sealed with polyurethane resin using SealFlow® technology. They are designed for surface-mounted or suspended installation.

The assemblies are sealed with polyurethane resin using SealFlow® technology, giving them an IP68 rating.. They are characterized by high durability and resistance to UV radiation and temperature fluctuations.

Power cables are routed from both sides of the assembly through the rear of the profile. The cable entry points are sealed with sealant, which ensures that the finished fixture remains watertight.

The kits are available in anodized silver, in lengths of 2.02 m and 3 m, and in color temperature options of 2300 K and 3000 K.

The profile can be cut to any required length.

The kit includes:

• OMYp / H03VVH2-F cable, 2 × 0.5 mm², black, 300/300 V



Table of Photometric Parameters

Profile Strip Initial CCT [K] CCT after sealing [K] Luminous flux at 0.5 m [lm] Luminous flux at 1 m [lm] Ra R9 FLEXA 16-2387-01 2300 2823 203 406 93 63 FLEXA 16-2389-01 3000 3819 261 522 89 40
