Magnetic LED Track Module Zambelis 22093 8W 3000K Sandy Black DALI 48V Curve 600 mm Promo Code - ZAM10 until the end of Oct 30

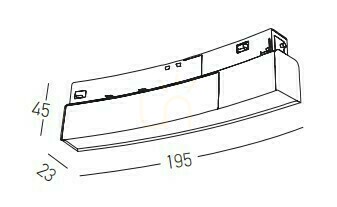

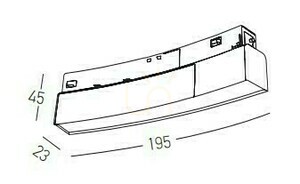

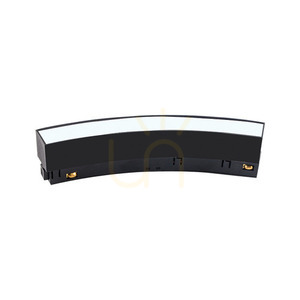

Zambelis 22093 is a curved LED module from the 48V Rounded Rectangle Magnetic System. The sandy-black aluminium housing runs 195 mm along the curve, 23 mm across and 45 mm high, with a white acrylic diffuser on the face. It is a linear flood fitting for a magnetic track, not a directional spotlight head.

Track, voltage and what is not in the box

The datasheet limits compatibility to the curved 600 mm magnetic track of this 48 V system. The connection is magnetic and no cable is supplied. This is not a head for a 230 V lighting track: the input is 48 V and the safety class is III. The track, a 48 V supply and DALI control are selected separately from the same family. No ceiling cut-out is required, because the module stays on the track.

The carton measures 5 × 8 × 22.5 cm and the gross weight is 0.2 kg. Only the module is inside. The 45 mm figure is the drop from the track, and the housing follows the 600 mm curve rather than a straight length.

8 W, 780 lm and a 120° wash

The built-in LED draws 8 W and the luminaire output is 780 lm. Colour temperature is 3000 K, CRI is 80, and SDCM below 5 is the stated colour tolerance between modules on one curve. A 120° beam spreads light broadly along the track. It does not cut a tight pool onto a picture or a worktop.

Dimming is DALI. Brightness follows a DALI controller on this system, not a phase-cut dimmer made for 230 V lamps. There is no bulb to change. Life is stated as L70B50 30 000 h, meaning output falls to 70% for half of the population after that time; the module itself is then what gets replaced.

Where the curve belongs

IP20 and class III keep the module in dry interiors. On a magnetic curve it can carry a wash of light through a living room, bedroom, dining area, corridor, office, hotel or shop. It is not a bathroom or outdoor fitting, and it is not a reading lamp: 780 lm at 120° lights the track run, not a page.

The plain black line and the narrow light diffuser stay within a minimalist outline. The manufacturer states a 5-year warranty. Repeating code 22093 keeps 3000 K and the beam the same along one curve.
