NORA 2464BL 10.3W DALI2 outdoor wall lamp IP65 black - Norlys

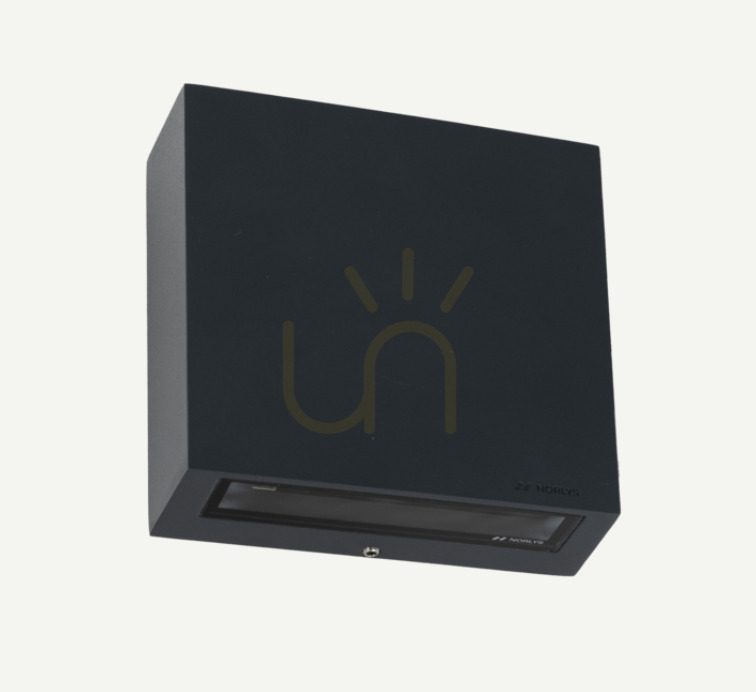

NORLYS NORA 2464BL is a black outdoor wall light with a square front and light directed upwards and downwards. Its powder-coated cast-aluminium body has transparent safety-glass covers over the light openings. The BL finish is black RAL 9005, rather than the graphite version.

A compact square for illuminating vertical surfaces

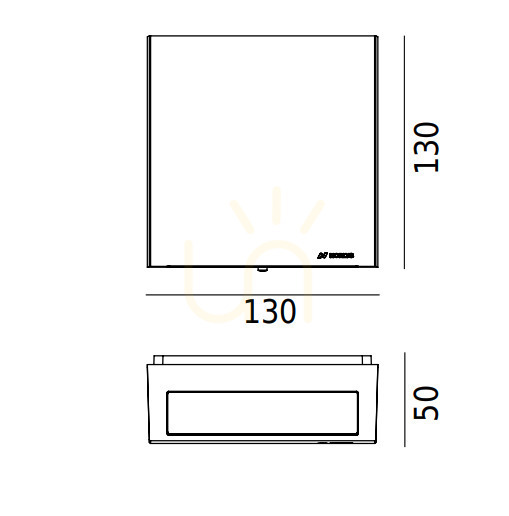

The fitting measures 13 cm in both height and width, with a depth of 5 cm. Compare these dimensions with the available wall area and the distance from a door frame before fixing its position. The plain front remains a small, undecorated square: light leaves through opposite sides, not through the whole front face. The space above and below the mounting point therefore matters as well as the footprint of the fitting.

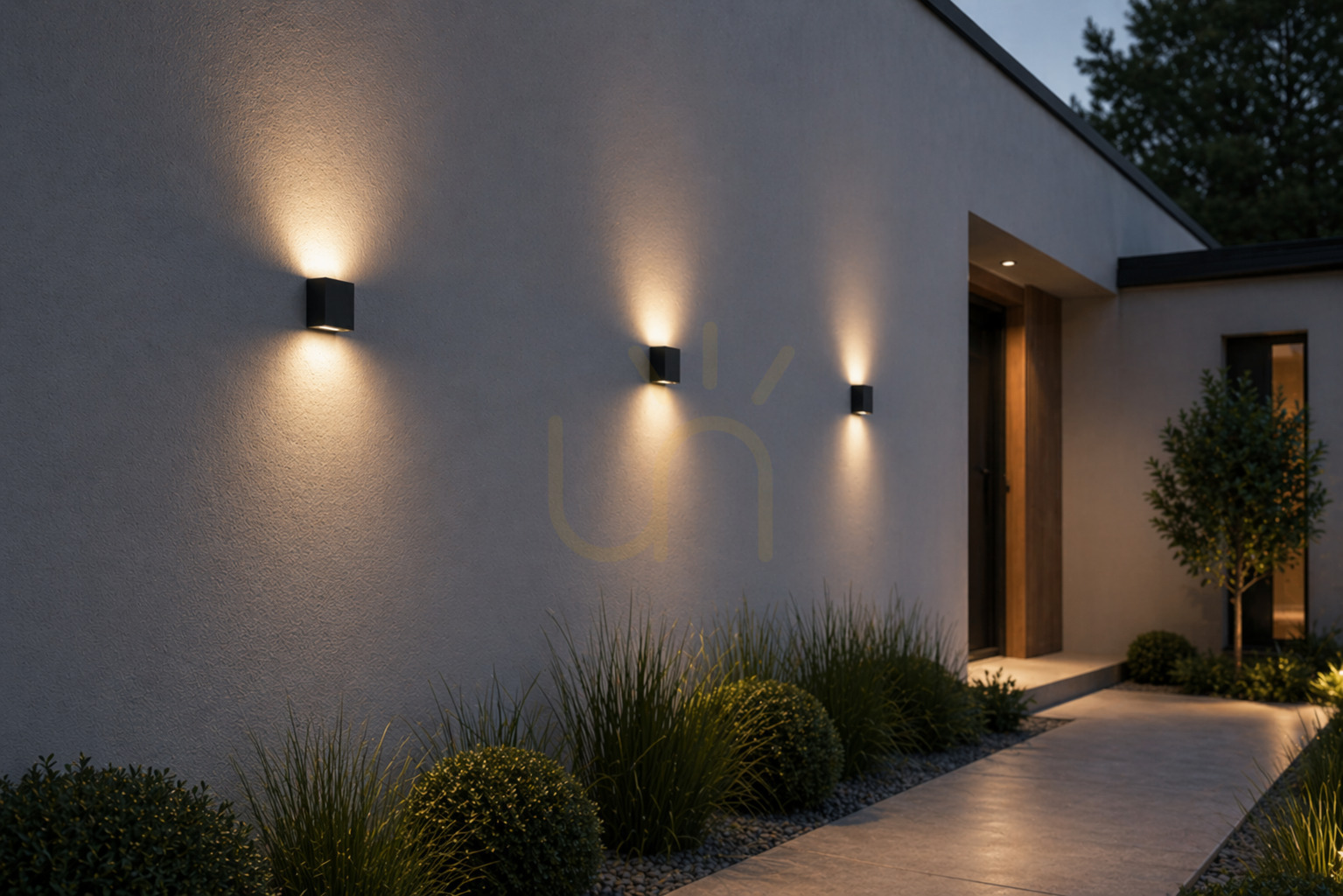

This arrangement suits facades, terrace or balcony walls and masonry boundary walls. It can also illuminate wall surfaces at hotel or restaurant entrances. Straight proportions and a black surface support modern, modernist and minimalist schemes. Its role is to light a vertical surface rather than replace a fitting intended to illuminate an entire garden broadly.

Warm 3000 K light with DALI2/TD control

Two LED modules provide warm-white light at 3000 K. The complete fitting consumes 10.3 W and delivers a luminaire output of 793 lm; that is not the output of one individual module. Transparent glass distinguishes this version from the satin-covered alternatives. When combining several fittings, compare the cover and colour temperature as well as the NORA family name.

The driver supports DALI2/TD control. Brightness adjustment needs a compatible control arrangement; a dimmable designation does not mean that any conventional wall dimmer will work with this fitting.

Installation and replacement by qualified personnel

IP65 and IK09 describe the enclosure's protection against dust, water and mechanical impact. The manufacturer's operating temperature range is −20 to +45°C. Installation and servicing require qualified personnel working to the supplied instructions. The mounting uses two 5 mm holes with a spacing of 63 × 112 mm. Both the LED modules and control gear can be replaced by professional service personnel; they should not be treated as ordinary bulbs for a routine user replacement.
