NORLYS Lillehammer 2263CB Copper Brown LED Outdoor Wall Light 9 W 2700 K DALI2

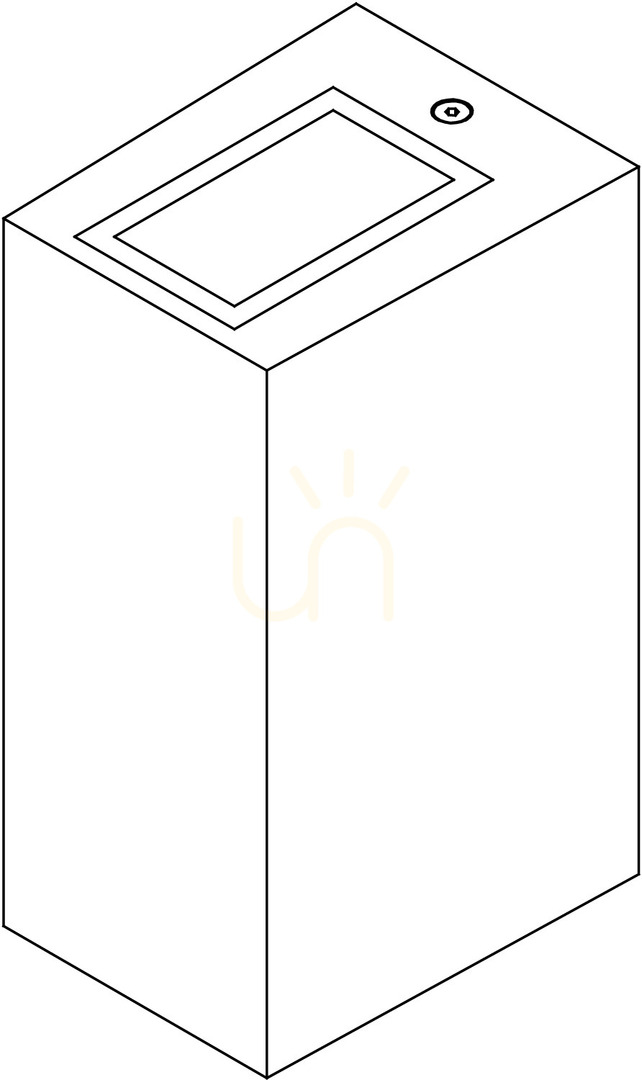

NORLYS Lillehammer 2263CB is a Copper Brown LED outdoor wall light. Its compact body measures 18.5 × 11 × 8 cm and is designed for wall mounting. The optic sends light both upward and downward at a 4° angle, creating a sharply defined effect on a façade rather than a broad wash of light.

Light and control

The integrated 9 W LED provides 26 lm at 2700 K. This version supports DALI2, so the planned control equipment and installation should be checked for compatibility with that system before selection. It operates on 220–240 V. The light source is built into the fitting; a separate bulb with a socket is not selected for this model.

Wall-mounted construction

The housing is made from painted aluminium casting and the optical part uses clear glass. NORLYS specifies a silicone gasket, IP65 protection and IK08 mechanical impact resistance. Two 5 mm mounting holes are set 45 × 130 mm apart, measurements that should be compared with the prepared position on the façade. The narrow two-way beam makes the wall surface part of the final lighting composition.

Data for this version

For this version, the manufacturer specifies CRI 80, SDCM3 colour consistency and a power factor of at least 0.88. The stated LED lifetime is 52,330 hours. Upward light output is listed as 50%, consistent with the two-direction distribution of this optic. These figures apply to model 2263CB rather than to other outputs or colour temperatures offered within the Lillehammer family.
