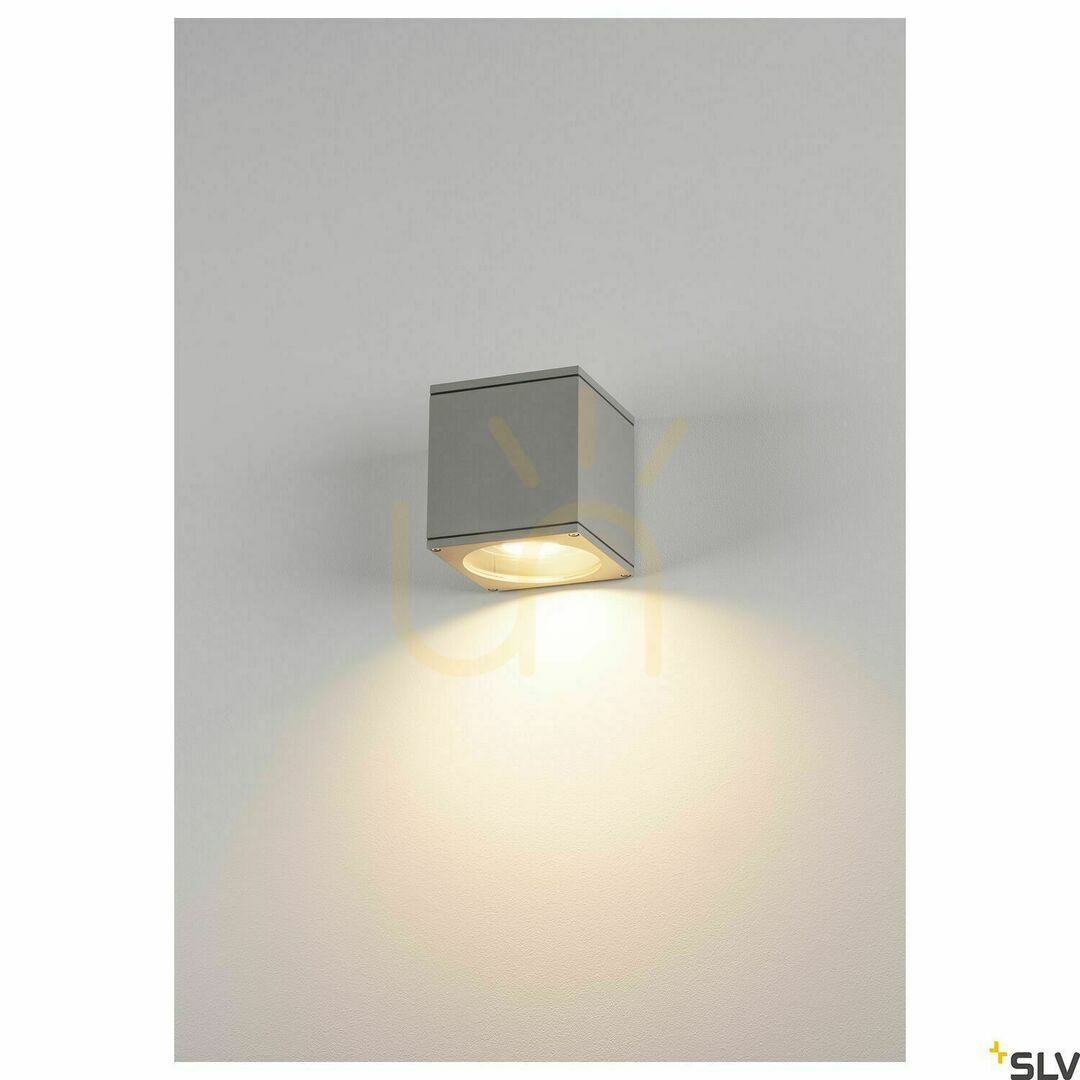

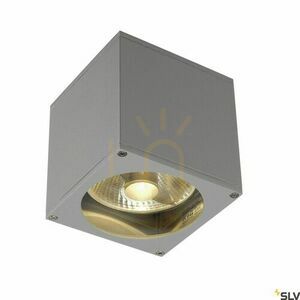

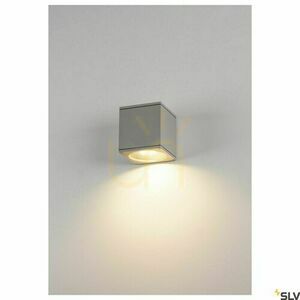

BIG THEO WALL 229564 is a cube-shaped outdoor wall light measuring 13 × 13.5 × 13.5 cm, in silver-grey. The housing is aluminium and a glass pane covers the lamp from below. Light leaves through the bottom and casts a downward streak on the wall.
Which lamp, and how much light
The fitting has one GU10 socket intended for a QPAR111 reflector lamp of up to 75 W. The lamp is not included — the manufacturer recommends its LED QPAR111 GU10 lamp rated 12.5 W, 3000 K and Ra 90 (item no. 1005278).
The width of the streak on the wall and the colour of the light depend on the lamp you choose: a 10° reflector gives a narrow, crisp beam, while a wider-angle lamp gives a larger, softer pool. 3000 K is warm white.
Connection and outdoor use
The light connects directly to 220–240 V mains with no transformer. It is protection class I, so the protective earth must be connected. IP44 means protection against water splashing from any direction and against solid objects larger than 1 mm, so the fitting can work on a façade exposed to rain. Its IK02 impact rating is low, so it should hang where nothing will knock it.

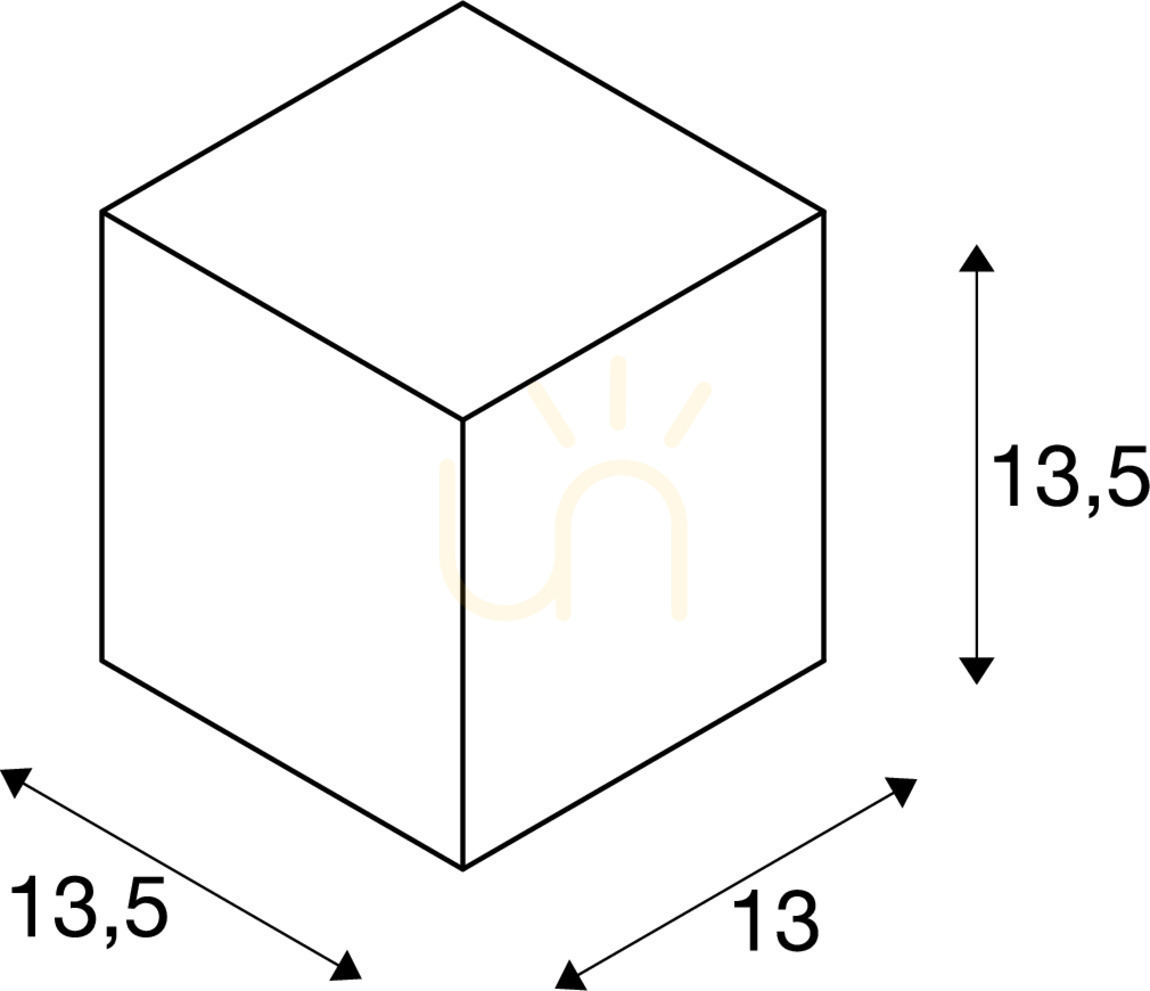

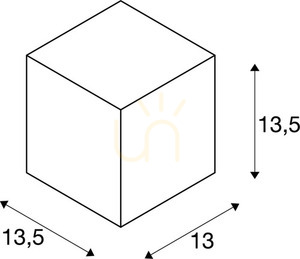

The fitting weighs 1.02 kg. It is 13 cm wide, 13.5 cm high and 13.5 cm deep — the last figure tells you how far it stands out from the wall.
Form and series
The smooth, box-shaped body without ornament suits modern architecture. The BIG THEO series also includes other wall and ceiling lights with different sockets, so several fittings of the same form can be combined on one building.
