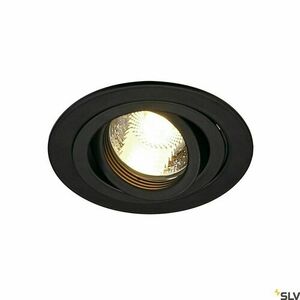

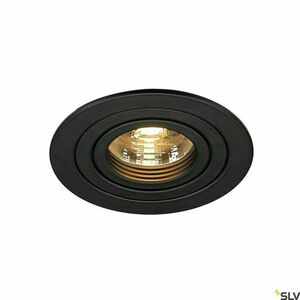

SLV NEW TRIA 1 113490 is a round black recessed fitting for one replaceable GU10/QPAR51 lamp. It is prepared for direct connection to 230 V AC; the light source is not included. The fitted lamp may have a maximum rating of 50 W.
Measurements to check before installation
The visible fitting diameter is 9.3 cm and the required cut-out diameter is 7.8 cm. SLV specifies a cut-out depth of 12.5 cm, so this measurement should be checked against the space above the ceiling before preparing the opening. This version is designed for a round cut-out.
Aiming the light
The built-in reflector can swivel and tilt, allowing the direction of the light cone to be adjusted after installation. Light colour and brightness depend on the separately selected compatible GU10 lamp. Because the source is replaceable, no fixed colour temperature or lumen output is attributed to the fitting itself.
Fitting into the ceiling
NEW TRIA 1 is supplied with pre-installed clip springs for locating the fitting in the prepared opening. The springs do not replace checking the installation dimensions or making a correct electrical connection. Its round black trim remains a restrained visible detail in the ceiling plane. Article 113490 and EAN 4024163137089 identify this exact single-lamp version.
