Recessed Downlight SLV PATTA-I White 7.3W Dim to Warm IP65 1002102

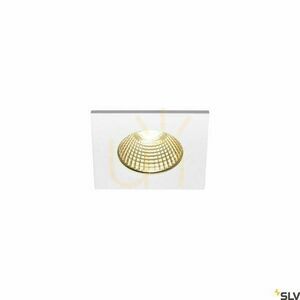

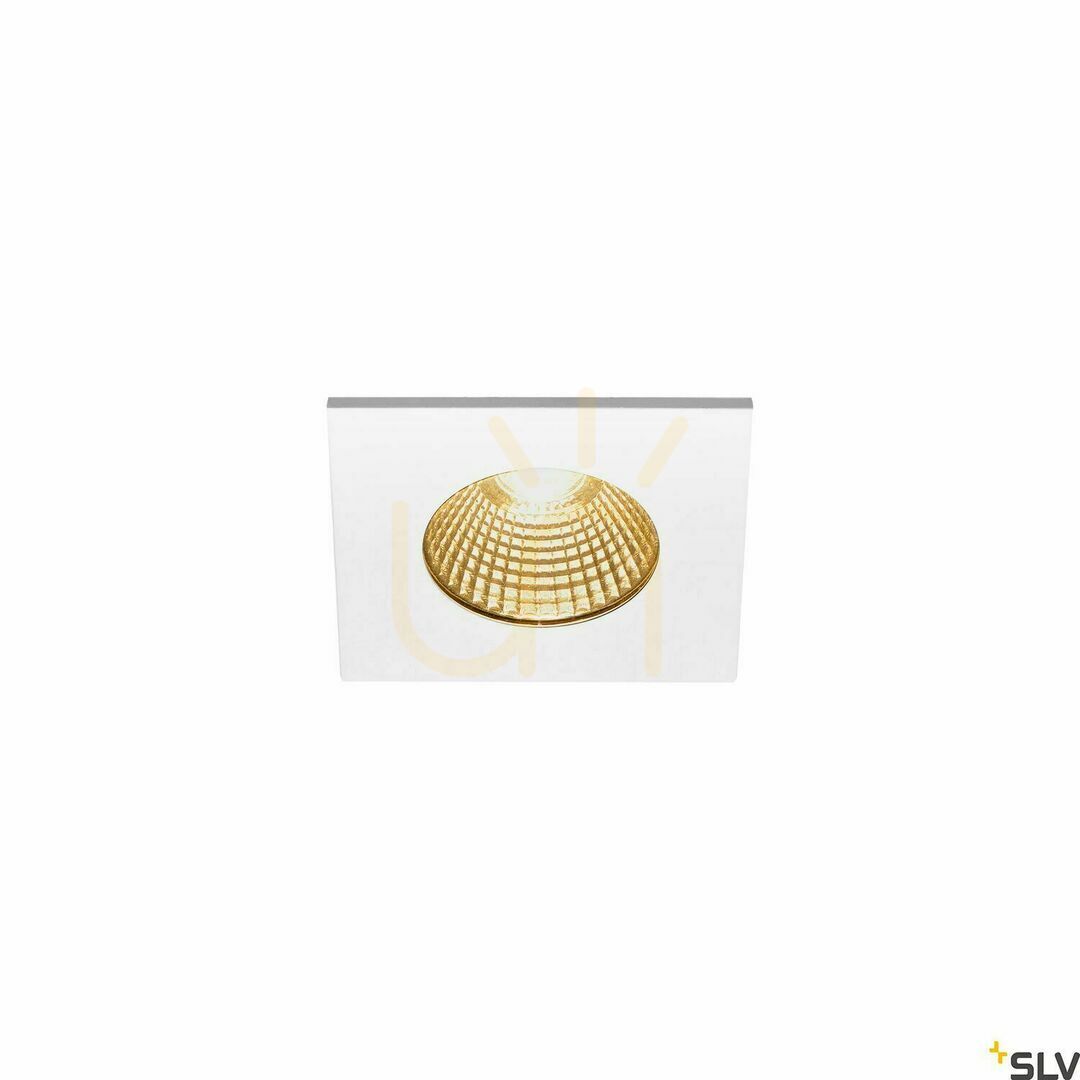

PATTA-I 1002102 is a recessed ceiling luminaire with a permanently built-in LED. What stays visible is a white square trim 8 cm on a side, holding a faceted reflector. It combines Dim to Warm colour shifting with an IP20/IP65 protection code.

Cut-out and ceiling

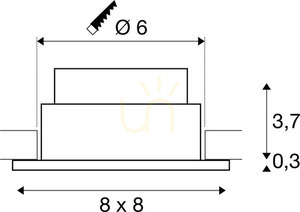

The cut-out is round and 6 cm across, and the installation depth is also 6 cm — that much clear space has to remain above the ceiling board for the body to fit. The 8 cm square trim covers the edges of the opening, and the whole fitting is 4 cm tall.

The manufacturer intends it for ceilings up to 20 mm thick. Spring clips, visible in the photo of the set, hold it in place.

The light it gives

The LED draws 7.3 W and works in Dim to Warm mode: at full output it gives 440 lm at 3000 K, and dimmed it goes down to 44 lm at 1800 K, a warmth close to candlelight. Dimming calls for a phase dimmer — the manufacturer allows both leading and trailing edge control.

A colour rendering index of Ra 95 means colours under this light look almost as they do in daylight, which counts at a mirror and over a worktop. The 38° beam lights a clearly drawn area beneath the fitting rather than a whole room, so several of them are set out at intervals.

What is in the box and where it may go

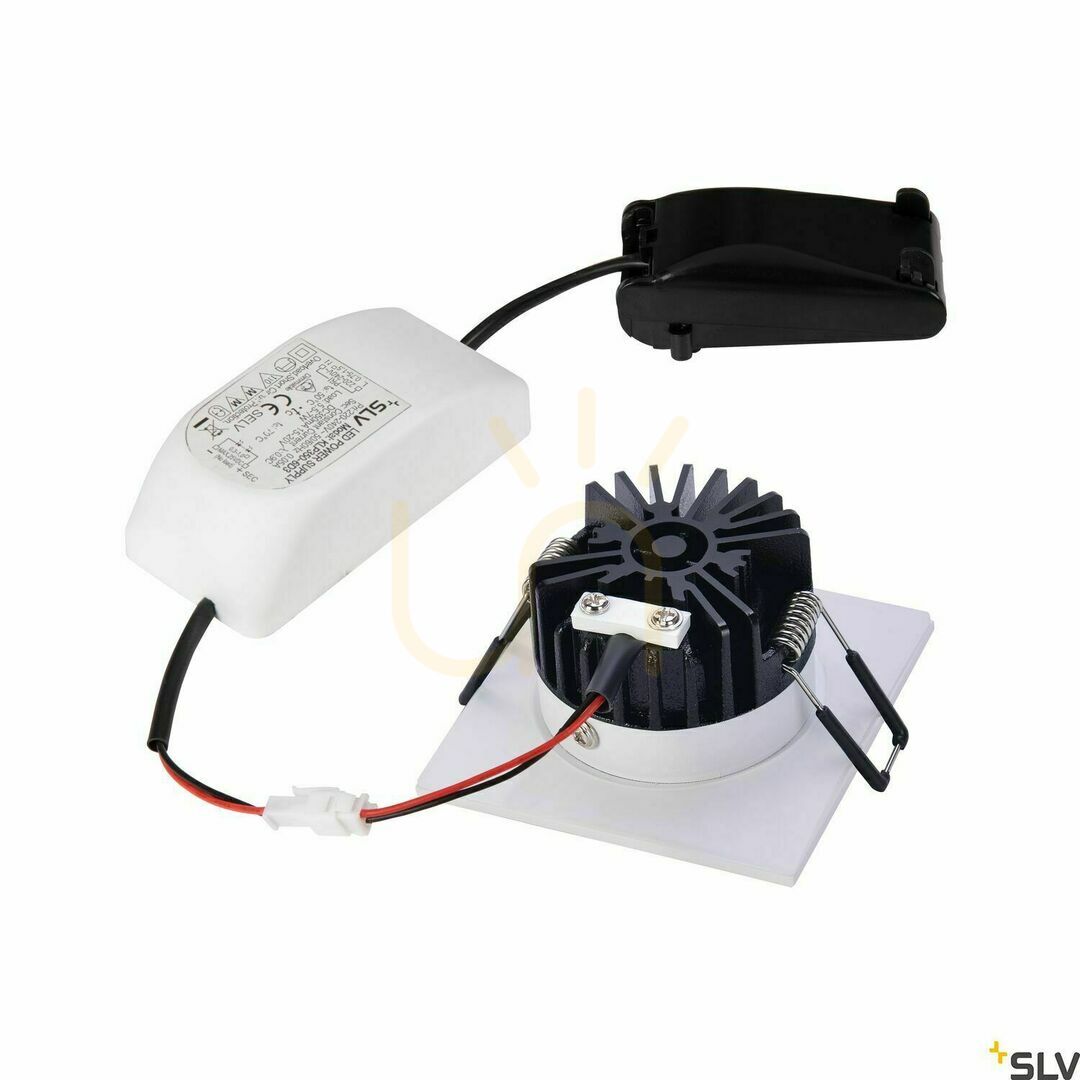

Besides the luminaire itself the set holds an LED driver and a connection box with its cable, so the fitting wires straight into 220–240 V mains with no driver to buy separately. The LED is not user-replaceable: the manufacturer provides for replacement by a service technician only, and states a rated life of 30,000 hours.

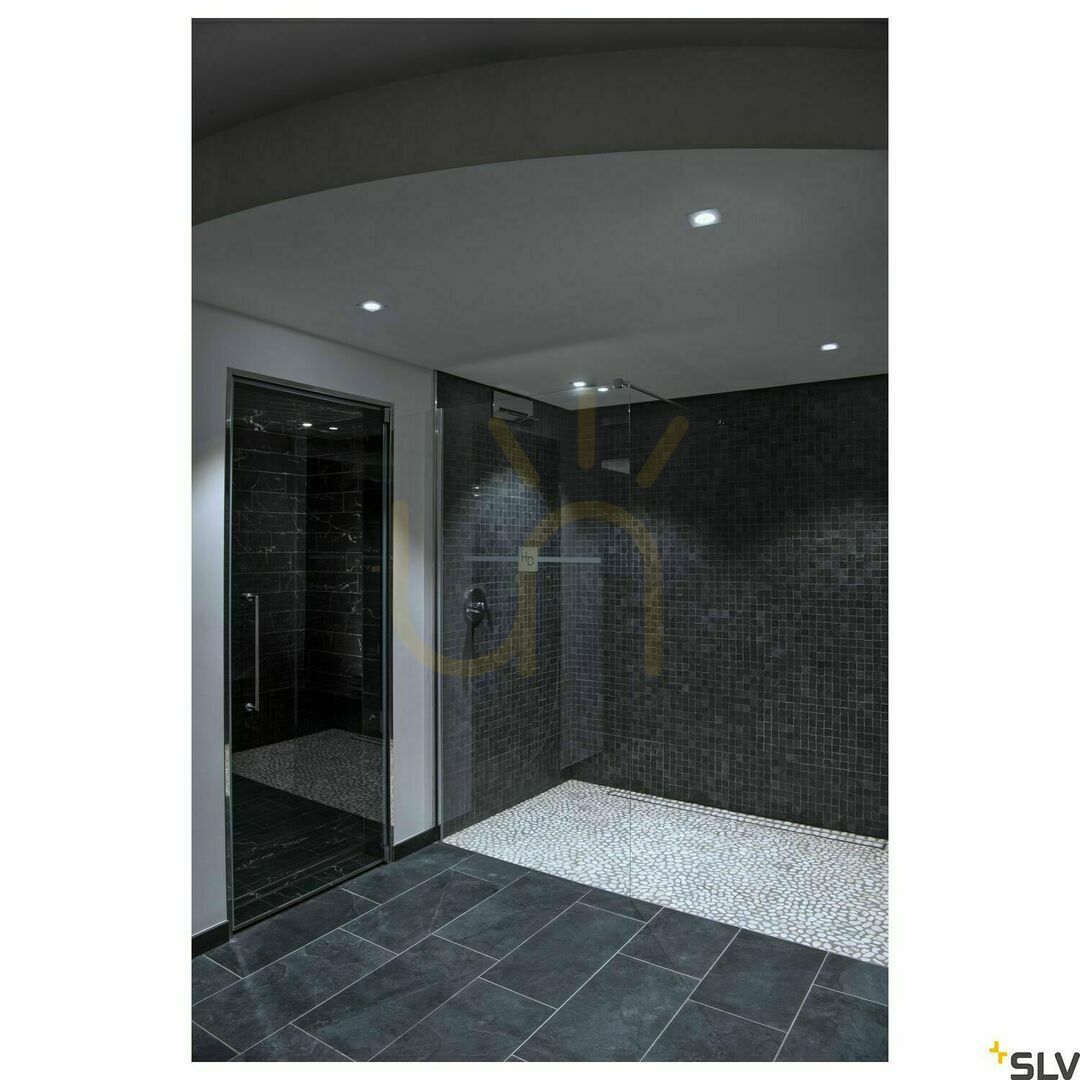

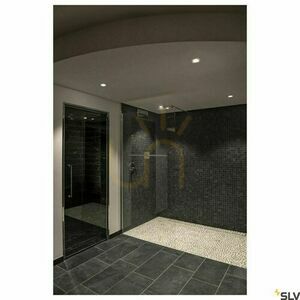

The IP20/IP65 code is what the manufacturer bases its approval on for outdoor use and for damp rooms. The body is aluminium and the cover glass; impact resistance is given as IK 02, that is 0.2 joules.
