V-TAC 12W LED CREE CHIP downlight surface panel round 167x30mm VT-60012CCT 1320lm 6 year warranty

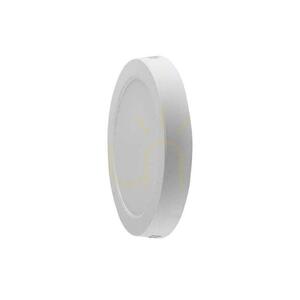

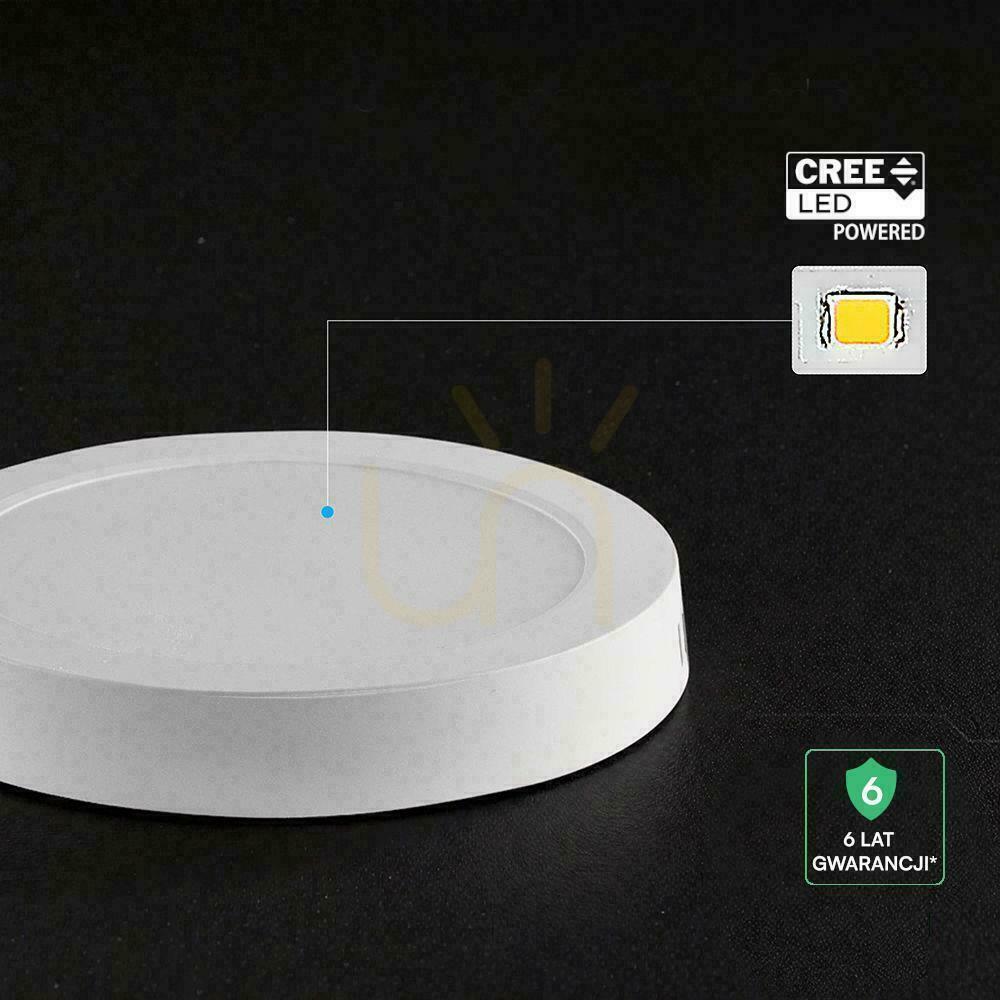

The V-TAC surface panel is a round LED fixture in a white plastic housing, mounted directly on the ceiling surface without cutting a mounting hole. It measures 167.4 mm in diameter and 30.7 mm in height, with a permanently integrated CREE light source.

How big the panel is and how it mounts

The 167.4 mm diameter is roughly the size of a large dinner plate — that is how much ceiling space the panel takes up. The 30.7 mm height lets it be screwed onto a flat surface without preparing a mounting hole first, unlike recessed versions. It weighs 0.2 kg. The AC 220–240 V, 50/60 Hz supply lets it run on the minor variations found in different local mains.

How much light it gives and in what colour

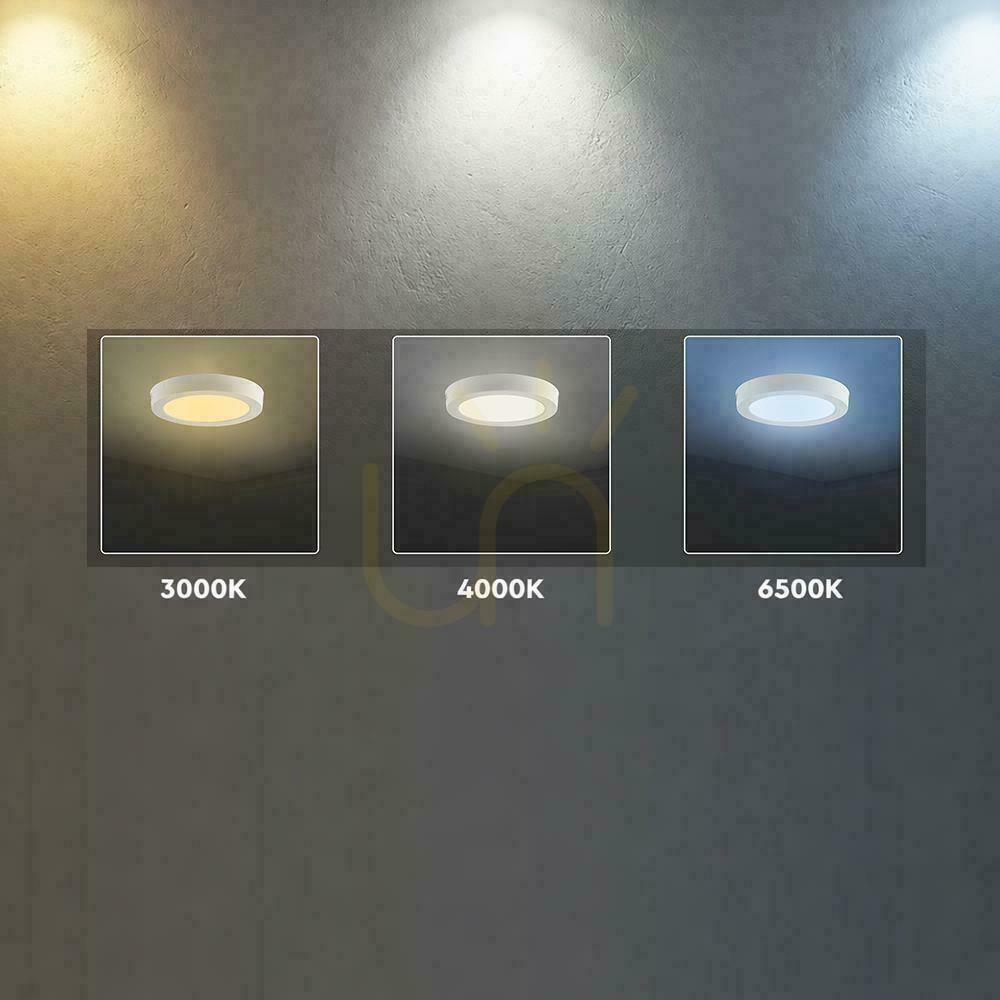

Drawing 12 W, the panel outputs 1320 lm, which at an efficacy of 110 lm/W puts it closer to general room lighting than to accent lighting. The colour temperature can be switched between 3000 K (warm white), 4000 K (neutral white) and 6500 K (cool white, close to daylight) — which one to pick depends on the room. A 120° beam angle spreads the light widely beneath the fixture, and a colour rendering index of Ra 80+ gives solid, though not fully accurate, colour rendering. The LED source is permanently integrated and cannot be replaced; the manufacturer states a lifespan of 27 years at 3 hours of use per day and more than 15,000 on/off cycles.

Where it is intended to be used

The manufacturer lists this panel for retail spaces, as general lighting for shop interiors.
