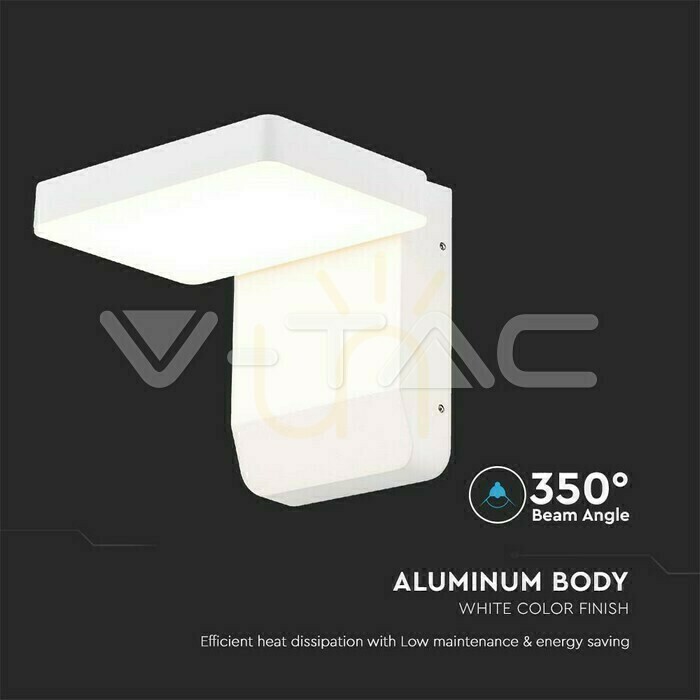

V-TAC VT-11020, SKU 2942, is a white exterior wall light with an aluminium body and a rotating flat head. The rectangular wall section and projecting head form two connected planes. It has an integrated LED light source, so it does not take a separate screw-in bulb.
Warm light with an adjustable direction
The source draws 17 W and produces 3000 K warm-white light. The current manufacturer's page and EPREL declaration specify 2520 lm. The fitting is not dimmable. Choose this version for a fixed light colour and brightness rather than selecting those properties through a replaceable bulb.
The head can rotate to change the direction of the light. Adjusting its position does not adjust brightness. CRI 80 describes general colour rendering, while the declared red rendering index R9 is 8. This source is therefore not intended for faithful presentation of strongly saturated red materials.
Size and wall installation
The manufacturer's dimensions are 178 × 170 × 160 mm. The drawing shows 178 mm width,170 mm for the vertical extent of the complete arrangement and 160 mm for the vertical wall section. Compare the outline with the space beside an entrance or on a façade; the wall section and the overall shape have different height measurements.
The fitting connects to a 220–240 V supply. The wiring diagram requires a protective earth conductor. Its LED source is not replaceable; the instructions call for replacing the whole fitting when the source reaches the end of its life. The stated 20000 operating hours are not a guarantee of a particular number of years.
Aluminium and outdoor conditions

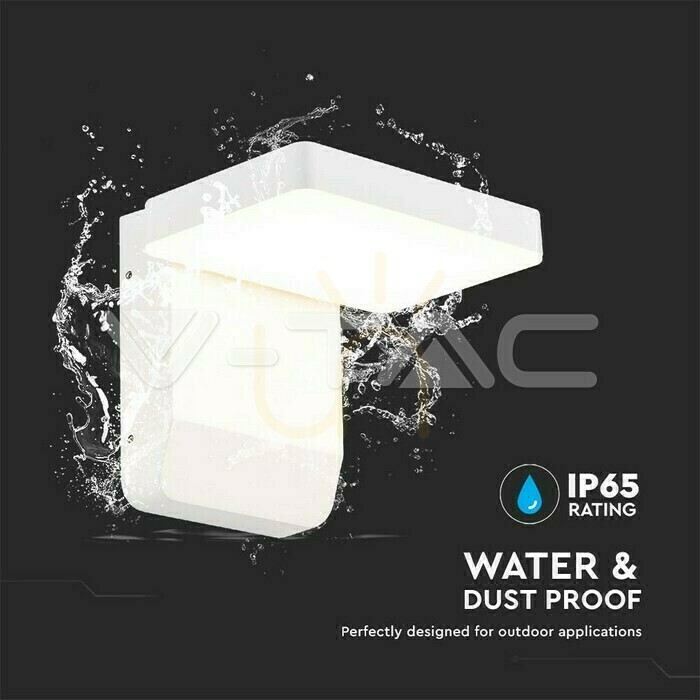

IP 65 provides protection against dust and water jets, rather than immersion. The manufacturer specifies an operating range of −20 to +45°C and residential, hotel and restaurant applications. White aluminium, flat surfaces and an absence of ornament give the fitting a modern, minimalist form. Choose a mounting position that accommodates its outline and the direction of the adjustable head.
