V-TAC VT-60018RD-S surface LED panel, 18 W 1980 lm 4000 K, round Ø216 mm, white, 5-year warranty

The VT-60018RD-S is a round, surface-mounted LED panel measuring 215.6 mm across and 30.8 mm deep. It screws onto a finished ceiling — no cut-out and no void above the slab — so it suits concrete or otherwise inaccessible soffits.

Samsung LEDs and backlit construction

Light comes from Samsung SMD diodes in a backlit layout: the LEDs sit behind the diffuser rather than around the edge. At 18 W the panel delivers 1980 lm (110 lm/W) in a fixed 4000 K neutral white — cooler than 3000 K, without the blue cast of 6500 K. Colour is not switchable, and the luminaire is not dimmable.

Figures from the EPREL register

The model is listed in the EU EPREL database as 1994791 (manufacturer identifier 78771). The register confirms energy class E, CRI 80, R9 = 15, flicker Pst LM 1.0, stroboscopic SVM 0.4 and colour consistency SDCM 6. Useful flux is given for a 360° sphere — a non-directional light source (NDLS). Supply is AC 220–240 V, 50/60 Hz, with a permanent L/N connection.

Technical data

• Model: VT-60018RD-S (SKU 78771); EAN 3800170224049
• Type: round surface LED panel, backlit

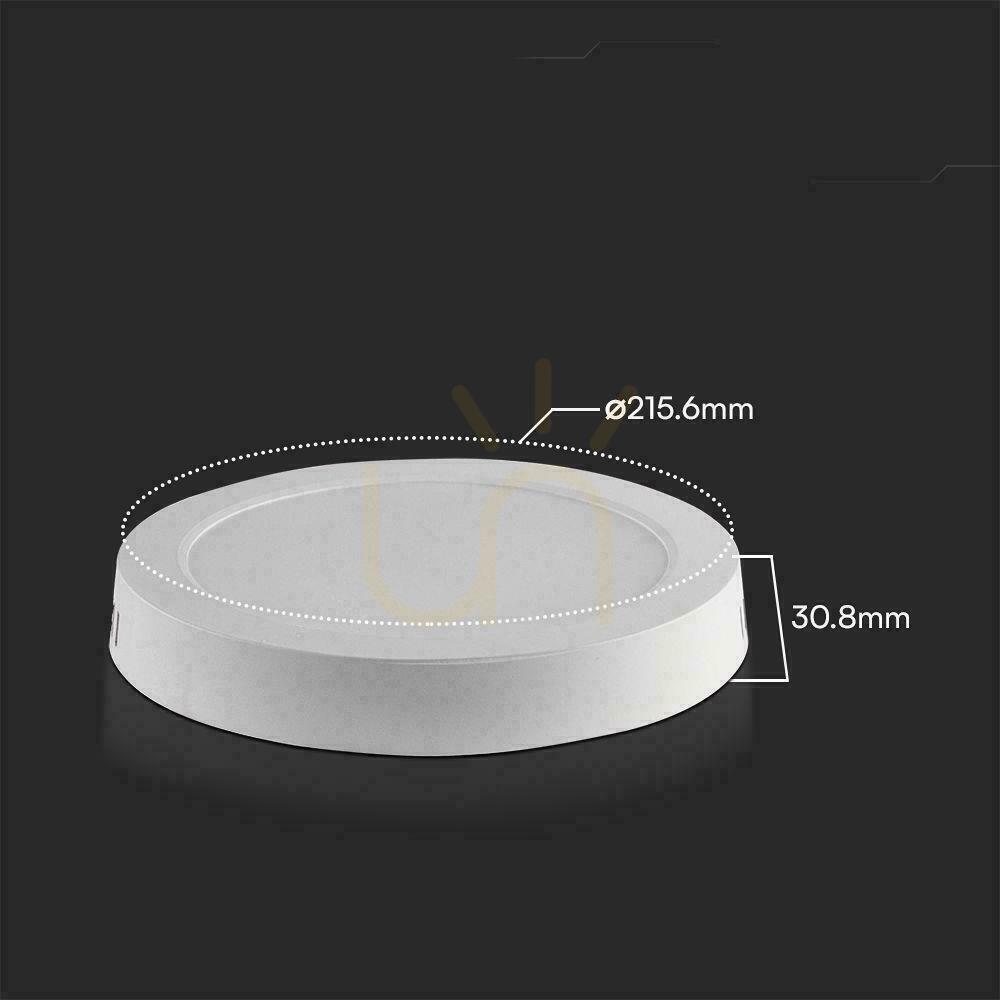

• Size: Ø 215.6 mm, height 30.8 mm
• Power: 18 W; flux: 1980 lm; efficacy: 110 lm/W
• Colour: 4000 K (neutral white), fixed
• Colour rendering: CRI >80 (R9 = 15); SDCM 6
• Energy class: E; EPREL 1994791
• Dimming: none
• Supply: AC 220–240 V, 50/60 Hz; L/N terminals
• Lifetime: 20,000 h (about 18 years at 3 h/day)
• On/off cycles: >15,000; start: 0.001 s
• Operating temperature: −20 to +45 °C
• Ingress protection: IP20 — dry interiors
• Body: white plastic
• Weight: 0.29 kg
• Certificates: CE, EMC, RoHS
• Warranty: 5 years

Where it belongs

Intended for general indoor lighting in offices, kitchens, corridors and retail rooms. IP20 rules out bathrooms and outdoor use. More than 15,000 switching cycles make it usable on a motion-sensor circuit. The LED source is built in, so the five-year manufacturer warranty matters more than it would on a fitting with a replaceable lamp.

About the brand

V-TAC is a European LED lighting supplier. The figures for this model can be checked independently in EPREL under 1994791.
