V-TAC VT-81003 white CREE LED ceiling light 12 W 1100 lm CCT with PIR sensor 25 cm

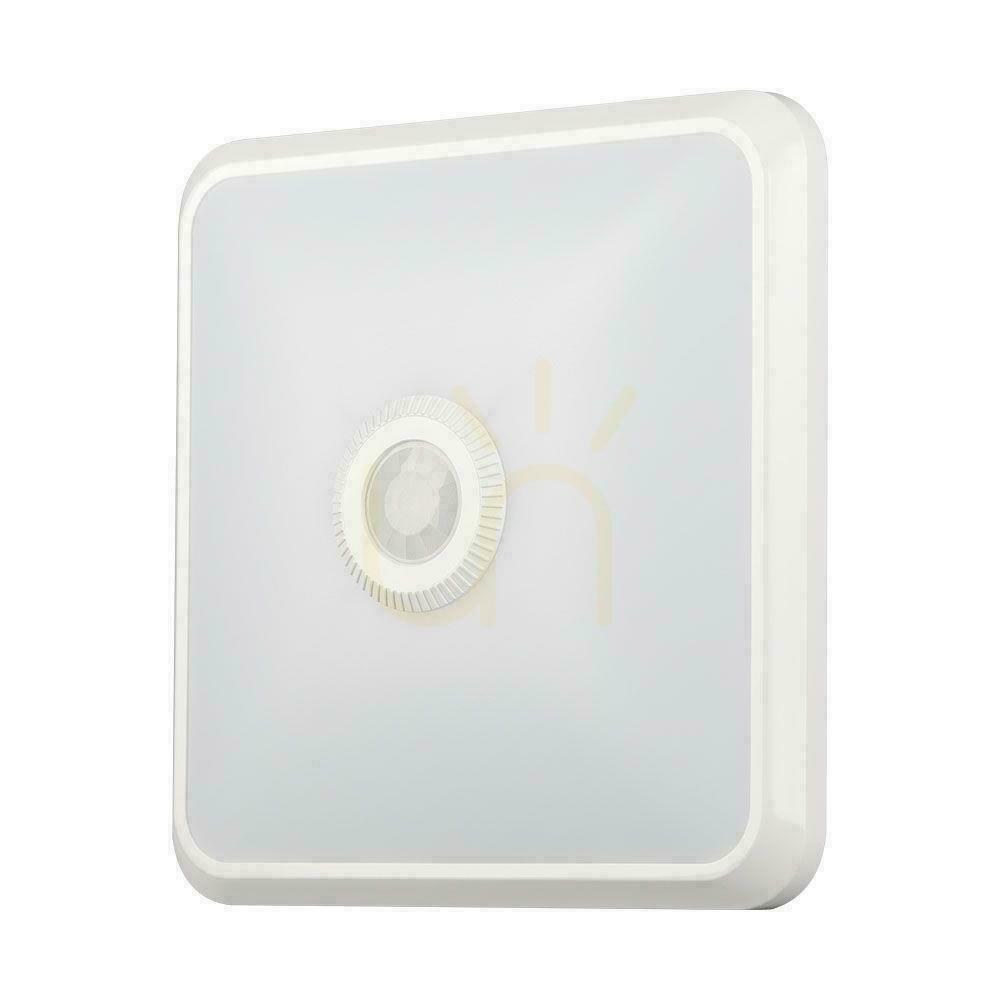

V-TAC VT-81003, SKU 234196, is a white square LED ceiling light with a central PIR motion sensor. Its body measures 25 × 25 × 6 cm, while an integrated 12 W CREE module produces 1100 lm. Three white-light settings, a broad 120° beam and automatic activation suit corridors and other dry indoor areas.

Three CCT settings

The fitting provides 3000 K, 4000 K and 6500 K. The selection is made on the lamp during configuration, rather than being continuous colour tuning through an app or remote control. Output of 1100 lm spreads over 120°, and CRI above 80 supports standard differentiation between colours. The integrated source is rated energy class F and has a declared service life of 25,000 hours.

360° PIR detection

The sensor covers 360° and detects movement at up to 6 m when the temperature is below 24°C. V-TAC specifies a detected movement speed of 0.6–1.5 m/s and an installation height of 2.2–4 m. The hold time can be adjusted from approximately 10 s ±3 s to 3 min ±30 s. Its ambient-light threshold ranges from below 3 to 2000 lx. These controls should be tuned after installation to suit the particular corridor or room.

PC enclosure, IP20 and IK10

The white enclosure is made from polycarbonate. IP20 limits use to dry interiors and provides no water protection. IK10 describes the enclosure's tested mechanical impact resistance but does not replace secure installation. Operating temperature ranges from -20 to 40°C, and the product is rated for more than 10,000 switching cycles. The exact item weighs 0.73 kg.

Supply and installation

The ceiling light operates at 220–240 V and 50/60 Hz. Its LED source and motion sensor are built in, so no bulb or separate detector is required. A qualified electrician should install it with power isolated, considering the detection field and access to the controls. The current manufacturer page gives a six-year warranty for SKU 234196. EAN 3800170263543 identifies this exact CREE revision.
