Bollard Light STOCKHOLM 289GA 49 cm E27 Hot-Dip Galvanised NORLYS

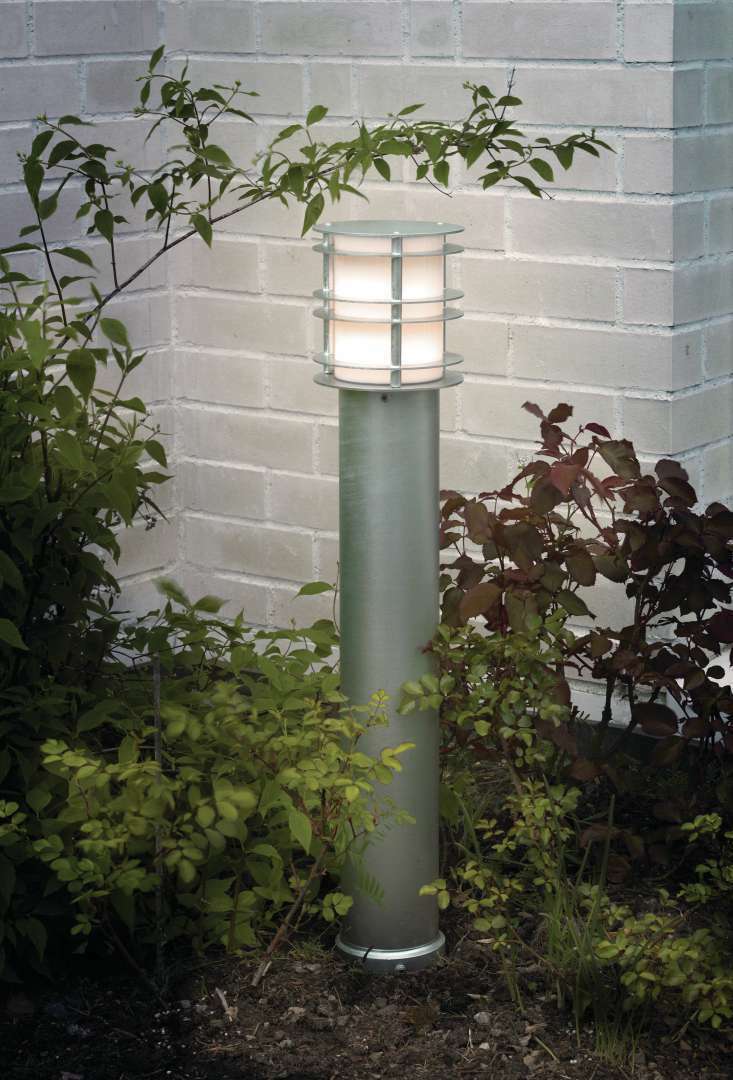

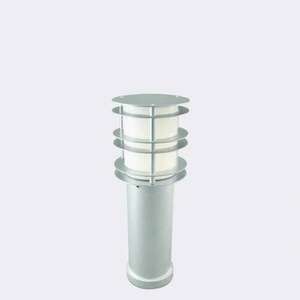

Stockholm 289GA is a 49 cm bollard light with a cylindrical body of hot-dip galvanised steel, left in the natural grey of the zinc. The head is an opal PMMA diffuser surrounded by horizontal rings and sealed with a silicone gasket.

Size and installation

The bollard is 49 cm tall and 17 cm in diameter, and weighs 6.45 kg. It bolts down with three screws through ø9 mm holes spaced at 120° on a ø56 mm circle. Ground-fixing accessories are sold separately – a concrete-in anchor 205ZX0010, a concrete-foundation adapter 206GA0S10 and a mounting adapter 3080GA0009 – so add the one that suits your surface to the order.

The terminals take conductors up to 3×2.5 mm² and allow the next bollard to be looped through at the same cross-section, so several bollards along a path run from one cable. The gland accepts cable up to 12.5 mm in diameter. It is a protection class II luminaire and needs no earth conductor.

Lamp and light distribution

The bollard has an E27 socket for an LED lamp of up to 9 W in an A55–A60 bulb. The lamp is not included, so you choose the colour temperature and brightness yourself; a wider decorative bulb will not fit under the diffuser. The lamp is changed by the user, with no service call.

The light is open and spreads symmetrically all round the bollard. The maker gives a ULOR of 49.72%, meaning roughly half the light goes above the height of the head – the opal diffuser glows like a small lantern and marks the line of the path rather than laying light only on the ground.

Where it fits

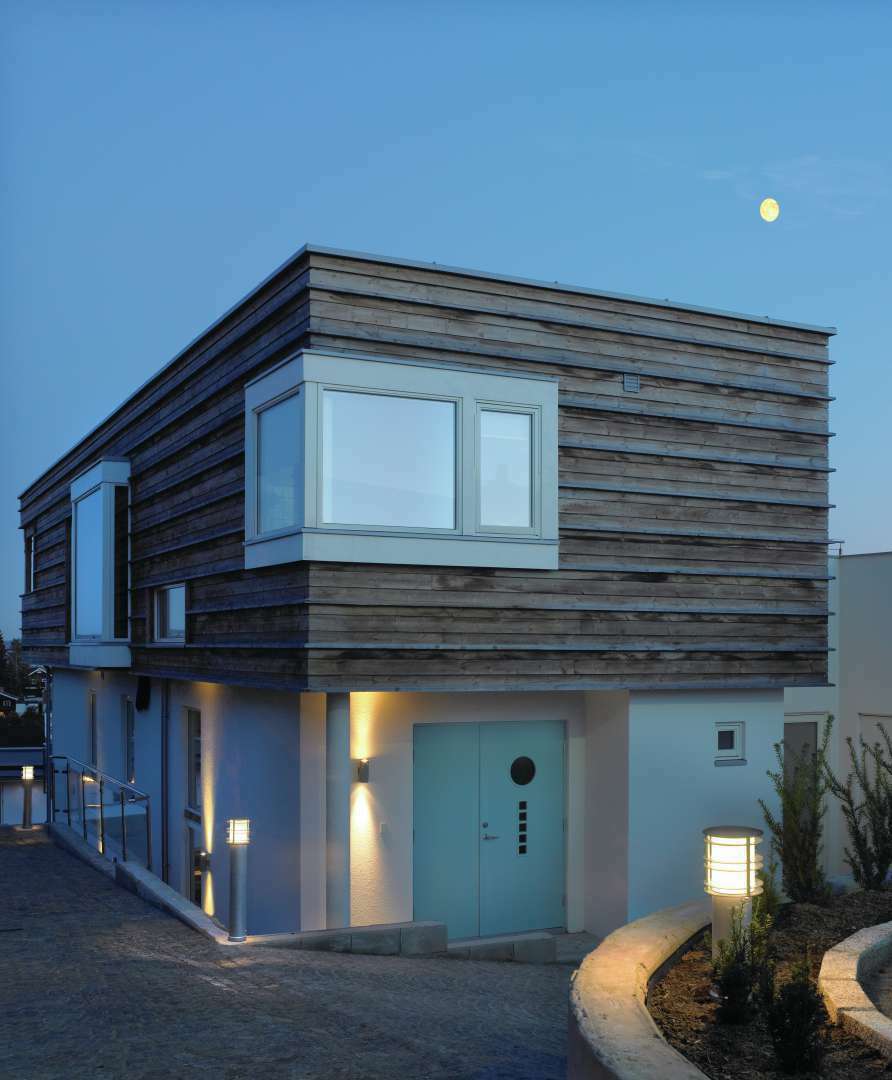

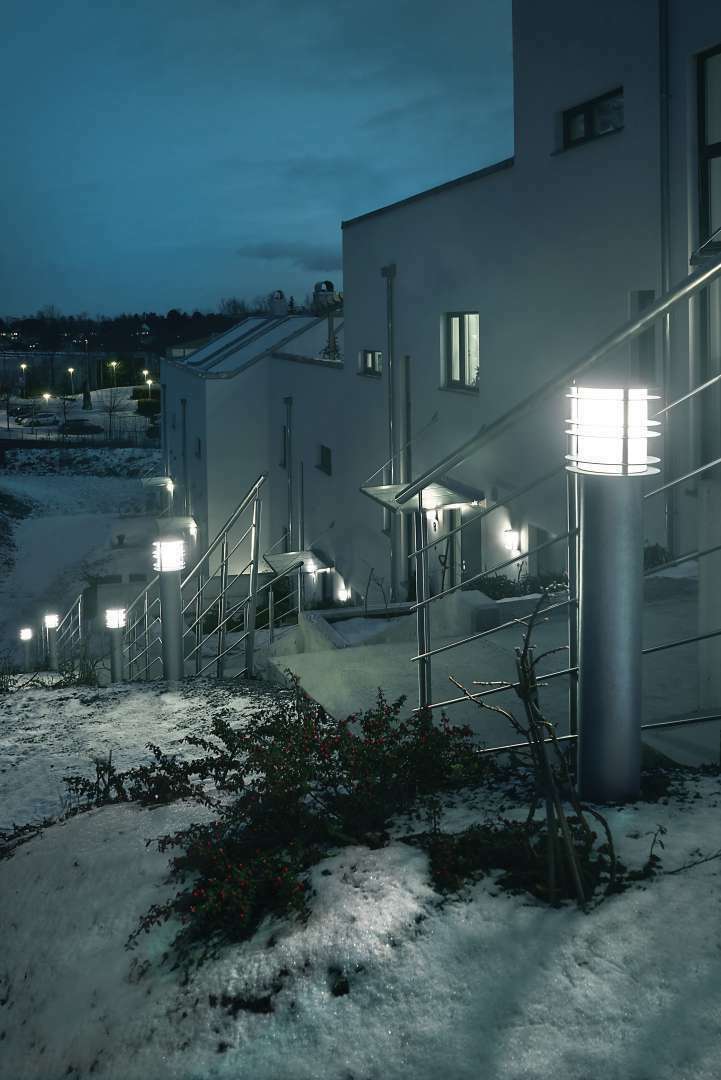

IP65 means a dust-tight housing protected against water jets, and IK10 is the top of the impact scale at 20 J. The maker intends it for private grounds and public areas: along driveways and paths, on terraces and at the entrances of hotels and restaurants. Raw galvanised steel and the plain ringed form fit a Scandinavian look. The diffuser and gasket are available as spare parts (06281004 and 08288002). The Stockholm series also includes 28 cm (299) and 85 cm (288) bollards, clear-diffuser versions and black finishes.
