Concrete Anchor NORLYS 1907 for Molde, Asker and Trysil Bollards, Galvanised Steel

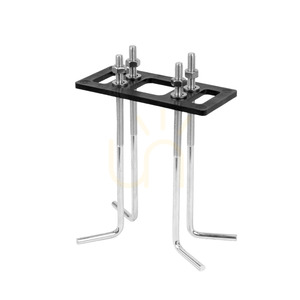

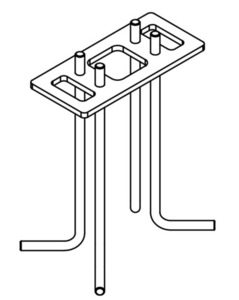

The 1907 anchor is a steel mounting plate with four threaded rods bent at the ends; it is cast into concrete and a Norlys bollard is then bolted onto it. The steel is electro-galvanised, and the anchor measures 11 × 5 × 16 cm.

Which luminaires it fits

Norlys specifies the anchor for Molde bollards (1901, 1903, 1904, 1970–1973, 5107 and the 24 V versions DC1899–DC1905), Asker (including 1309–1313, 1336–1339, 5120, 5124, 5125, 5158, 5208, 5209 and the 24 V versions), Asker Pro (1314–1322, 5214–5217) and Trysil (1096–1109). Luminaires are sold separately; for any other model, check compatibility on its own card.

Setting it in

According to the manufacturer's instructions the anchor goes into a concrete block 200 mm square and 150 mm deep, so that the M6 threads stand 30 mm above the concrete – the bollard base fits over them and the nuts are tightened. The instructions advise greasing the threads before assembly, and the bent rod ends lock the anchor into the concrete.
