Garden Lantern Norlys London Big 4132BC LED 3x9.5W 2271 lm 3000K IP54 Copper Patina

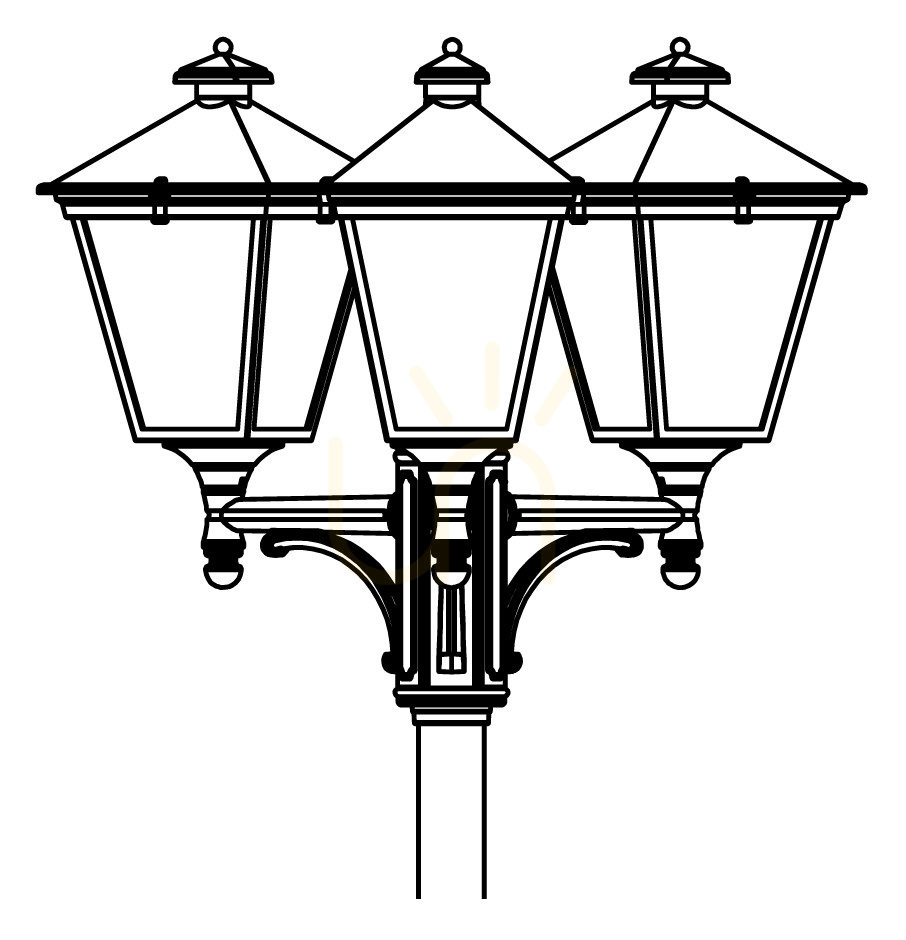

The Norlys London Big 4132BC is a triple garden lantern on a straight arm, measuring 43 × 30.5 × 65 cm, in a copper patina finish. Three lantern shades sit on a common head made for a pole — this is a system component, not a standalone fitting ready to screw to a wall.

Light aimed downward

The most interesting figure on this lantern is a ULOR of 0% and a BUG classification of B1-U1-G0. ULOR states what share of the flux escapes upward — here, none. For a lantern of classical form that is unusual: most such fittings emit all round and light mainly the sky. The manufacturer marks this model as dark-sky friendly, which counts in practice where local light-pollution rules apply — and simply towards the neighbours.

Three modules, one pole

Three LED modules of 9.5 W each give a combined 2271 lm from the fitting at 3000 K. The two quoted figures are worth separating: the sources themselves generate 3300 lm, but 2271 lm leaves the optics and shades — and it is that second number that describes the light actually reaching the ground. Luminaire efficacy is 79.7 lm/W. The light source is integrated and not replaceable.

Durability and installation

The body is painted cast aluminium — the material chosen for fittings that stand outdoors for years. IP54 protects against dust and splashing, and the IK07 impact rating covers blows of 2 J, which for a lantern beside a path or driveway is not theoretical. The operating range is −20 to +45 °C. The head fixes through 3 holes of ø10.5 mm spaced every 120° on a ø240 mm circle; the terminals accept conductors up to 4 × 2.5 mm² and allow loop-through wiring, so further lanterns are chained.

Specification

• Manufacturer: Norlys
• Family: London Big
• Index: 4132BC
• EAN: 7042890413228
• Type: garden lantern, triple, straight arm
• Dimensions: 43 × 30.5 × 65 cm
• Light source: LED, integrated
• Power: 3 × 9.5 W
• Luminaire flux: 2271 lm
• Source flux: 3300 lm
• Luminaire efficacy: 79.7 lm/W
• Source efficacy: 115.8 lm/W
• Colour temperature: 3000 K
• Colour rendering: CRI 80
• Colour consistency: SDCM3
• Power factor: PF > 0.9
• Energy efficiency class: E
• BUG classification: B1-U1-G0
• ULOR: 0%
• Dark-sky friendly: yes
• Voltage: ~220–240 V
• Inrush current: 3.01 A / 32.66 µs
• Protection class: II
• Ingress protection: IP54
• Impact resistance: IK07
• Ambient temperature: TA +25 °C, range −20 to +45 °C
• Material: painted cast aluminium
• Colour: copper patina
• Mounting: 3 holes ø10.5 mm on a ø240 mm circle every 120°
• Terminals: max 4 × 2.5 mm², loop-through possible; cable ø7–12.5 mm
• Country of origin: European Union
