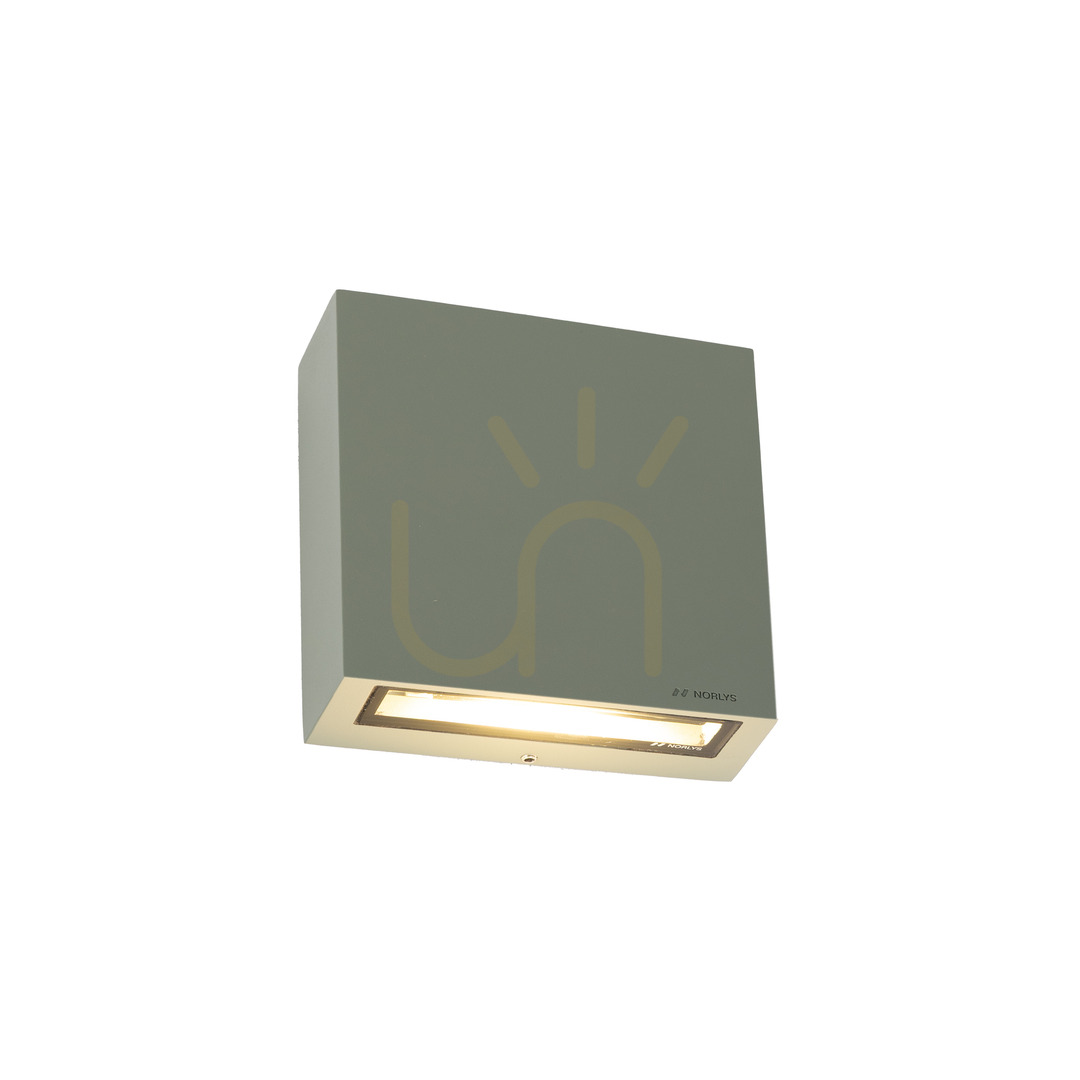

NORLYS Nora 2474CG cement grey outdoor LED wall light 15.3 W 593 lm 2700 K DALI2 IP65

NORLYS Nora 2474CG is a compact outdoor wall light in cement grey RAL 7033. Two integrated LED modules draw a combined 15.3 W, produce 593 lm of warm 2700 K light and create a diffused effect directed both upwards and downwards.

Bidirectional light through satin glass

The square 13 × 13 × 5 cm body encloses two opposing light outlets. Satin safety glass softens the distribution, while ULOR 50% confirms that half of the output is emitted above the horizontal. CRI 80 gives standard colour rendering, SDCM3 limits chromaticity variation and complete-fitting efficacy is 38.8 lm/W. Nora is intended to accent façades, wall surfaces and other architectural details rather than provide floodlighting. Its shallow projection keeps the geometry close to the mounting surface.

RAL 7033 aluminium, IP65 and IK09

The housing is powder-coated cast aluminium, the cover is satin-finished safety glass and sealing uses silicone. IP65 denotes dust-tight construction and protection against water jets, while IK09 specifies impact resistance. Permitted ambient temperature is -20 to +45°C. Net and gross weights are 0.85 and 0.91 kg respectively. Exact suffix 2474CG denotes cement grey RAL 7033, not graphite; other suffixes identify different finishes. The coating should be cleaned without abrasive products that could damage its surface.

DALI2 with professionally serviceable parts

Two LED modules and an electronic DALI/TD control gear are included. The system supports DALI2 and therefore requires compatible control wiring and a correctly designed installation. The light sources and control gear may be replaced only by professional service personnel, not in the manner of an ordinary bulb. NORLYS specifies 100,000-hour control-gear life but gives no complete current L90 hour value for the modules, so an unsupported conversion into years of use should not be assigned to the product.

Class I connection and prepared cable entry

The wall light operates at 220–240 V, 50–60 Hz and belongs to Protection Class I, so protective earthing is required. Fixing uses two Ø5 mm holes spaced 63 × 112 mm. Terminals accept up to 5 × 2.5 mm² and permit loop-through up to 5 × 1.5 mm²; the round sheathed cable should measure 7–10.5 mm in diameter. Installation and servicing must be carried out by a qualified person while preserving the seals needed for IP65. EAN 7042897891432 identifies this exact variant.
