IR presence and dusk sensor Q HD-2 DALI2-IPD AP

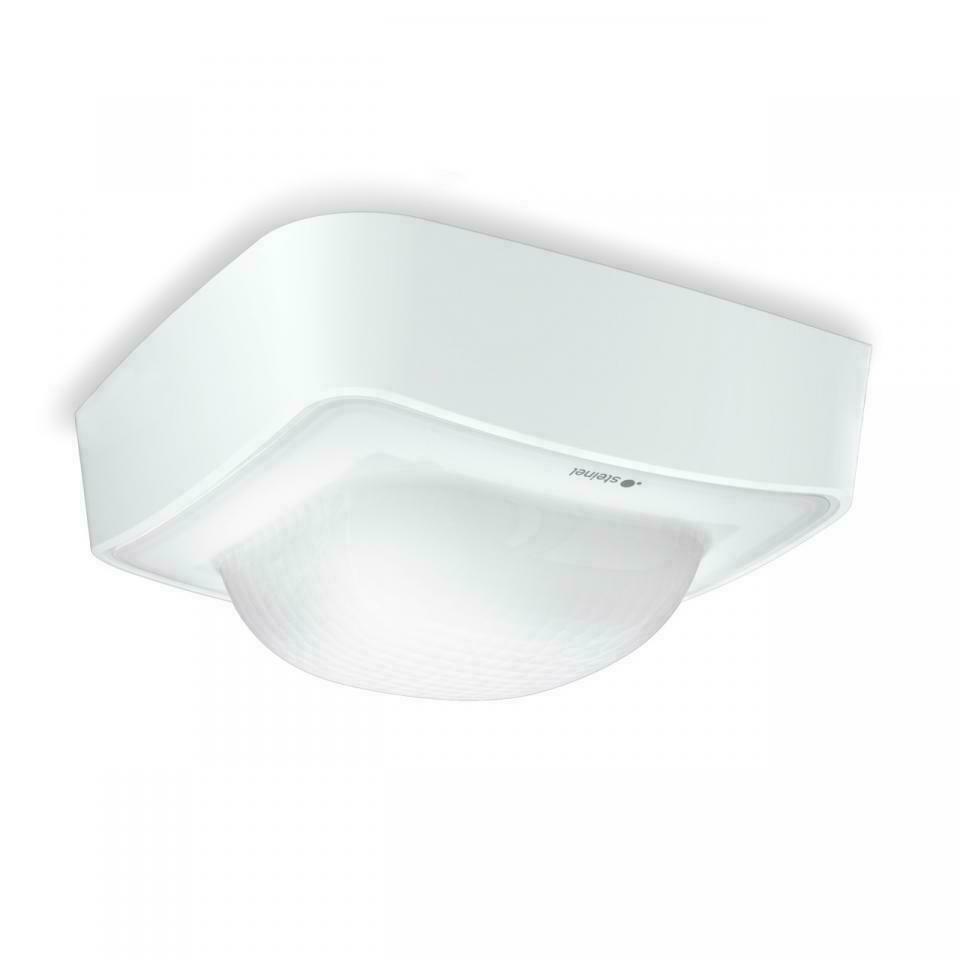

Steinel IR Quattro HD-2 24m DALI-2 IPD Surface-mounted presence detector IP20 White Product code 064389

Benefits of using the Quattro HD-2 DALI-2 IPD IR sensor in building automation

• Precise detection in the largest detection area - The Quattro HD-2 DALI-2 IPD IR sensor provides a tangential detection range of up to 24 × 24 m (576 m2) and a radial detection range of up to 9 × 9 m (81 m2), making it ideal for open offices, classrooms, warehouses or production halls.
• Ceiling surface mounting up to 10 m - The sensor is designed for mounting on ceilings from 2.5 to 10 m (optimum 2.8 m), giving great installation flexibility in tall commercial spaces.
• DALI-2 Input Device - Integration with lighting control systems - The sensor transmits presence, brightness, temperature and humidity data (in IP, KNX and DALI-2 IPD versions) to a DALI-2 controller, acting as an input device (slave).
• Control and configuration via Bluetooth app - Parameterization is done wirelessly from the mobile app and the DALI bus, greatly simplifying system deployment and configuration.
• Pro-environmental solution - The sensor comes in plastic-free packaging, supporting sustainability and green investment.

Features and applications of the Quattro HD-2 DALI-2 IPD IR sensor

• 360° detection - full coverage of the space with no dead zones
• TEACH mode - automatic twilight threshold setting
• Support for variables: presence, light, temperature, humidity
• Protection against crawling
• Masking of selected detection segments
• Surface mounting in office, industrial and educational ceilings

Technical and logistical data of the product

• Device type: PIR presence sensor + light sensor
• Detection technology: passive infrared, light sensor, temperature, humidity
• Version: DALI-2 Input Device - surface wiring
• Presence range: 9 × 9 m (81 m2)
• Tangential range: 24 × 24 m (576 m2)
• Detection angle: 360°
• Mounting height: 2.5 - 10 m (optimum 2.8 m)
• Functions: motion sensor, presence sensor, sensor logic
• Light range: 2 - 2000 Lux
• TEACH twilight setting: yes
• Permanent lighting control: no
• Segment masking: yes
• Creep protection: yes
• Parameterization
• :
• Bluetooth Mesh, app, DALI bus
• Interconnection
• : yes
• DALI output: addressable/slave
• Power supply: DALI bus (12.5 - 22 V)
• Current consumption (typical): 19 mA (16 V), max.. 32 mA (10 V)
• Power consumption: 0.3 W
• Dimensions: 64 × 123 × 123 mm
• Housing material: plastic
• Color: white (RAL 9003)
• Operating temperature: 0 - 40 °C
• Protection class: IP20
• Product code: 064389
• EAN: 4007841064389
• Warranty: 5 years
