IR presence and dusk sensor Q HD-2 COM1 AP WS

Steinel IR Quattro HD-2 24m COM1 Surface-mounted presence detector IP54 White Product code 064327

Benefits of using the IR Quattro HD-2 COM1 sensor in building automation

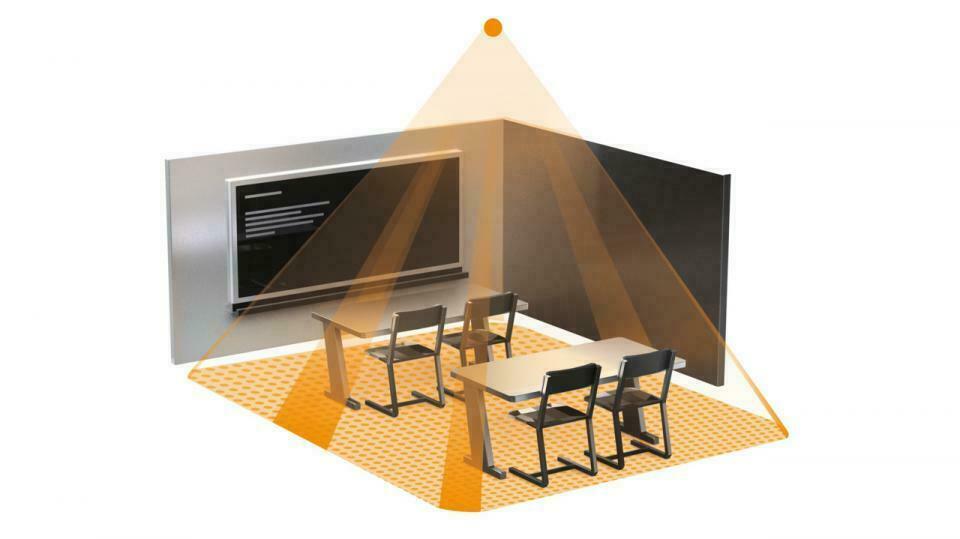

• Largest detection range among Steinel PIR sensors - The Quattro HD-2 COM1 IR sensor provides presence detection of up to 81 m2 and motion detection of up to 576 m2 (in tangent mode). It is ideal for large spaces: classrooms, lecture halls, production halls, open space, high-bay warehouses, and reception areas.
• Wide range of ceiling mounting - The ability to install at heights from 2.5 to 10 meters (optimally 2.8 meters) allows for flexible use in a variety of environments - from office to industrial.
• Smart configuration and control via Bluetooth Mesh - The device supports parameterization via a mobile app, potentiometer, or smartphone. Bluetooth Mesh Connect technology allows for quick integration into modern lighting management systems.
• Individual configuration of detection segments - The sensor offers the possibility to mechanically mask selected areas, which allows you to customize its operation to the specific layout of the room.
• Robust housing and durability of operation - IP54-rated plastic housing ensures reliable operation in harsh environments and increased resistance to dust and moisture.

Functions and applications of the Quattro HD-2 COM1 IR sensor

• 360° detection with segment masking capability
• Operating modes: automatic, semi-automatic, manual ON/OFF, test mode
• Support for groups, neighboring sensors and lighting scenarios
• TEACH function - automatic twilight threshold setting
• Designed for surface mounting in ceilings

Technical and logistical data of the product

• Device type: PIR presence detector with light sensor
• Detection technology: passive infrared + pyrometric light sensor
• Detection angle: 360°
• Presence range: 9 × 9 m (81 m2)
• Tangential range: 24 × 24 m (576 m2)
• Mounting height: 2.5 - 10 m (optimal: 2.8 m)
• Parameterization: Bluetooth Mesh Connect, app, potentiometer, smartphone
• Mounting type: surface, ceiling
• Power supply: 220 - 240 V / 50 - 60 Hz
• Relay output: 1 × 2000 W (resistive load)
• LED load capacity: < 2 W: 100 W; 2-8 W: 300 W; > 8 W: 600 W
• Fluorescent lamp load: without correction: 1000 VA; with series correction: 400 VA; with parallel correction: 1000 VA
• Number of fluorescent lamps supported: up to 8 units
• TEACH function: yes
• Basic light function / headlight adjustment: no
• Zone masking: yes (mechanical)
• Electronic control: yes
• Interconnection: yes
• Protection class: IP54
• Operating temperature: -20°C to +50°C
• Color: white (RAL 9003)
• Housing material: plastic
• Dimensions: 64 × 123 × 123 mm
• Product code: 064327
• EAN: 4007841064327
• Warranty: 5 years
