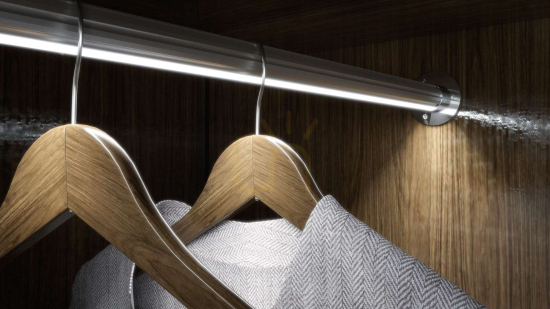

COSMO profile is a round aluminum profile, adjustable, for lighting the interior of cabinets, replacing the basic construction of the rod. For decorative and spot lighting.
The profile comes in five color versions:
- raw profile,
- white lacquered profile,
- inox anodized profile,
- black anodized profile
- silver anodized profile
Profiles available in sections: 1000 mm, 2020 mm, 3000 mm.
Possibility to purchase longer sections after contacting the service office.
Installation method:
- using a mounting bracket
- using an articulated system
Accessories for Lumines COSMO profile
SHADES (shutters):
- BASIC lampshade made of PVC plastic - milky, frosted, transparent
- PMMA plastic Basic diffuser - transparent, frosted, frosted milky, lens 15, lens 30, black
- PC plastic Basic diffuser - transparent, frosted, milky
(mounted from the top by pressing)
CAPS :
Aluminum in black and silver, available in variant with hole, without hole
Plastic in white, silver, black, inox and gray available with routed hole
Aluminum Regulators in black and silver, available with and without hole
Plastic Adjustable in black and silver
ADD-ONS:
stand
COSMO metal handle
hinge
male joint
female joint
auxiliary profile METRO
auxiliary profile Cosmo M1
knurled screw
straight connector
90' elbow adapter
120' elbow connector
rosettes
Installation instructions for COSMO round profile with (1) BASIC diffuser, (2) BASIC LENS 30 diffuser using COSMO M1 auxiliary profile and COSMO metal mounting bracket
Example of application of auxiliary profile COSMO M1 changing the angle of light of LED strip
Example of changing the position by 45° of the COSMO profile using the COSMO metal mounting bracket
Assembling of COSMO profile with BASIC LENS 30 diffuser, handles, caps and adjustment ring
Diagram of assembly of lighting system elements using COSMO round profile and (1) BASIC LENS 30 diffuser, (2) LED strip, (3) COSMO M1 profile, (4) adjustment cap with hole, (4a) adjustment cap without hole, (5) adjustment rings, (6a) female joint element, (6b) male joint element, (6c) knurled screw, (7) stand
