NARVIK II 1853GR is a 95 cm LED bollard of cast aluminium, powder-coated in graphite. Under a domed cap sits a clear PMMA diffuser through which light leaves on four sides, shaded from above. An inspection door in the shaft gives access to the connection.
How much light it gives
The luminaire draws 22.2 W and emits 1475 lm at 4000 K, a neutral white without a yellow tint. The cap directs the light sideways and down onto the path, driveway or terrace around the bollard. The LED module and electronic driver are built in, so no bulbs or separate power supply are needed. The luminaire is not dimmable — when switched on it always runs at full output.
Where it fits

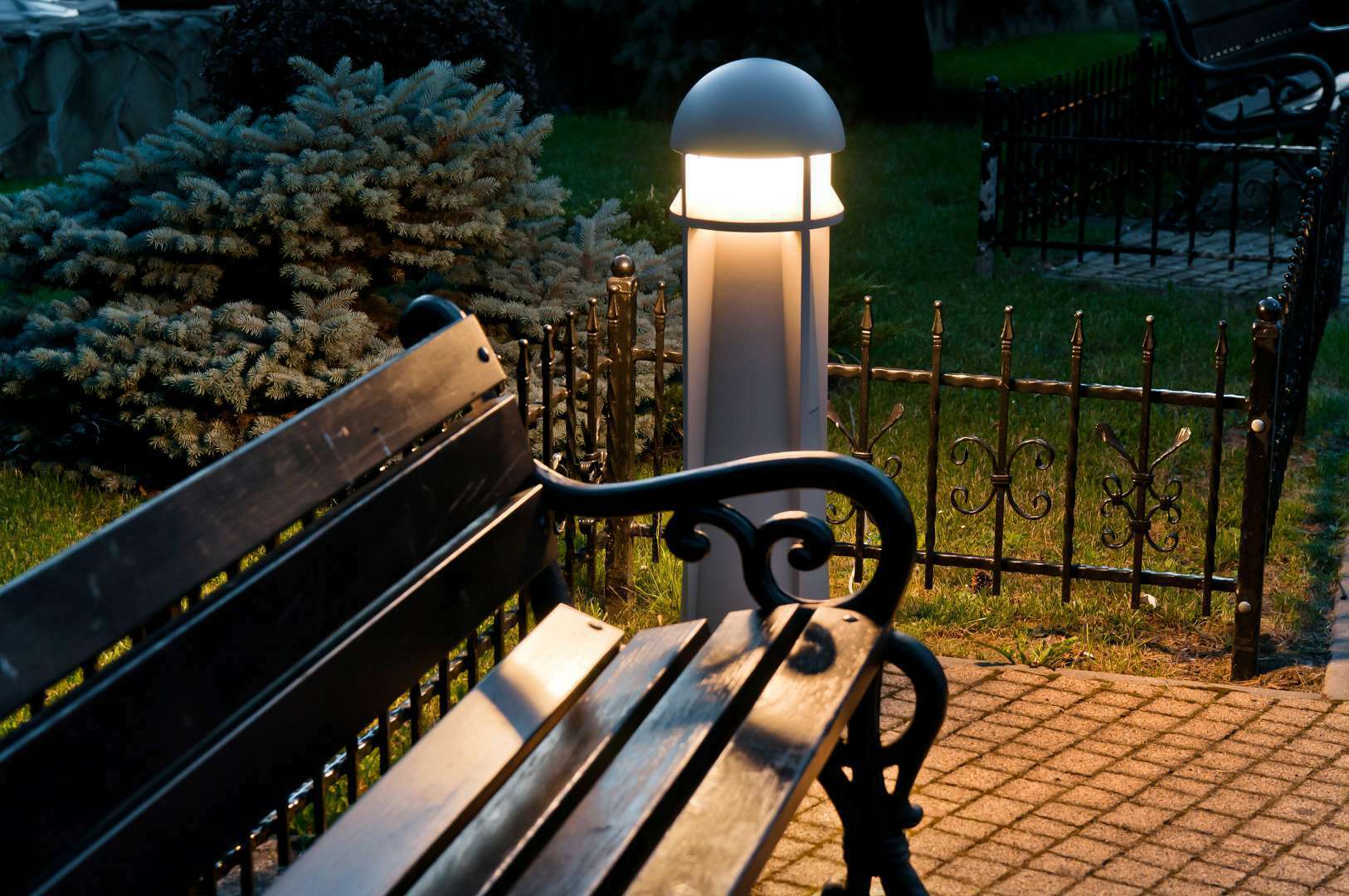

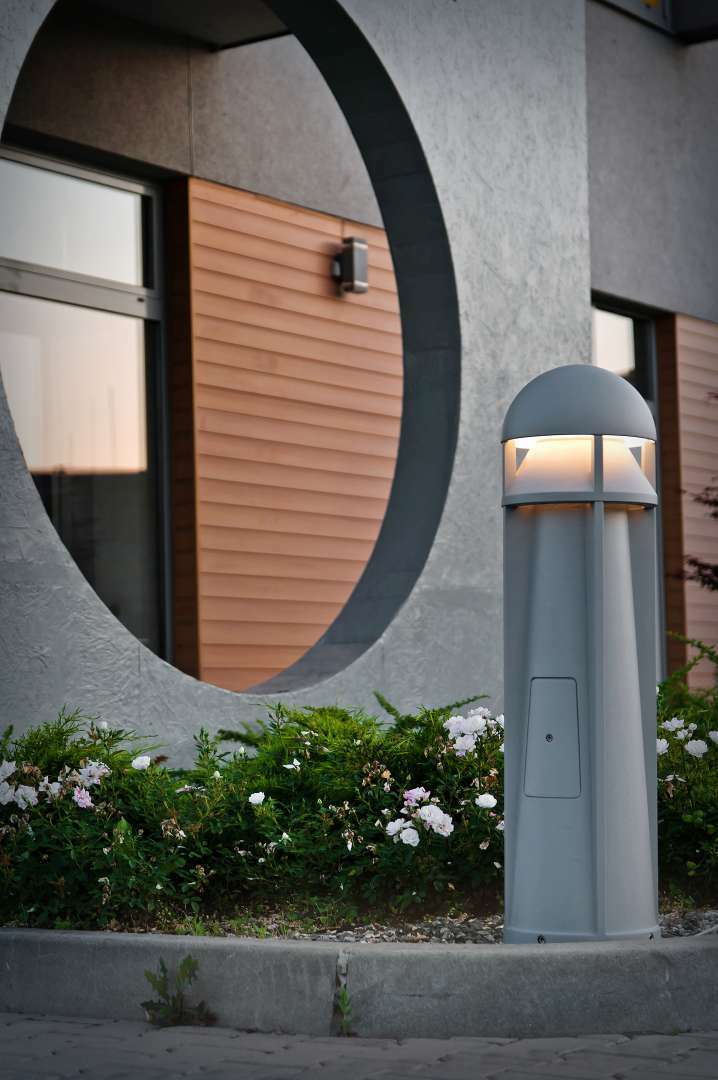

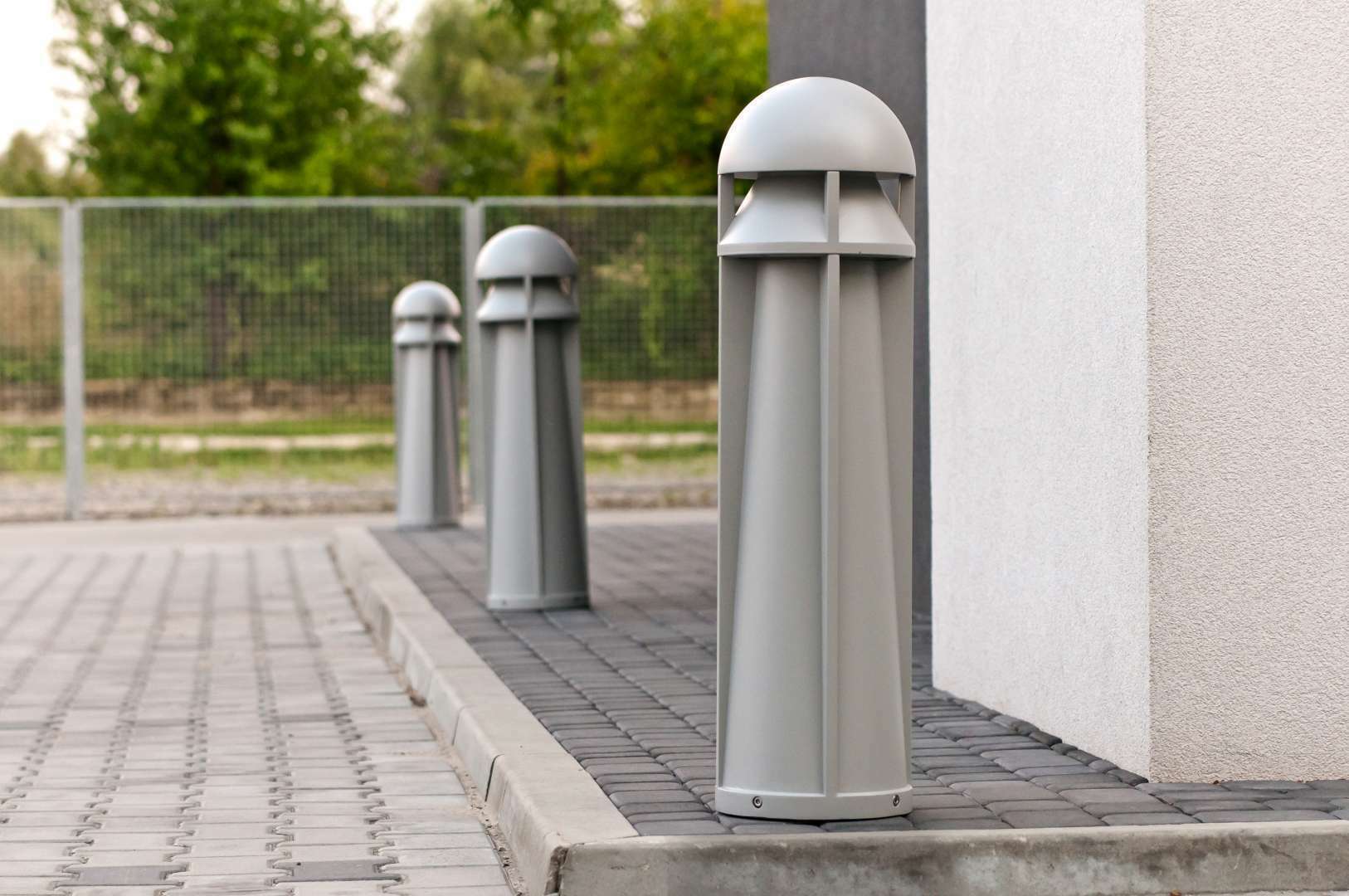

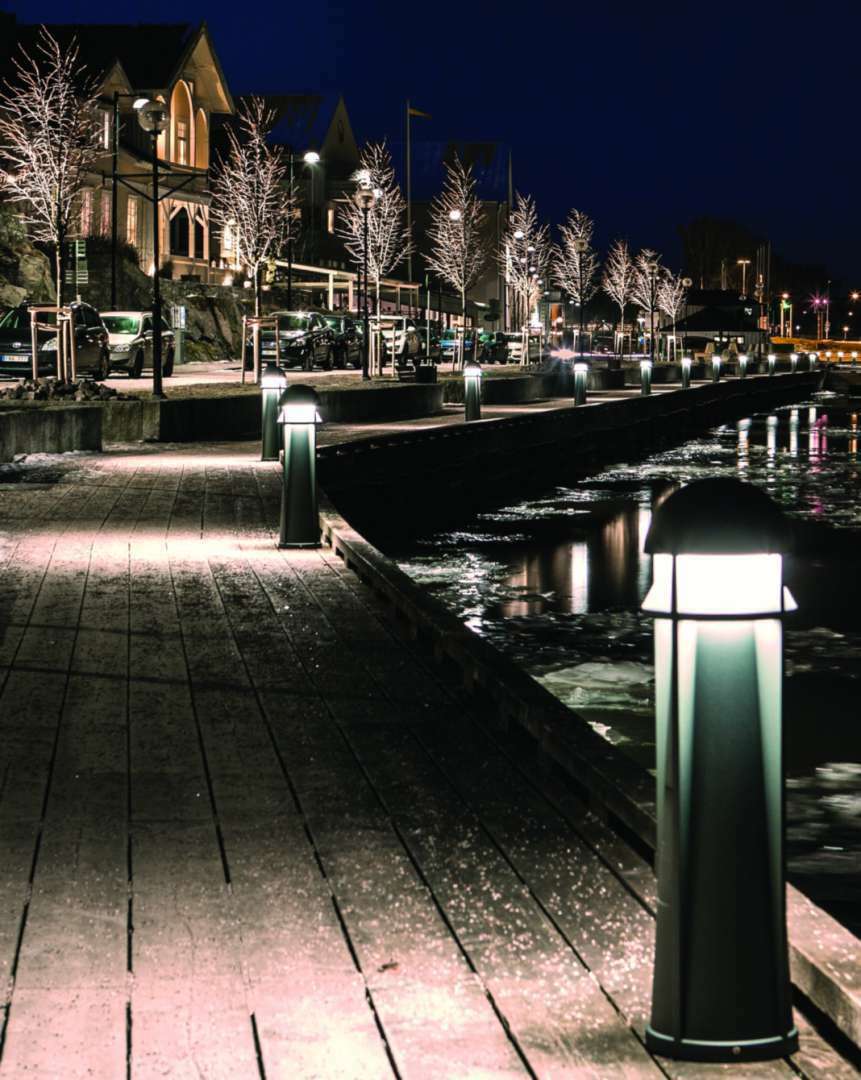

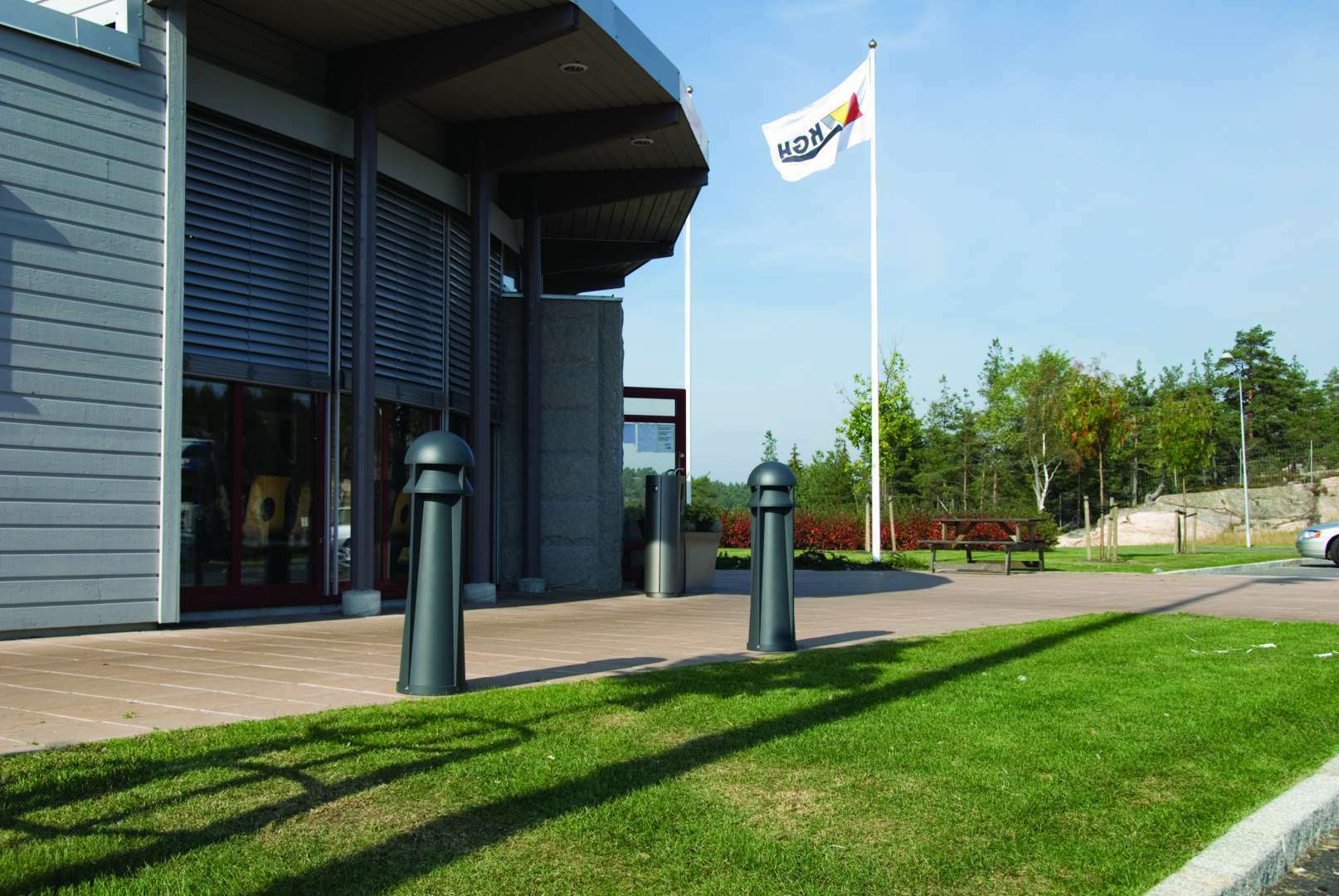

IP65 means dust-tight and protected against water jets, so the bollard stands outdoors without shelter. IK10 is the top impact-resistance grade on that scale, relevant near car parks, pavements and public areas. The manufacturer intends it for lighting private grounds and public zones — gardens, terraces, driveways, streets and the surroundings of hotels and restaurants.
Installation and supply

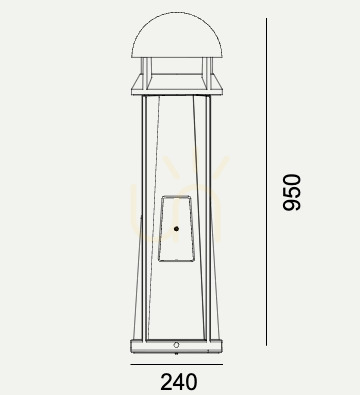

The base is 24 × 24 cm and is fixed through six oval 10 × 15 mm holes on a Ø 172 mm circle. The concrete anchor (505XX0009), the concrete-foundation adapter (110) and the mounting adapter (3088) are ordered separately. The terminals take wires up to 2 × 4 mm² and allow further fittings to be looped through, and the gland suits cable of 8–12 mm or 10–14 mm diameter.
For a row of bollards the manufacturer's card states how many fit on one circuit breaker: B 10 A — 31, B 16 A — 50, C 10 A — 52, C 16 A — 85. The luminaire is protection class II and needs no earth conductor. Installation must be done by a qualified electrician.
