Norlys Skara 2957BL black LED bollard 7.7 W 616 lm 4000 K SCHUKO

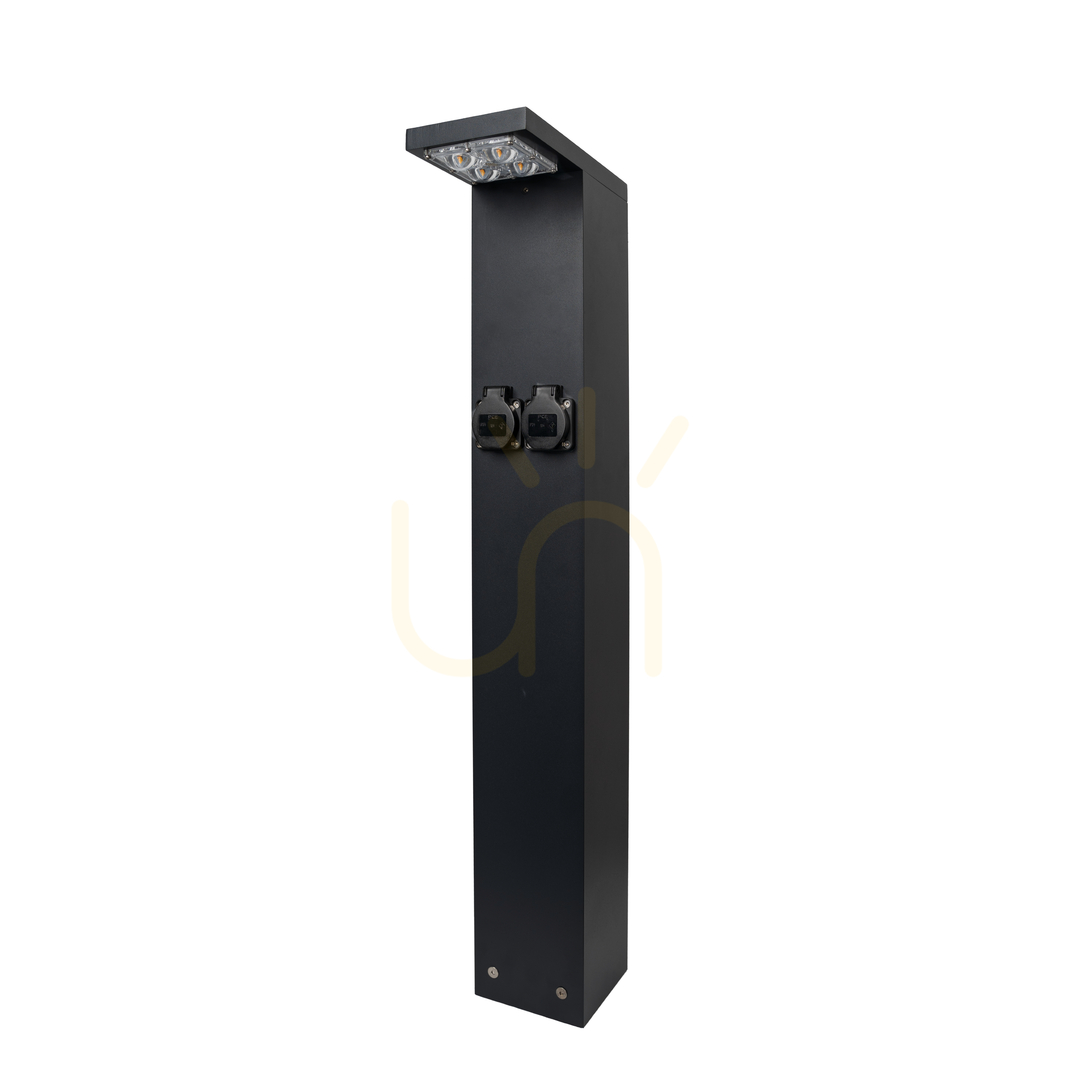

Norlys Skara 2957BL is a black LED bollard that combines area lighting with a practical outdoor power-distribution point. Its slim 85 cm body carries a downward-facing optic at the top and two Type F SCHUKO sockets on the front. The fitting can therefore define a route beside a terrace or driveway while also providing a convenient connection for equipment used around the property.

Symmetrical 4000 K illumination

The integrated LED module uses 5.8 W, while total luminaire consumption is 7.7 W. Output of 616 lumens and a neutral 4000 K colour temperature provide clear orientation light. A Ledil VSM lens creates an IESNA Type V symmetrical distribution across the area around the bollard. CRI 80 supports recognisable colours, and SDCM3 limits visible variation between light output. The driver accepts trailing-edge phase dimming; the chosen control must be compatible with the installation.

Two SCHUKO power sockets

The body contains two 16 A Type F sockets. Norlys specifies a maximum load of 3600 W when one socket is used, or 2 × 1800 W when both are in service. This arrangement can support suitable terrace or garden equipment, provided the connected devices and electrical circuit meet the required conditions. Supply is 220–240 V and power factor is PF 0.95. Connection, protection and commissioning should be handled by a qualified installer.

Aluminium construction for outdoor settings

Skara measures 12 cm wide, 24 cm deep and 85 cm high. The BL black version corresponds to RAL 9005. Its body is powder-coated extruded aluminium, the sealed outer lens is clear PMMA and the cable gland is EPDM. IP54 defines resistance to dust and splashing water, IK08 covers mechanical impact and Class II describes electrical protection. Mounting uses four Ø7 mm holes on 64 × 64 mm centres. Net weight is 6 kg and gross weight is 6.5 kg.
