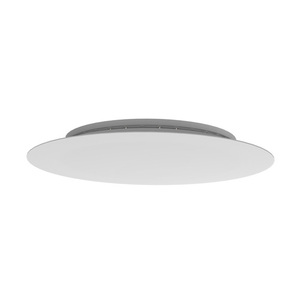

The CAMELEON CANOPY A II box (item 8565) is a component of the Nowodvorski Cameleon system, not a finished lamp. It is a round ceiling canopy 30 cm across and just 3 cm deep, to which Cameleon suspensions and shades are connected — on its own it does not light and contains no light source.
What it is for
The Cameleon system rests on a simple idea: one electrical outlet in the ceiling becomes a multi-point composition. The CANOPY A II box splits the supply across up to 12 Cameleon lamps, each rated at up to 25 W and required to be an LED source. The suspensions can be set at different drops to build a cascade over a dining table, a kitchen island, a stairwell or a counter.
Limits worth knowing
The 25 W per point and the LED-only requirement are conditions of approval, not suggestions — the canopy is not rated for halogen or incandescent lamps of higher wattage. If you plan to use all twelve fittings, work out the spacing of the suspensions before installation, because the plate is only 30 cm in diameter.
Build and safety
The canopy is made of painted steel and plastic in white RAL 9003. The flat, 3 cm body barely stands off the ceiling. The product is built to protection class II (double insulation), so no protective earth connection is required. The IP20 rating restricts it to dry indoor rooms. It runs on ~220–230 V, 50/60 Hz. The manufacturer has issued an EU declaration of conformity covering the LVD, EMC and RoHS directives and the EN IEC 60598 series of standards.
What you still need to buy
The canopy is the base of a configuration. To complete a lamp you also need Cameleon suspensions (cables with lampholders) and shades or fittings from the same family, plus the LED light sources — none of which are included.
Specifications
- Type: Cameleon system canopy box (component, not a complete luminaire)
- Maximum load: 12 lamps × max. 25 W, LED sources only
- Light source included: no
- Supply: ~220–230 V, 50/60 Hz

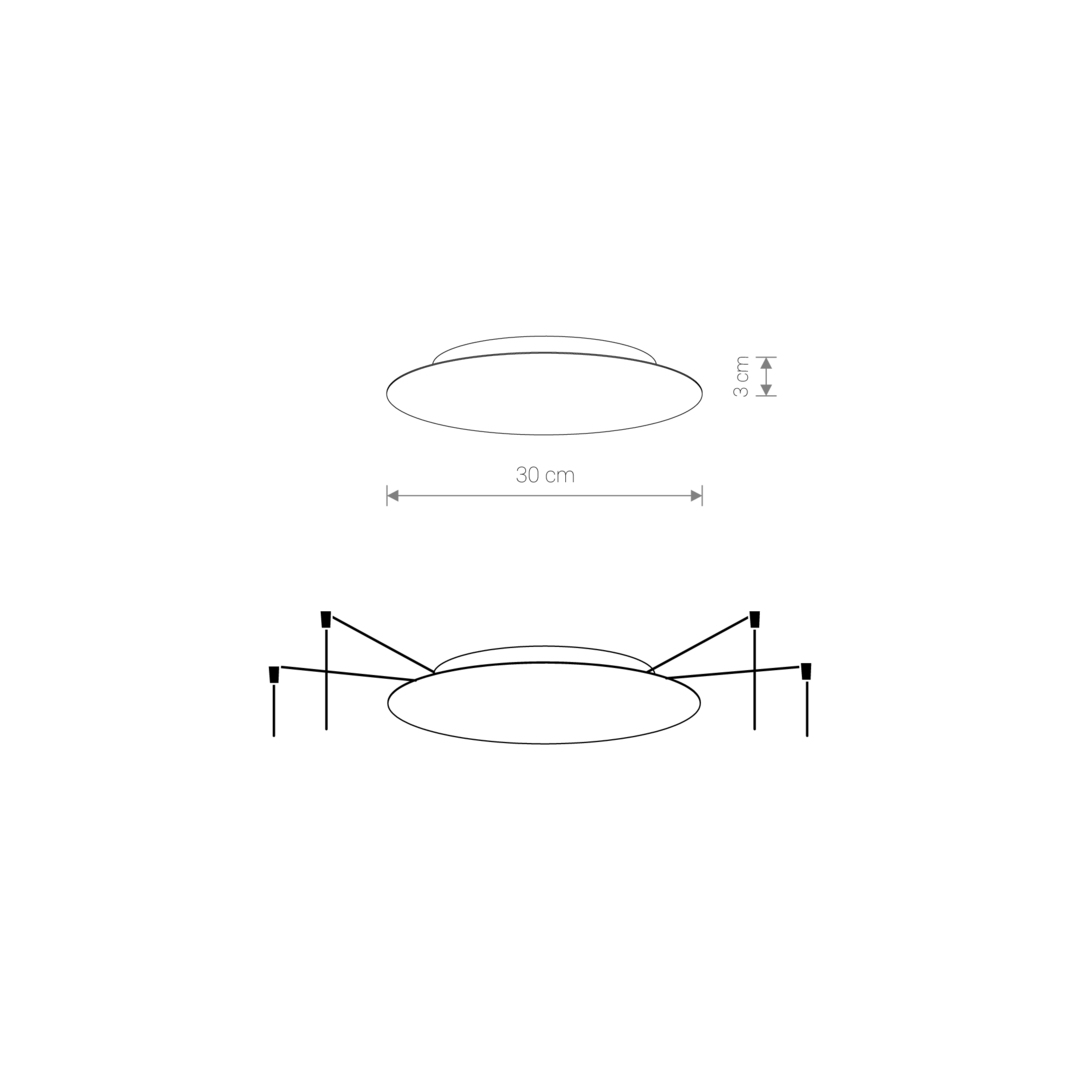

- Dimensions: diameter 30 cm, height 3 cm
- Material: painted steel, plastic
- Colour: white (RAL 9003)
- Protection class: II (double insulated)
- Protection rating: IP20
- Mounting: direct to the ceiling
- Manufacturer item: 8565 (Nowodvorski Lighting, Poland)
Choosing CAMELEON components
This canopy forms the base of a CAMELEON arrangement. Select pendant cables with lamp holders, matching shades and cable-routing accessories separately. Match the number and specifications of the pendant cables to the limits of this particular canopy model.
This canopy model is intended for up to 12 lighting points. Limit per point: 25 W LED only. Keep the number of pendant cables within this limit; not every CAMELEON canopy supports 12 lights.
