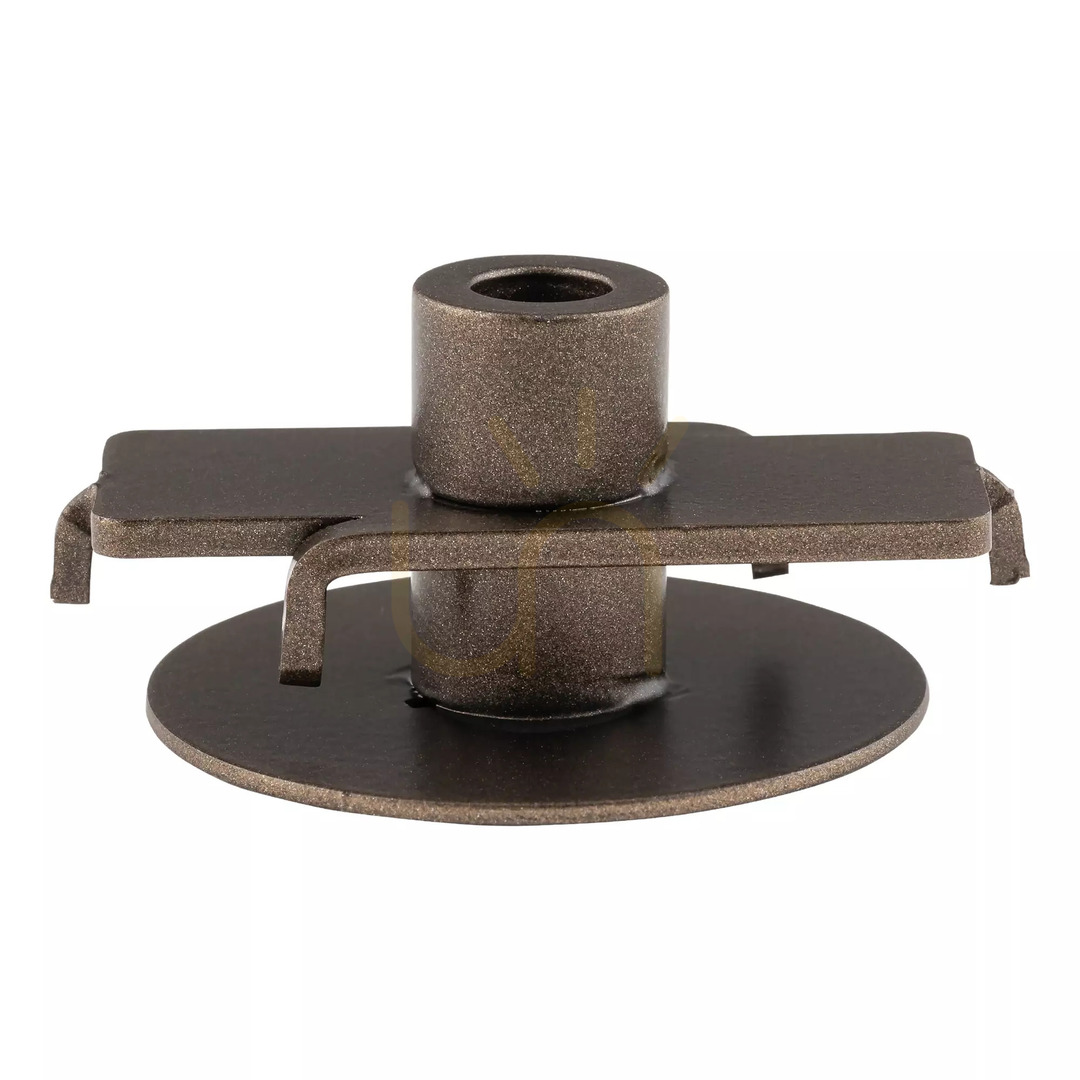

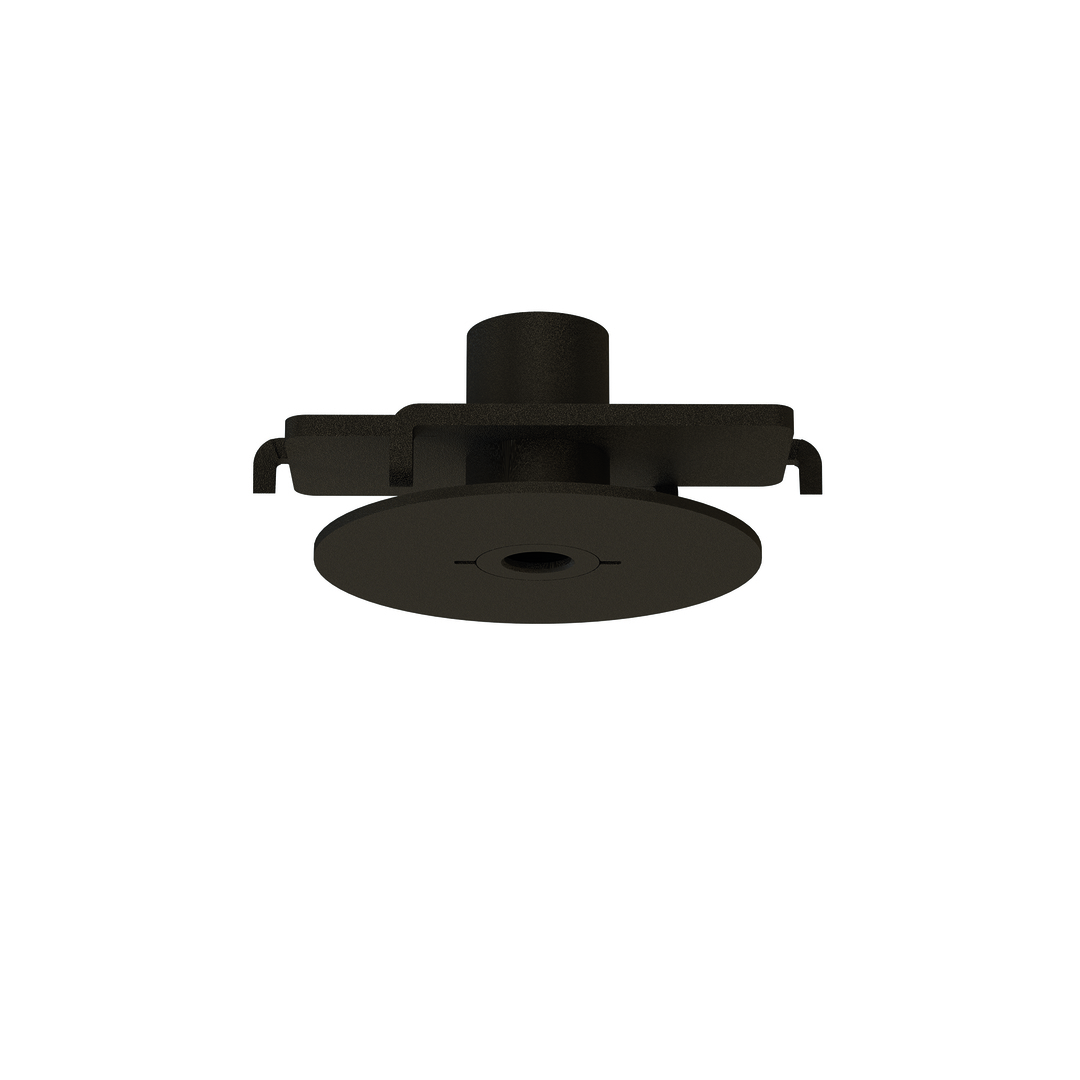

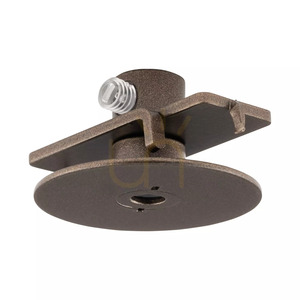

Nowodvorski CAMELEON CANOPY F MINI 11186 is a recessed ceiling canopy for connecting one light in the CAMELEON system. Its circular cover is made from painted steel in satin chocolate brown P025, RAL 8017. This is a mounting component for a lighting assembly, not a standalone light or a complete pendant supplied with a shade.
Plan the cut-out separately from the cover

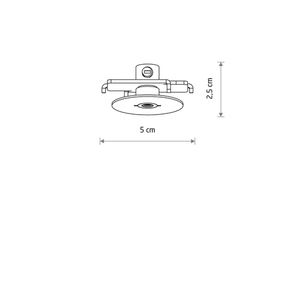

The canopy is 5 cm wide and 2.5 cm high. It requires a round mounting opening measuring 3.3 cm in diameter; the installation guide also specifies a minimum mounting space of 30 mm. These measurements refer to different parts of the installation. The visible cover diameter is therefore not the diameter of the hole to prepare in the ceiling. Check both the opening size and the available mounting space before preparing the position.
F MINI uses recessed mounting, so it should not be treated as a surface-mounted canopy when planning the ceiling. The manufacturer's guide explicitly includes this article number and illustrates assembly and connection. Installation and electrical connection must be carried out by a person qualified to work with electrical equipment.
One CAMELEON light, LED only
This version supports a maximum of one light rated at up to 25 W, LED only. It is designed exclusively for CAMELEON cables and CAMELEON shades. The limit applies to the connected light rather than to light produced by the canopy itself. No light source is included; the cable, shade and suitable light source must be selected as separate parts of the assembly.
Chocolate finish and supplied parts

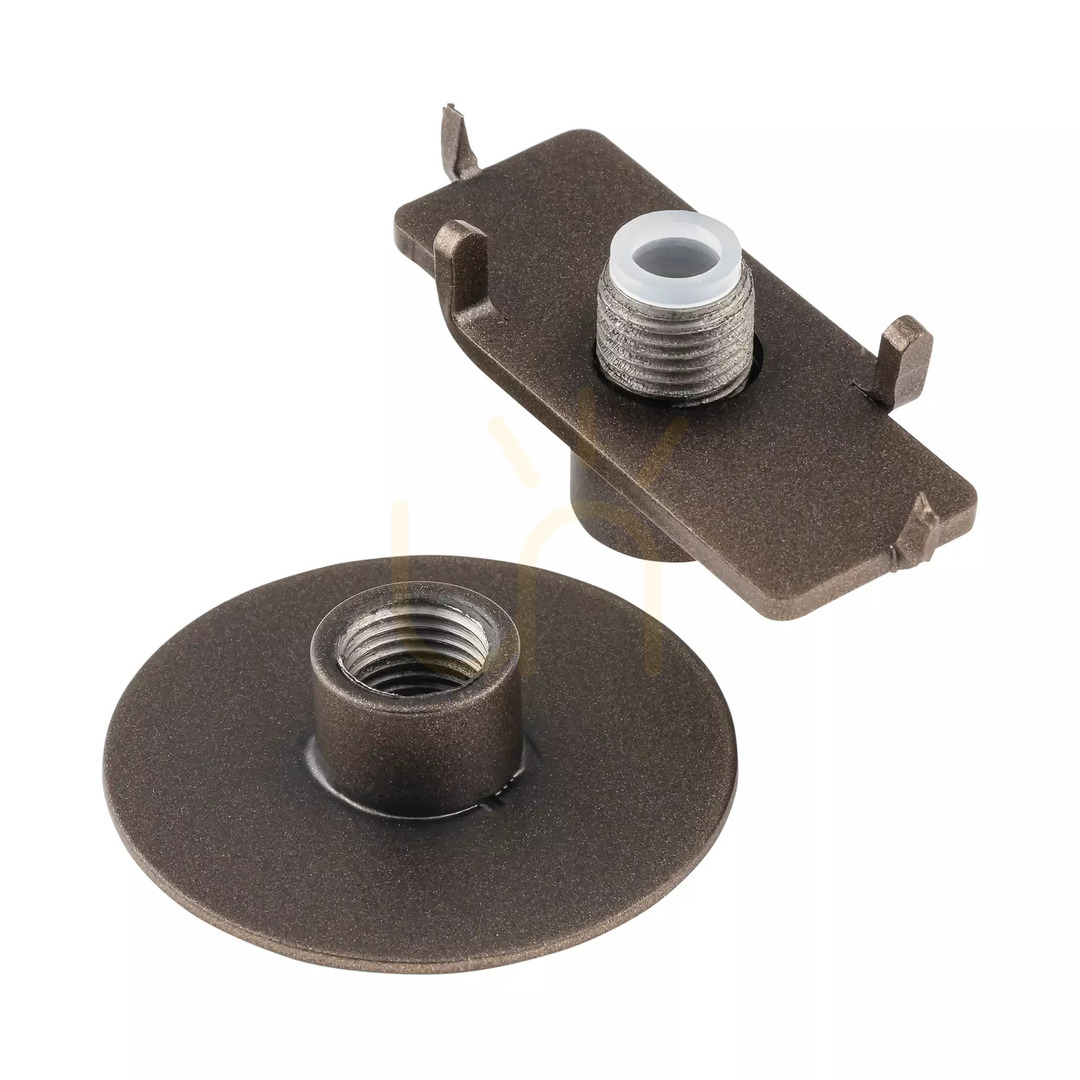

The package contains the canopy, instructions and an installation key. Compare its brown finish with the other components rather than selecting it as a black version. A plain circular detail without ornamental decoration suits a modern, minimalist composition. The completed appearance and lighting effect depend on the CAMELEON parts chosen, not on the ceiling cover alone.
