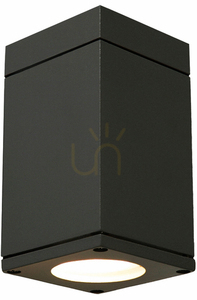

Sandvik 795BL is an outdoor ceiling light shaped as a square-section block, cast in aluminium and powder-coated black (RAL 9005). A diffuser of satin safety glass closes it at the bottom, and the light shines downwards only.
How big it is and how it is mounted
The body has an 8 × 8 cm footprint and stands 14 cm tall, so it takes up little room under eaves or a canopy ceiling. It is screwed on through two ø4.5 mm holes spaced 68 × 68 mm apart. The terminals take conductors up to 3 × 2.5 mm², and a round-sheathed supply cable 7–10.5 mm in diameter enters through an EPDM gland.
The terminals also let you carry the supply on to the next light (looped through with cable up to 3 × 1.5 mm²), which simplifies the wiring when several lights run in a row. It is a Class I fitting, so it has to be connected to the protective earth.
Which lamp and how much light
There is one GU10 lampholder for a PAR16 LED lamp of up to 4 W. The lamp is not included and has to be bought separately; the user replaces it. As an example the maker names a lamp of about 250 lm at 2700 K, a warm, slightly yellowish light. The version of the same fitting supplied with a lamp has its own index, 796BL.
The light is aimed downwards in a narrow 25° cone and none of it goes above the fitting (ULOR 0%, BUG rating B0-U0-G0) — it lights the ground beneath rather than the sky and the wall above.
Where it can be used

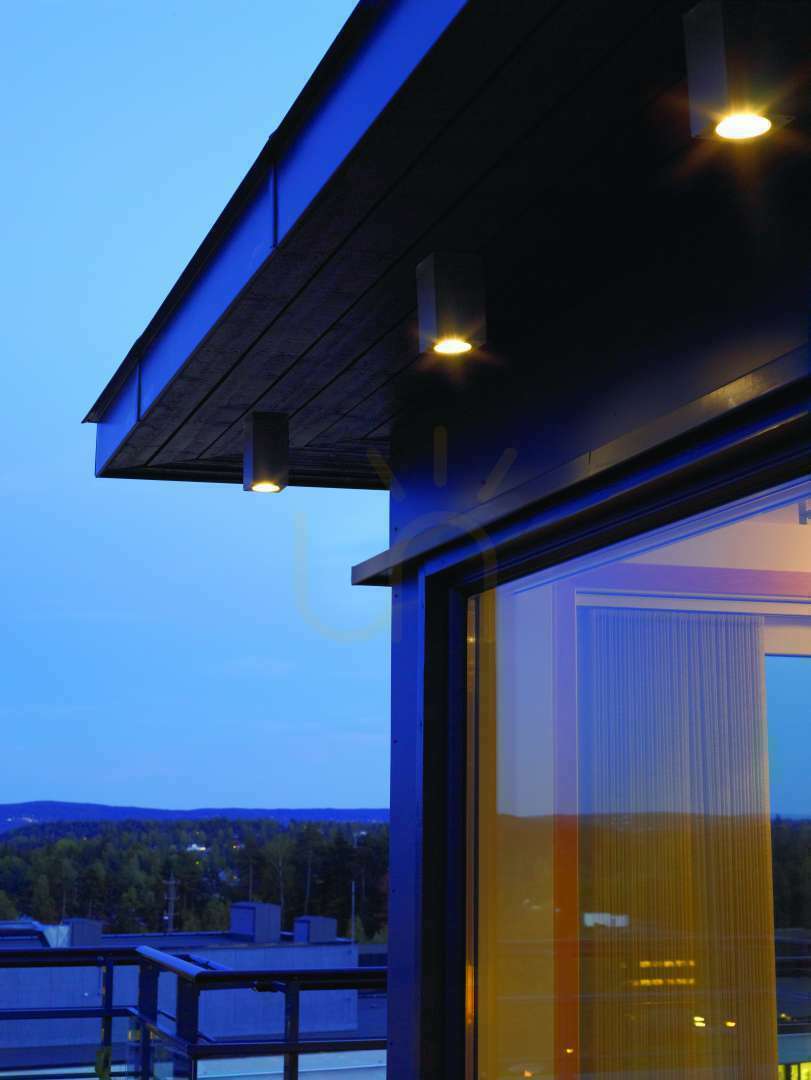

IP54 means protection against dust and splashing water from any direction, and IK08 means the housing withstands impacts of 5 J. The maker intends it for lighting private grounds and public areas; under the roof of a terrace or gazebo it lights the floor directly below. This model is made in aluminium, white, black and graphite.
