3-phase track spotlight SLV NUMINOS Zoom M Phase white 20 W 3000 K 15–60° 1006111

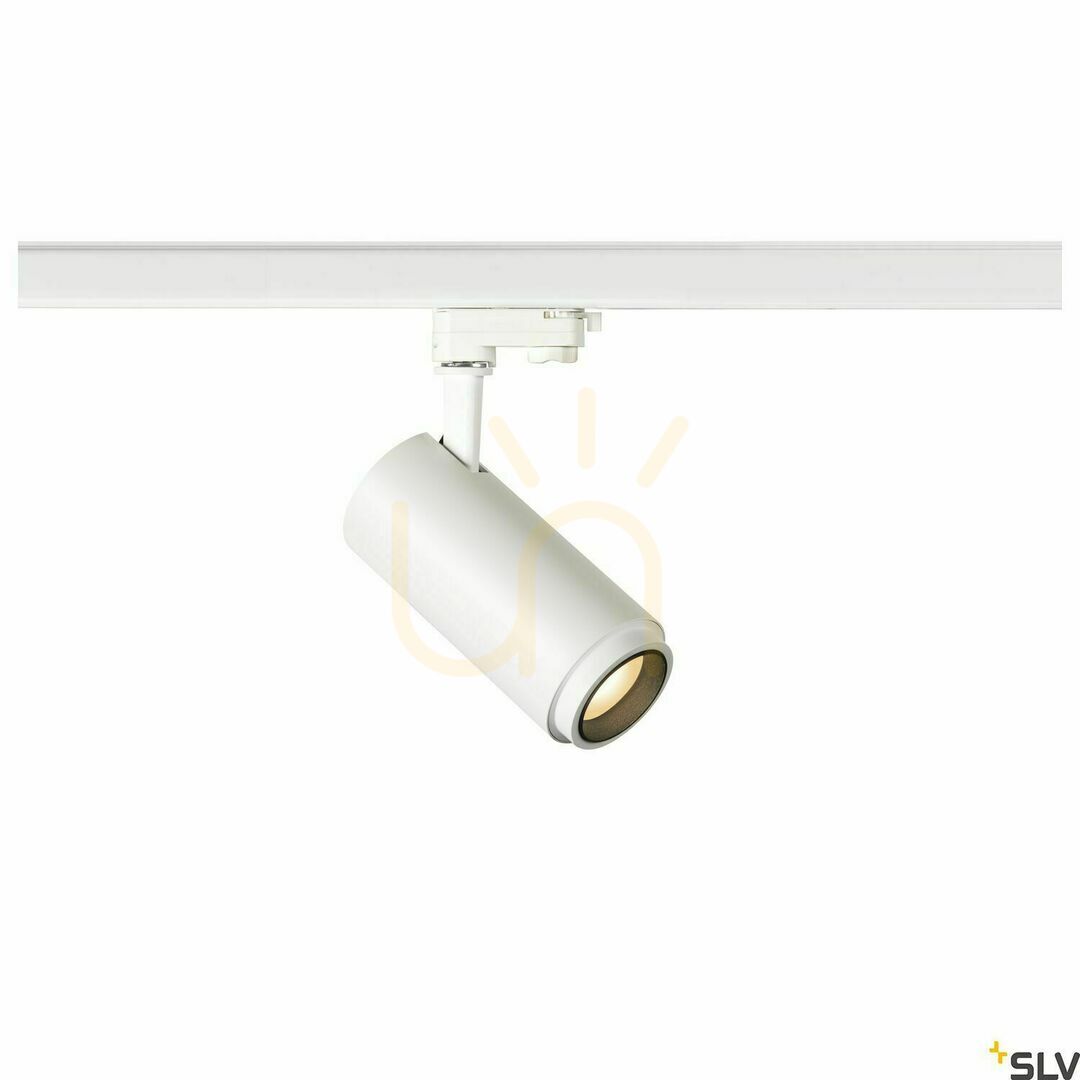

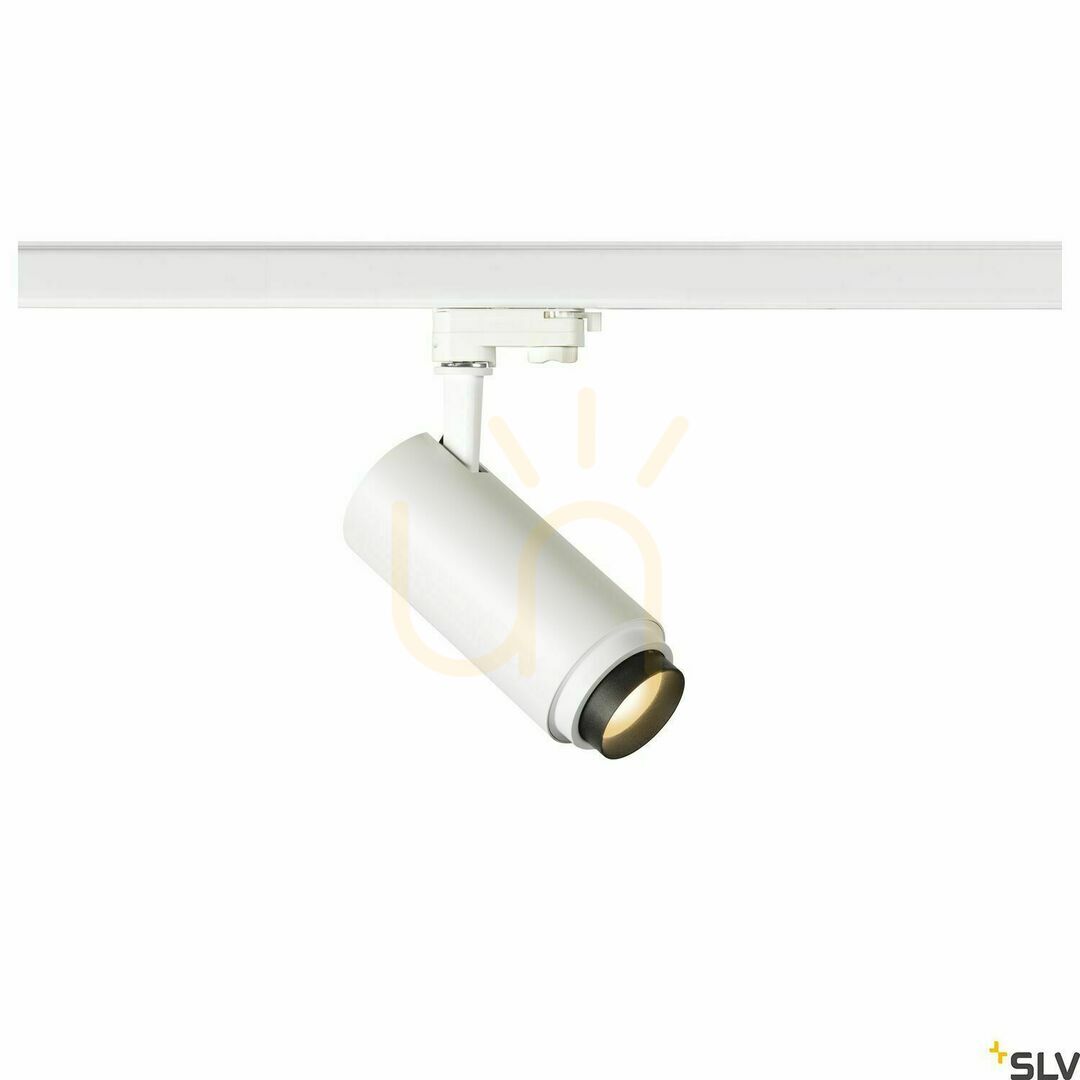

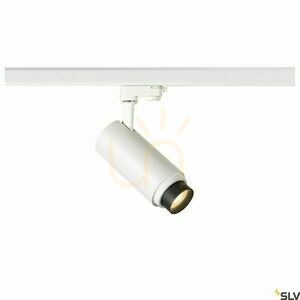

The SLV NUMINOS Zoom M Phase track spotlight, article 1006111, is a white head on a 3-phase track adapter. Housing and adapter are white. The aperture shows a dark optical baffle, so the white finish describes the body, not the inside of the beam. The body is aluminium and the optic cover is polycarbonate.

A short head on a ceiling track

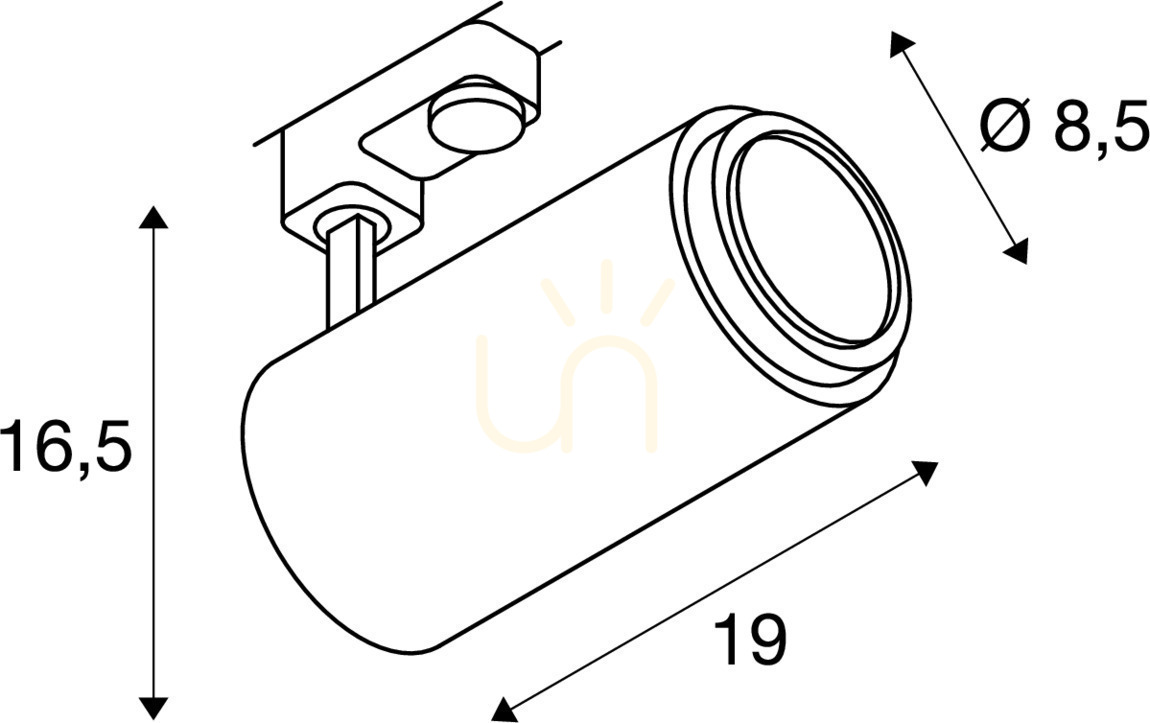

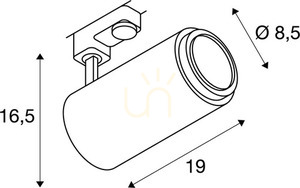

The technical card lists length 19 cm, height 16.5 cm and diameter 8.5 cm. It mounts on a ceiling track, so compare the 19 cm projection with the gap to a shelf or a frame.

The same card separates net weight 0.989 kg from gross weight 1.311 kg. The operating range is −20 °C to 40 °C. No IP rating is stated, so there is no basis for a bathroom or for outdoor mounting.

15–60° zoom at a fixed 3000 K

There is one light outlet. Beam angle moves from 15° to 60°, the head rotates through 350° and tilts through 90°. Rated luminaire output is 750–1800 lm at 20 W. The card does not map lumens to an angle, so a narrow spot is not the top of that range. Colour is fixed at 3000 K, CRI 90.

UGR is no higher than 25, not the 19 expected of a low-glare office fitting. A 15° spot suits goods or a picture. At 60° the same module covers a wider patch. Source registration 791822 is EPREL class E at 2190 lm, which is module flux, not the fitting's output.

Trailing-edge dimming

Dimming is phase-cut on the trailing edge. DALI is not provided. Some trailing-edge dimmers are listed as compatible and at least one model is not, so the dimmer code has to be checked on the SLV card.

Only a service technician may replace the source or the driver. There is no socket for a lamp bought separately. The card gives SVM 0.03 and risk group 1.

Shop, circulation, accent

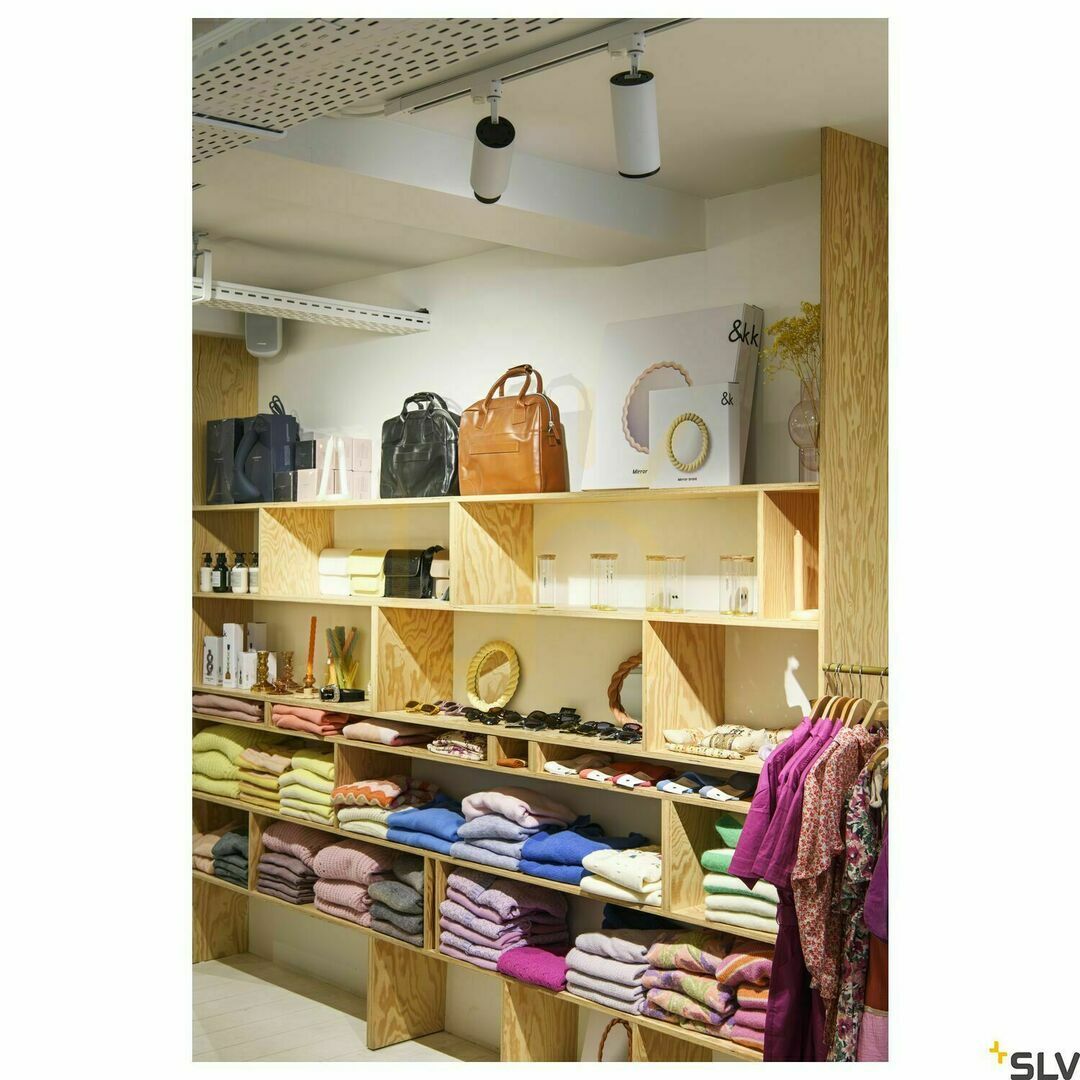

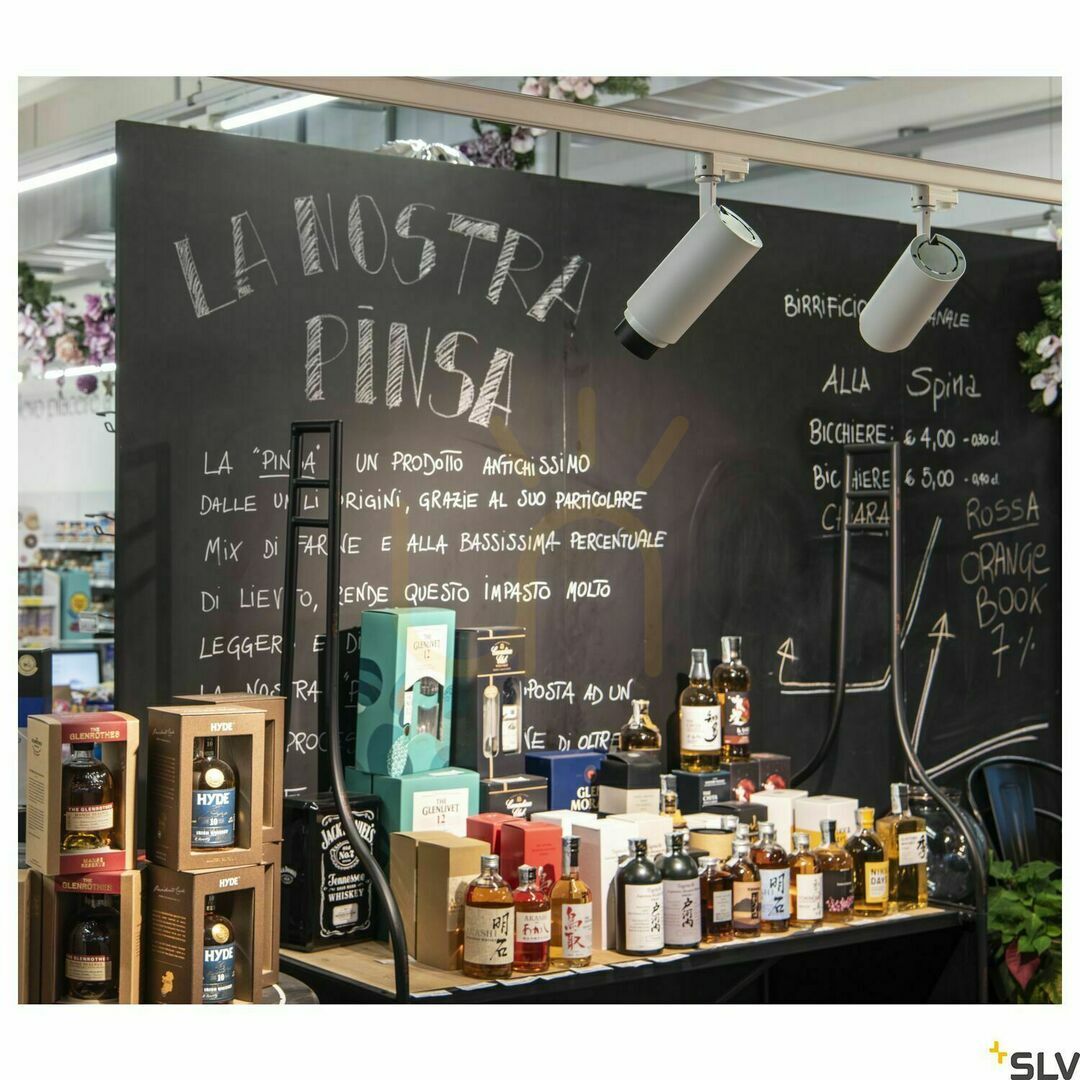

The form is modern and minimal: a plain white cylinder, no ornament. The gallery includes a shop-wall view of this head, which supports light over merchandise, a picture, or a corridor route. It does not support a bathroom, a garden, or a low-glare desk. With UGR up to 25 and no IP rating, the decision is shop, circulation and accent.
