Mdr Branta 830 35 W 230 V 60st White Dim

Mdr Branta 830 35W 230V 60Deg White Dim – WOJP11288

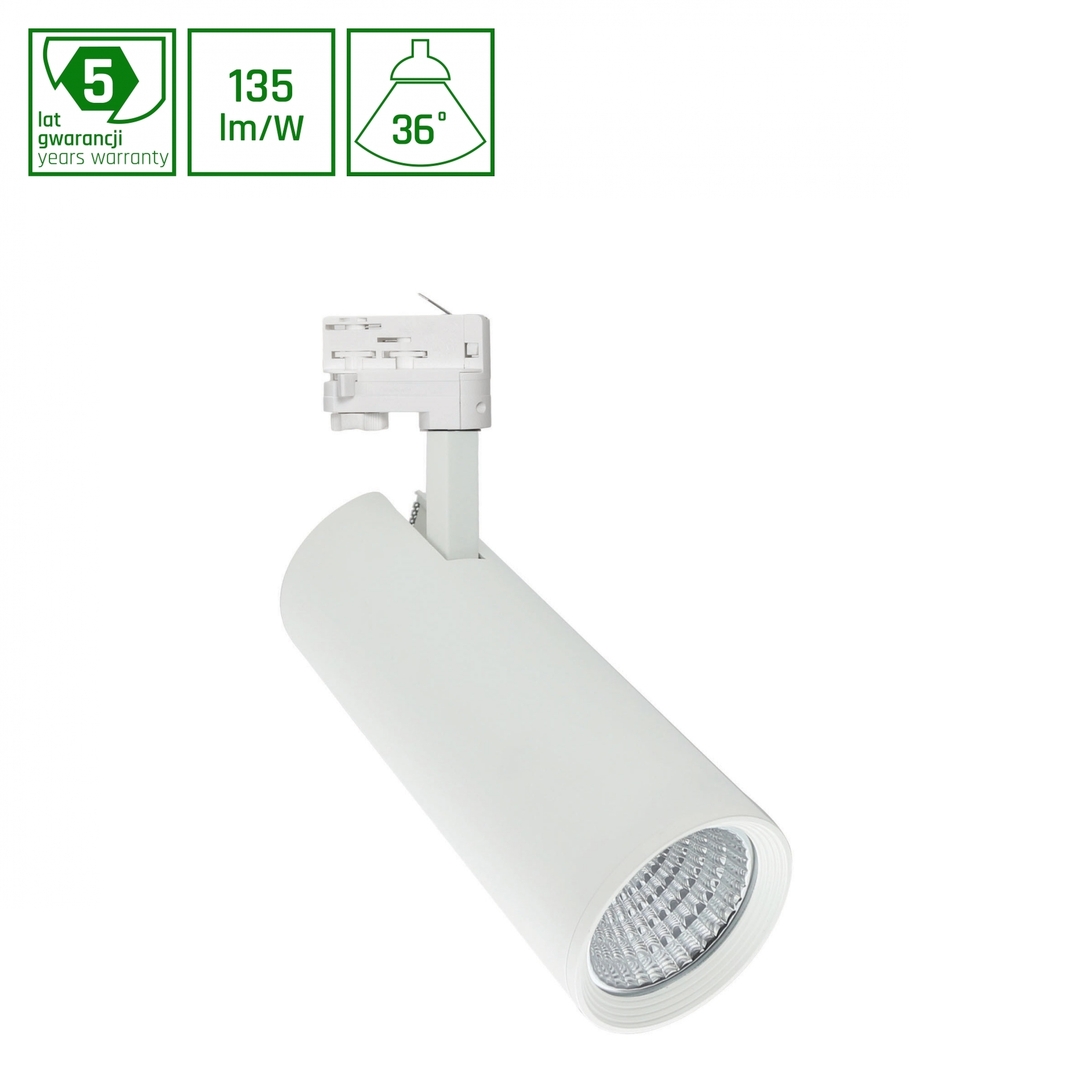

LED luminaire BRANTA, with a power of 35 W, high light efficacy 135 lm/W. It is made of high-quality components, supported by a 5-year warranty. It shines with a warm light (3000K), which promotes relaxation and rest, making the illuminated room cosier. Narrow beam angle 36° gives directional light so that selected objects or surfaces can be better exposed. Designed to be mounted on a track.

Key specifications

• Power: 35 W
• Voltage: 230 V
• Nominal current: 167 mA
• Luminous flux: 3850 lm
• Lamp efficacy: 135 lm/W*
• Light color: WW
• Colour temperature: 3000 K
• Beam angle: 36 °
• Degree of protection (ip): IP20
• Dimension: 90X233X300 [mm]
• Warranty: 5-years
• Ra: 80
• Energy efficiency classe: E
• Assembly: na szynoprzewód 3-fazowy
• Housing colour: white
• Housing material: aluminum
• Dimmable: dim

Selection and installation

Before installation, check the supply voltage, dimensions, mounting method and required IP rating. Select accessories and light sources according to this model’s technical documentation.
