Norlys Asker 1310 LED bollard light 7.2 W 3000 K graphite RAL 7016 55 cm IP65

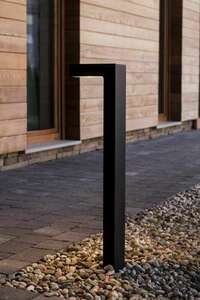

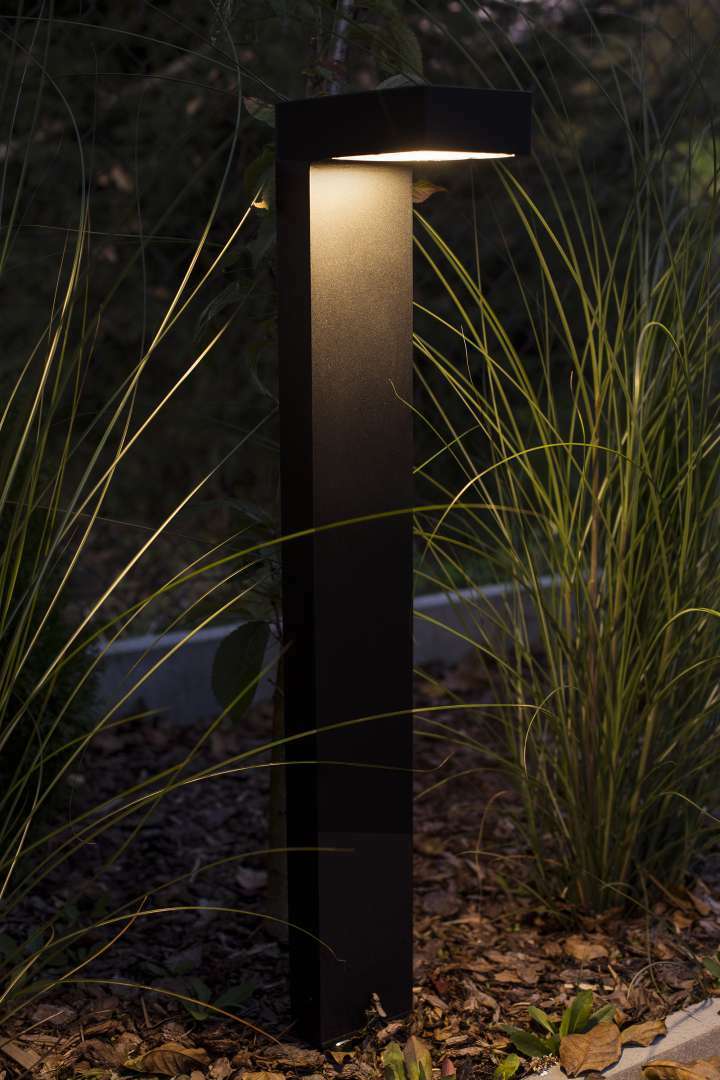

The Norlys Asker 1310GR is an inverted-L bollard light: a slim 11 cm wide, 55 cm tall shaft ends in a head that reaches out 20 cm. The body is cast aluminium, powder-coated graphite (RAL 7016). The LED module is built in under the head, so there is no bulb to buy.

How it lights

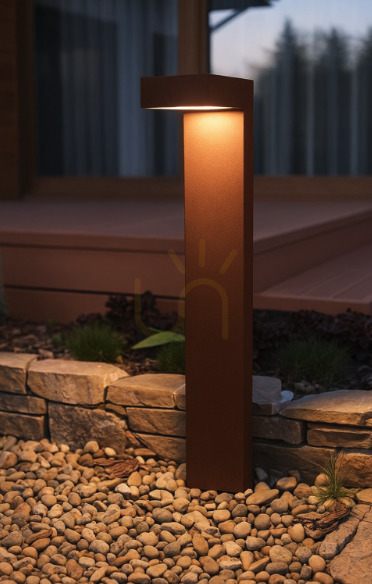

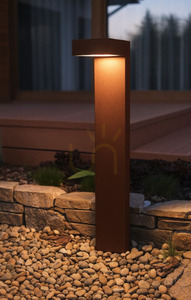

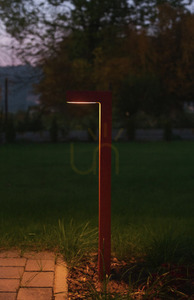

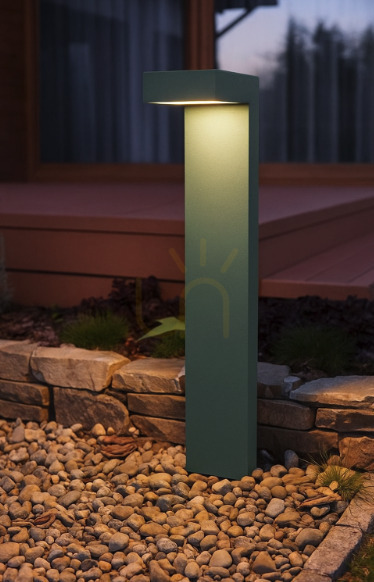

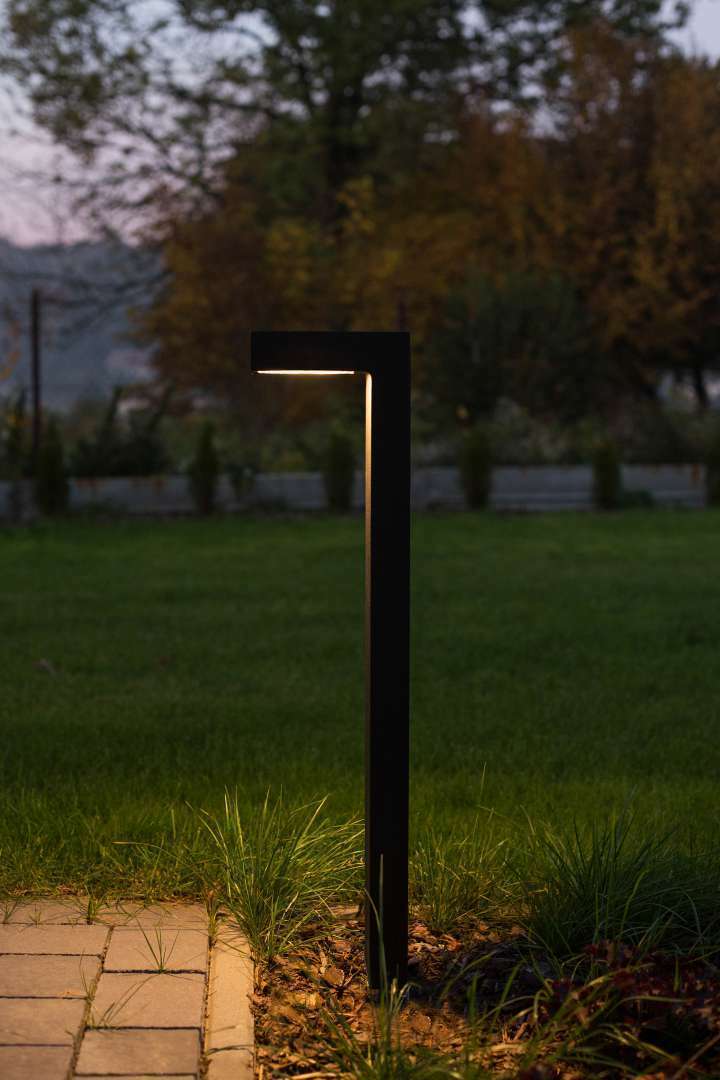

Light leaves from under the head through a clear, textured diffuser of UV-stabilised polycarbonate and is directed downwards – only 0.63% of the output escapes upwards (BUG B0-U1-G0). It therefore lights the path or lawn beside the bollard without dazzling passers-by or shining into windows.

Drawing 7.2 W, the fitting delivers 573 lm at 3000 K, a warm white, with CRI 80 colour rendering. It can be dimmed, but only with a trailing-edge phase dimmer. Norlys rates the LED module at L80 above 102,000 hours and the driver at 50,000 hours.

Fixing and wiring

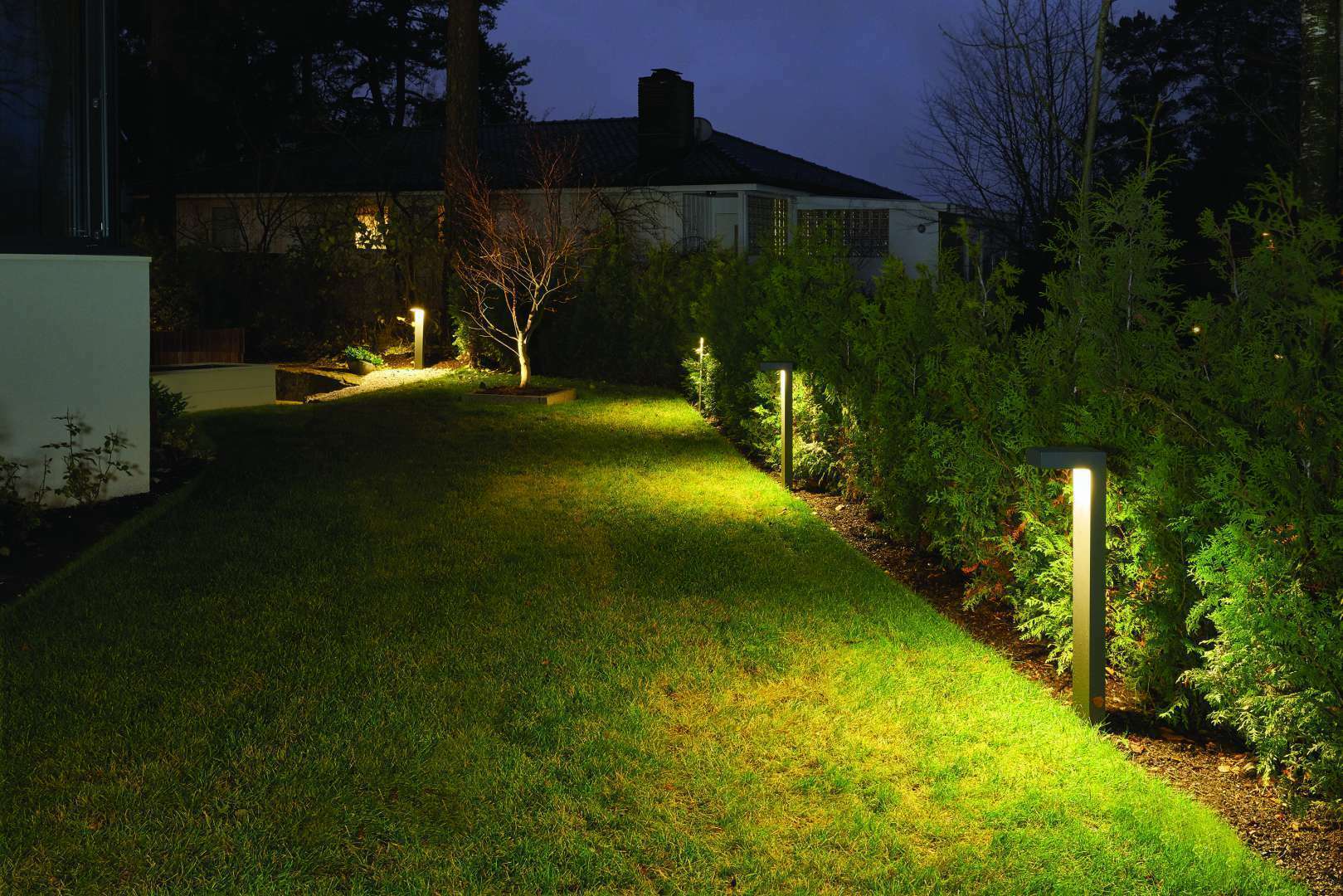

The bollard weighs 3.04 kg and is fixed with four bolts through ø8 mm holes spaced 18 × 50 mm. Mounting accessories are sold separately: ground anchor 1908, concrete anchor 1907, concrete-foundation adapter 1909, or mounting adapters 3081 and 3090. The terminals take conductors up to 3 × 2.5 mm² and a cable up to ø12.5 mm, and the supply can be looped on (up to 3 × 1.5 mm²), so a row of bollards along a path runs on one cable.

Protection class I means an earth conductor must be connected. IP65 and IK10 impact resistance – the top of that scale – let it stand beside a driveway or pavement where accidental knocks happen.

Where it fits

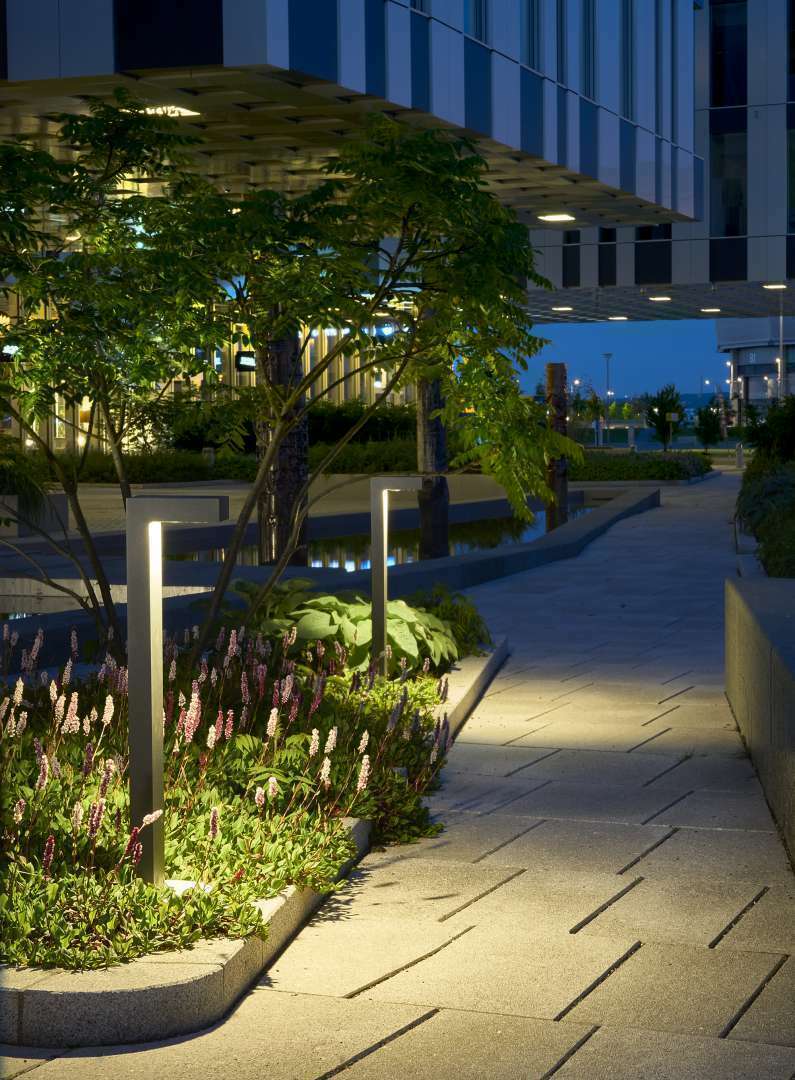

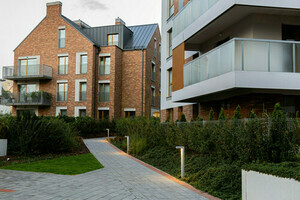

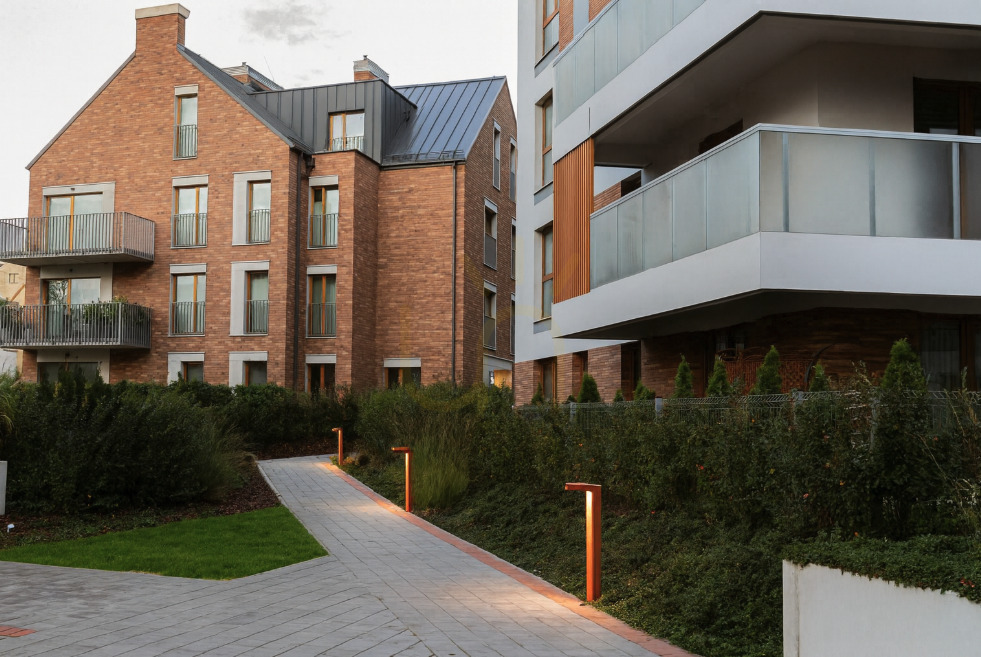

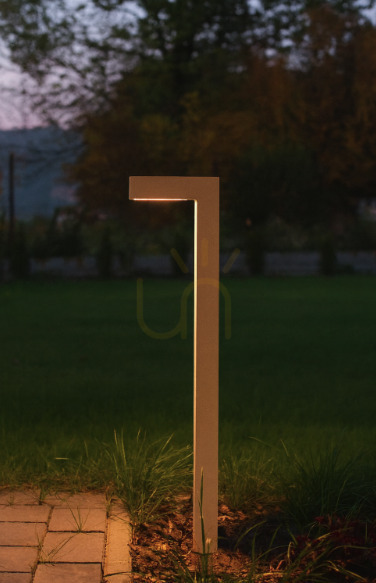

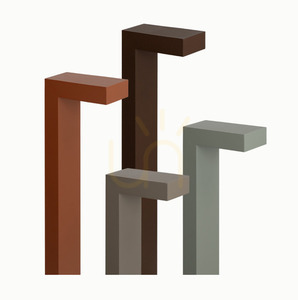

The angular, geometric body without ornament suits modern architecture. The bollard is intended for gardens, terraces and driveways, parks and streets, and the grounds of hotels and restaurants. Graphite is dark but not black, so the bollard does not vanish into planting after dark or stand out harshly against paving by day.
