Steinel IS180-2 anthracite motion sensor

Steinel IS 180-2 anthracite motion sensor

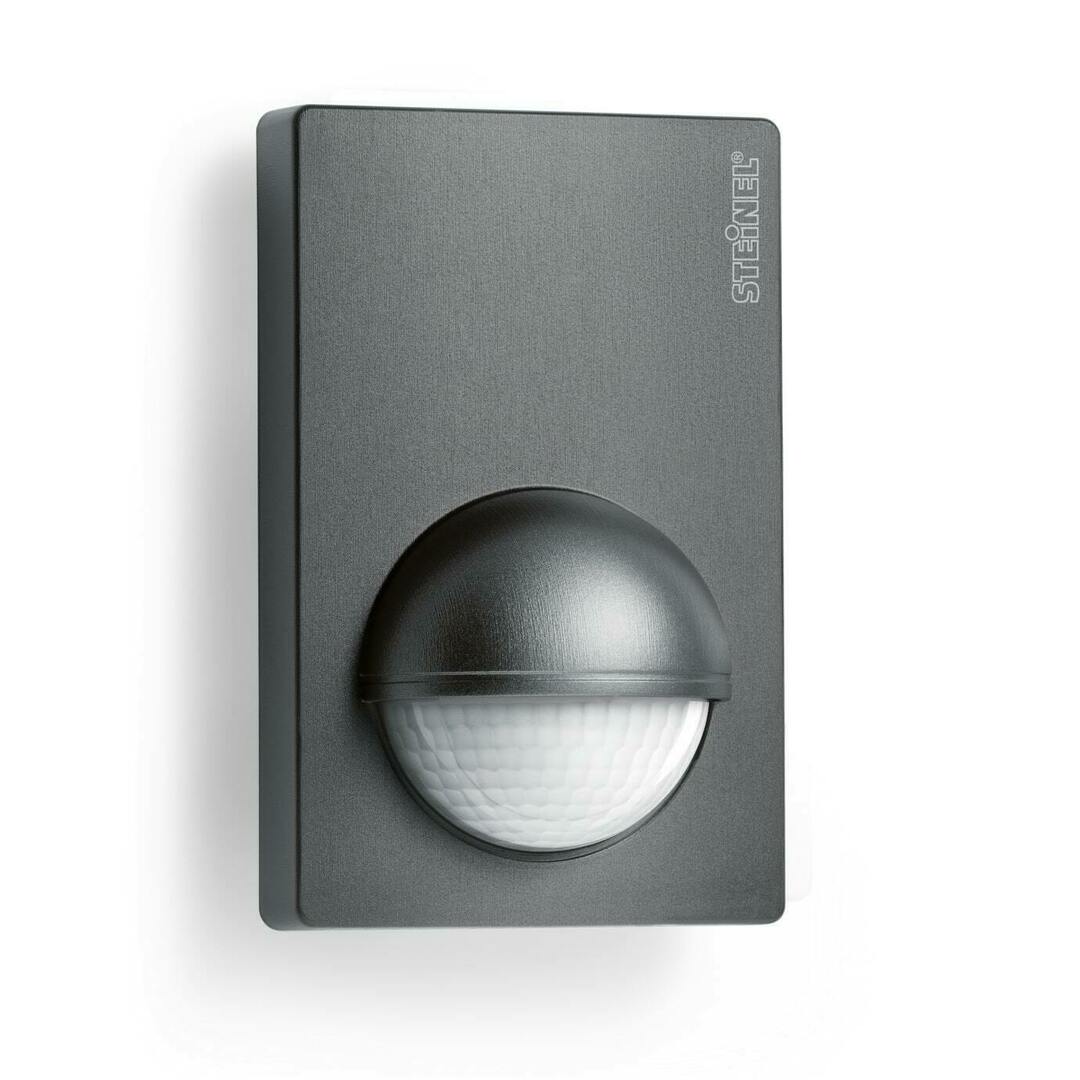

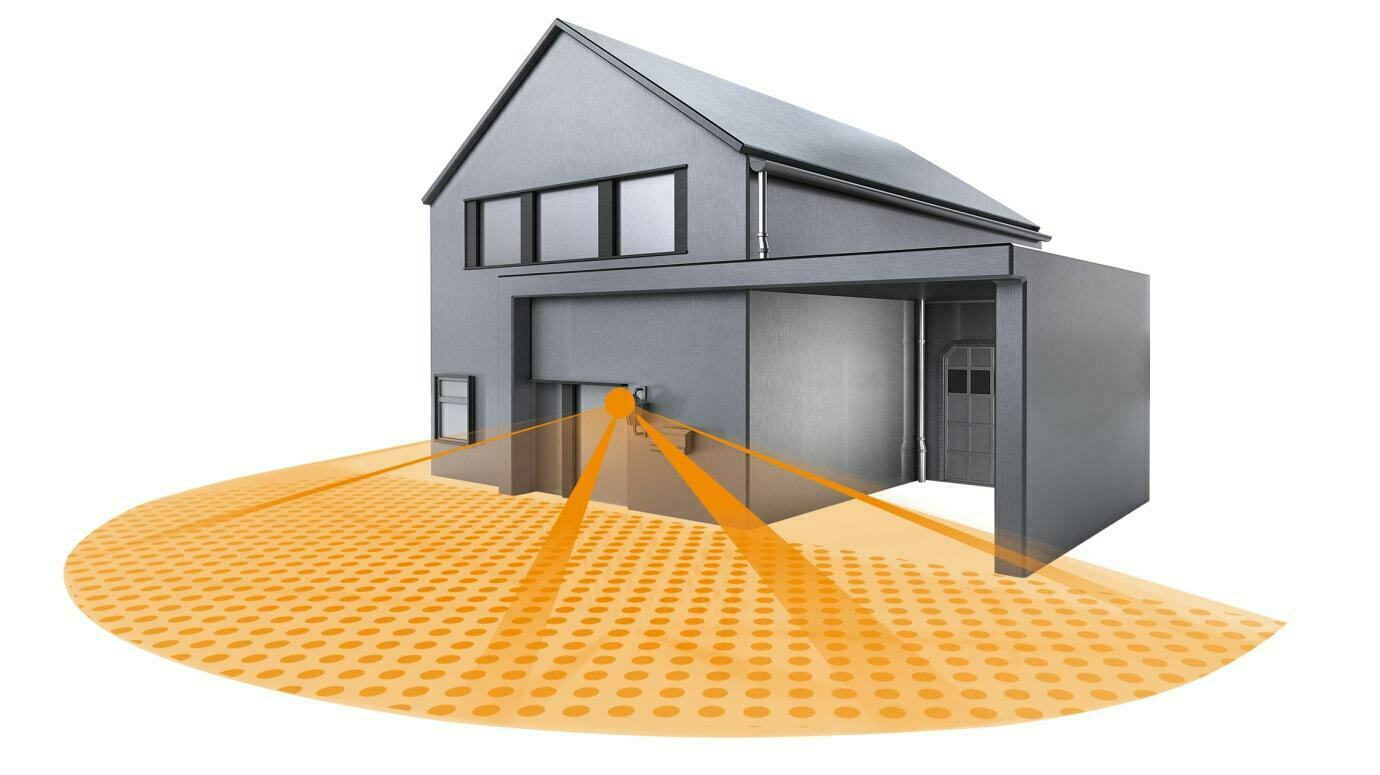

The Steinel IS 180-2 is an infrared wall sensor for automatic lighting control around a building and along access routes. Its slim anthracite housing sits close to the wall, making it a discreet choice beside an entrance, on a façade, by a driveway or in a passage between buildings. The sensor covers a 180° area, and its reach can be set to either 5 m or 12 m so the response can be tailored to the zone being monitored.

Set the response to suit the location

A twilight threshold adjustable from 2 to 2000 lx determines when the connected circuit can operate. The switch-on time is also adjustable, from 5 seconds to 15 minutes. IS 180-2 works on a 230 V installation and can switch loads up to 1000 W; check the specifications of the complete circuit before selecting the connected fittings.

Wall and corner installation

• 180° detection angle;
• adjustable reach of up to 5 or 12 m;
• 2–2000 lx twilight setting;
• 5 s–15 min switch-on time;
• dimensions: 15 × 8.7 × 8.7 cm;
• IP54 protection rating.

The sensor is designed for wall installation, and the supplied bracket allows it to be fitted on an outside or inside corner. Its IP54 rating and indoor/outdoor specification make it a practical option for an exposed façade. Connection to the electrical installation should be carried out by a qualified installer.
