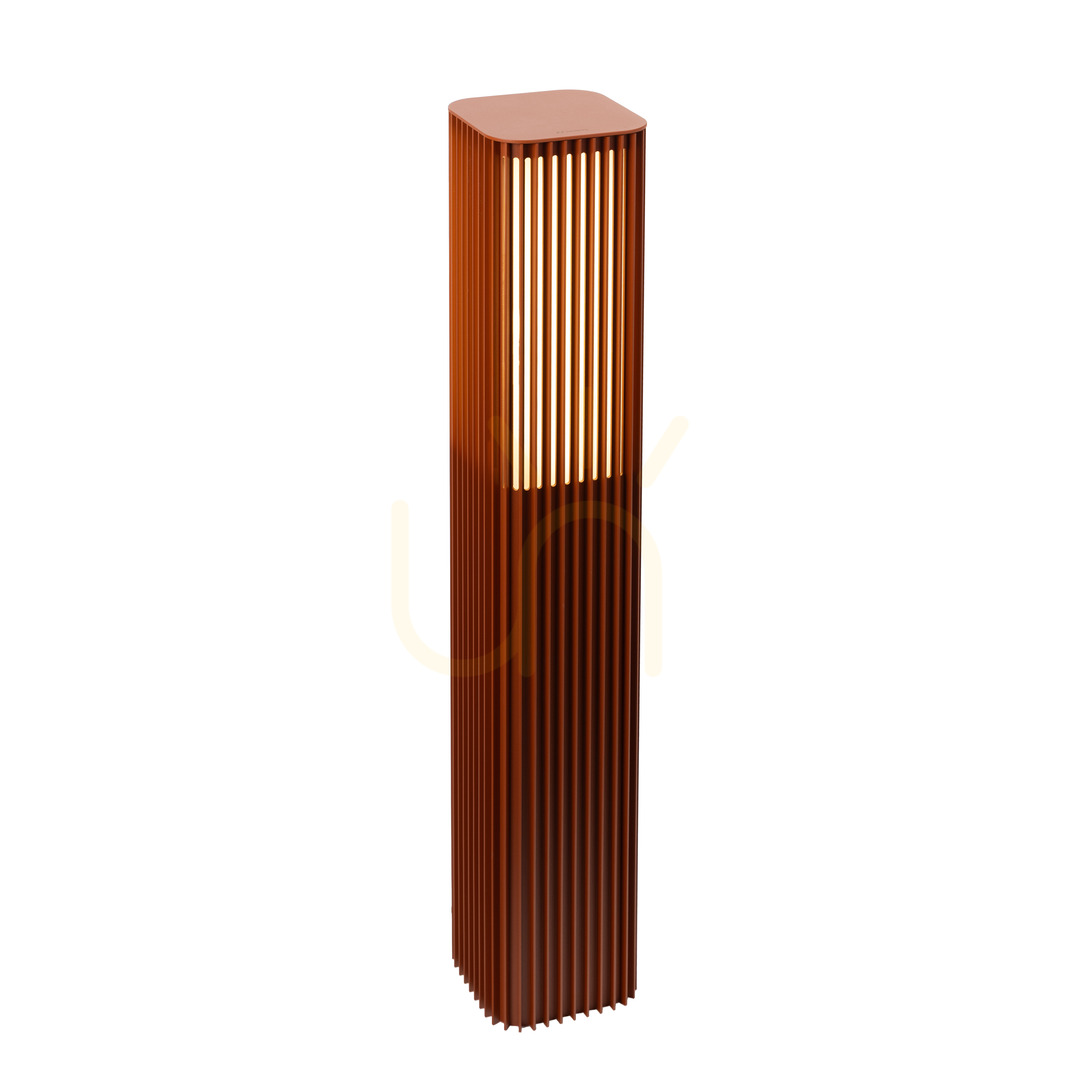

Astrid 2210CB is an 85 cm LED bollard with a square 14 × 14 cm section. Its extruded aluminium body is made of vertical slats, powder-coated in copper brown (RAL 8004); in the upper part an opal PMMA diffuser shows between them.
What light it gives
The luminaire draws 10.6 W and delivers 247 lm at 2700 K — warm, yellowish light. The opal diffuser spreads it sideways, and half the flux (ULOR 50%) goes above the luminaire, so the bollard glows like a lantern: it marks a path, an entrance or the edge of a terrace rather than lighting a large area. Ra 80 and SDCM3 mean a consistent light colour across several bollards in a row.
Control and servicing
The driver is built in and runs on DALI2 — dimming needs a DALI controller, not an ordinary dimmer. The LED module and driver are replaced by a professional service (service kit ZN2210xx0009). The manufacturer rates the LED at L80B50 above 70,000 h and the driver at 100,000 h.
Installation and what to buy separately
The bollard is bolted down with three screws through ø9 mm holes set 120° apart on a ø65 mm circle. The mounting adapter (3080GA), concrete-in anchor (205), ground anchor (206) or concrete-foundation adapter (206S) are sold separately. The terminals take conductors up to 5 × 2.5 mm² and allow the supply to be looped on to the next bollard; the cable can be up to 12.5 mm across. The manufacturer states how many luminaires one circuit breaker carries: B 10 A — 46, B 16 A — 74, C 10 A — 74, C 16 A — 119.
It is a protection class I luminaire (protective earth required), rated IP65 and IK10 — the highest impact rating on the IK scale, which matters by driveways and paths where a bollard can be knocked. It weighs 6.24 kg. The manufacturer describes it as a luminaire of modern design.
