Norlys Stavanger 2249AL LED bollard light aluminium RAL 9006 28 cm 4000 K IP65

Stavanger 2249AL is a low cylindrical bollard light, 20 cm in diameter and 28 cm tall. The body is powder-coated cast aluminium in white aluminium RAL 9006, and a ring of satin PMMA runs under the flat top to let the light out. The fitting has an integrated LED module, so there is no bulb to buy.

How much light it gives

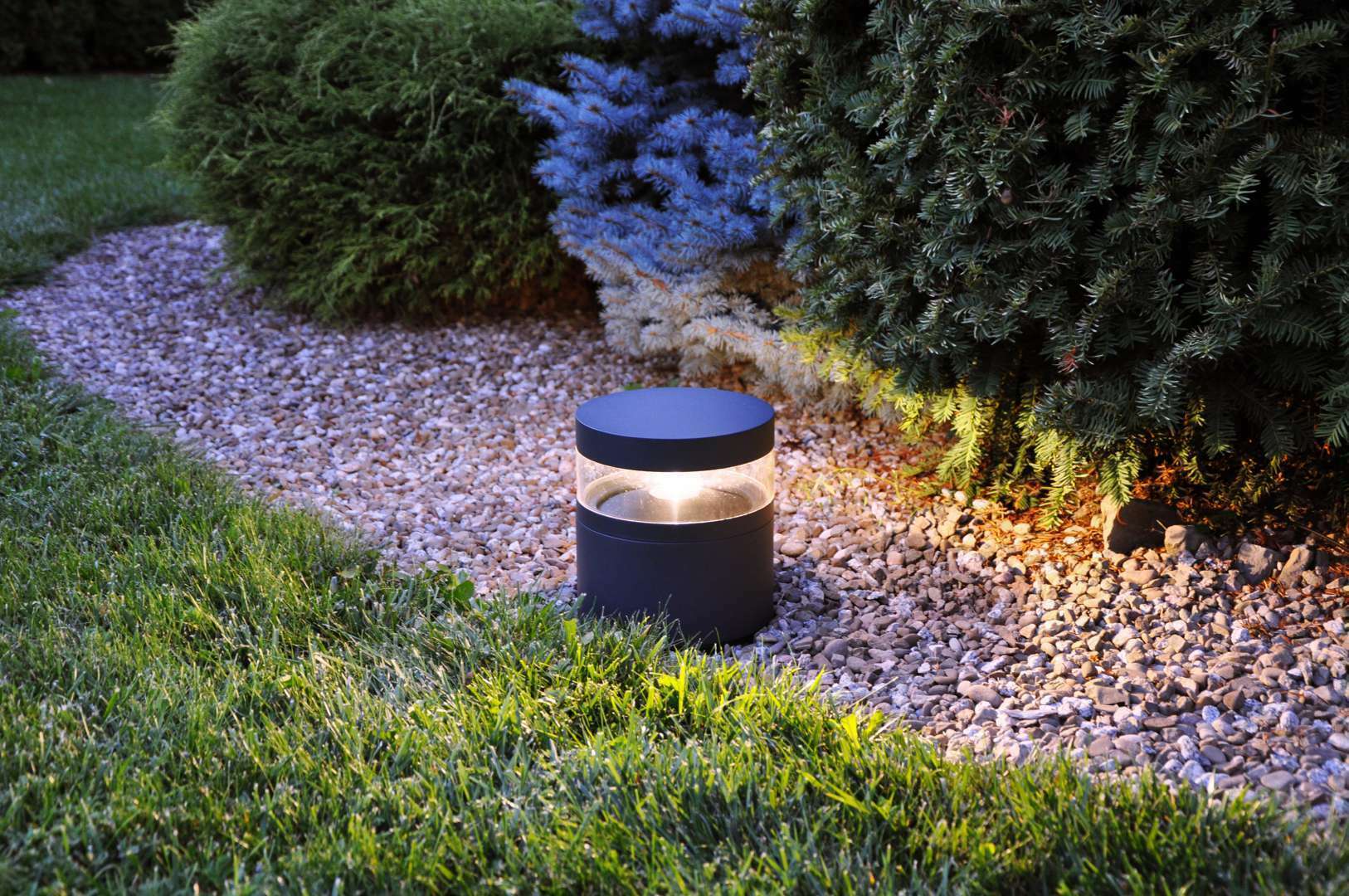

The fitting delivers 403 lm at 8.9 W. That is orientation lighting: the bollard marks the edge of a path, driveway or flower bed, but it will not replace a floodlight covering the whole garden. 4000 K is neutral white, and the satin diffuser spreads it softly all round, with no harsh point of light in your line of sight. About 39% of the flux (ULOR 39.38%) goes above the horizontal, so the bollard is easy to see from a distance but also lights the space above it — worth considering near a bedroom window. SDCM3 means several units in a row shine in the same shade of white.

The fitting dims on phase-cut dimmers, both trailing-edge (TE) and leading-edge (LE), so it works with either of the common dimmer types.

Mounting and wiring

The base has three ø9 mm holes set at 120° on a ø145 mm circle. Fixings are not included: Norlys sells a ground anchor (1231), a concrete-in anchor (1230), a concrete foundation adapter (1232) and a mounting adapter (3087) separately. The terminals take conductors up to 2×4 mm² and allow looping the supply on to the next fitting with round cable 8–17 mm in diameter, so several bollards along one path run from a single cable.

Durability and build

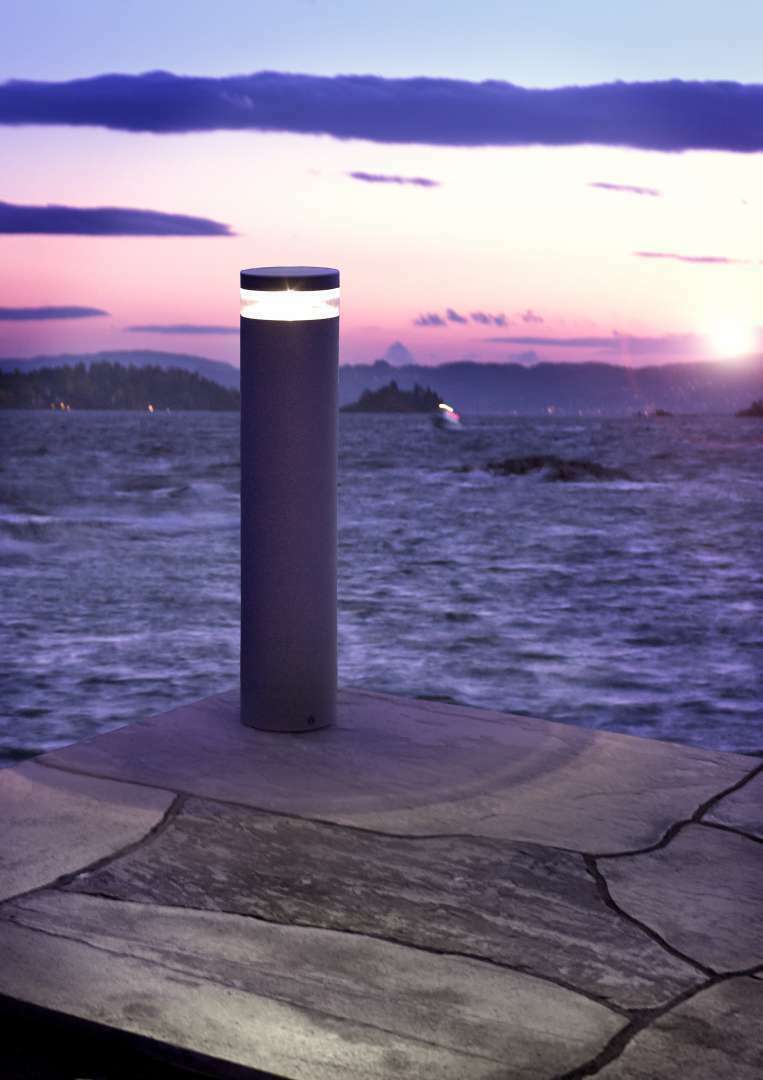

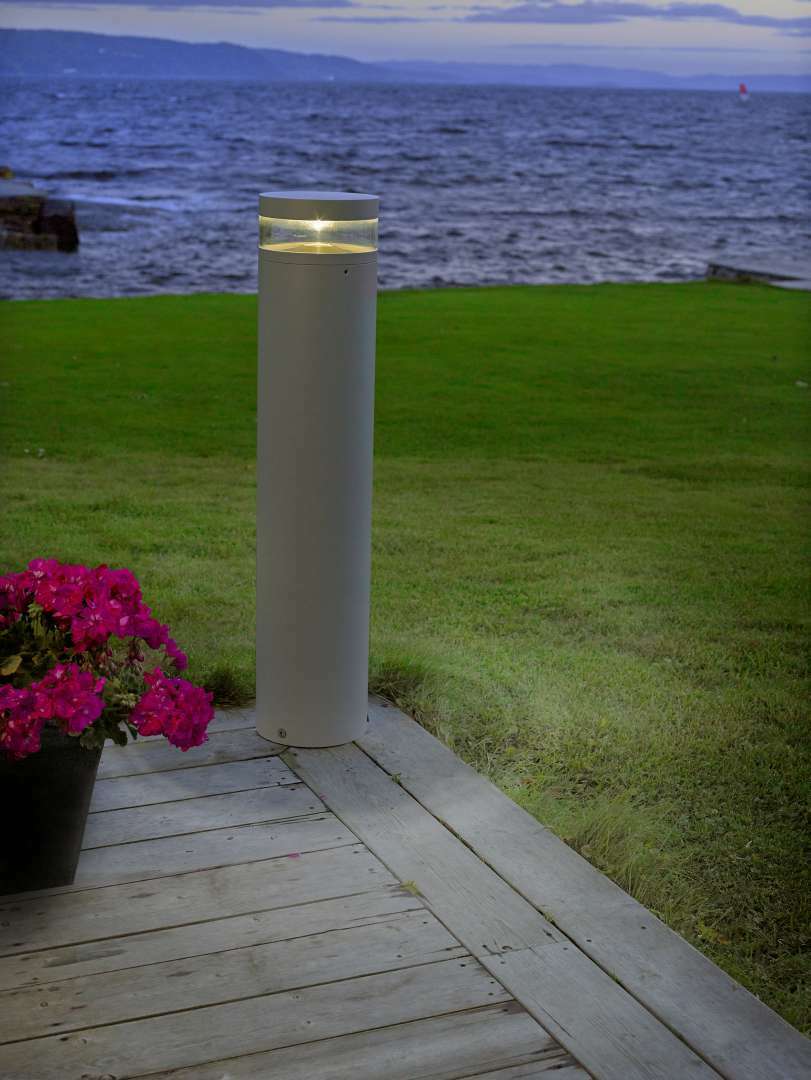

IP65 means fully dust-tight and protected against water jets, so the bollard can stand outside without any cover. Impact resistance IK08 protects it when mowing the lawn or clearing snow. Protection class II means reinforced insulation with no earth conductor. The fitting weighs 4.74 kg. The Stavanger range offers the same body at 3000 K (2248) and as 50 cm and 95 cm bollards; the plain, unornamented cylinder fits a Scandinavian style.
