Norlys STAVANGER 1247GR graphite LED garden bollard, 8.4 W, 3000 K, 28 cm

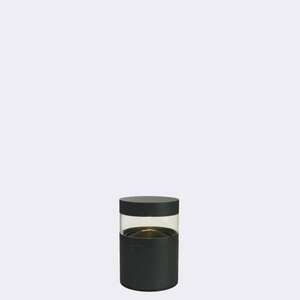

Norlys STAVANGER 1247GR is a low LED garden bollard finished in graphite RAL 7016. Its powder-coated cast-aluminium body combines a cylindrical base, a broad flat cap and a clear diffuser band. At 28 cm high, this version is distinct from the taller bollards in the same family.

Light close to the ground

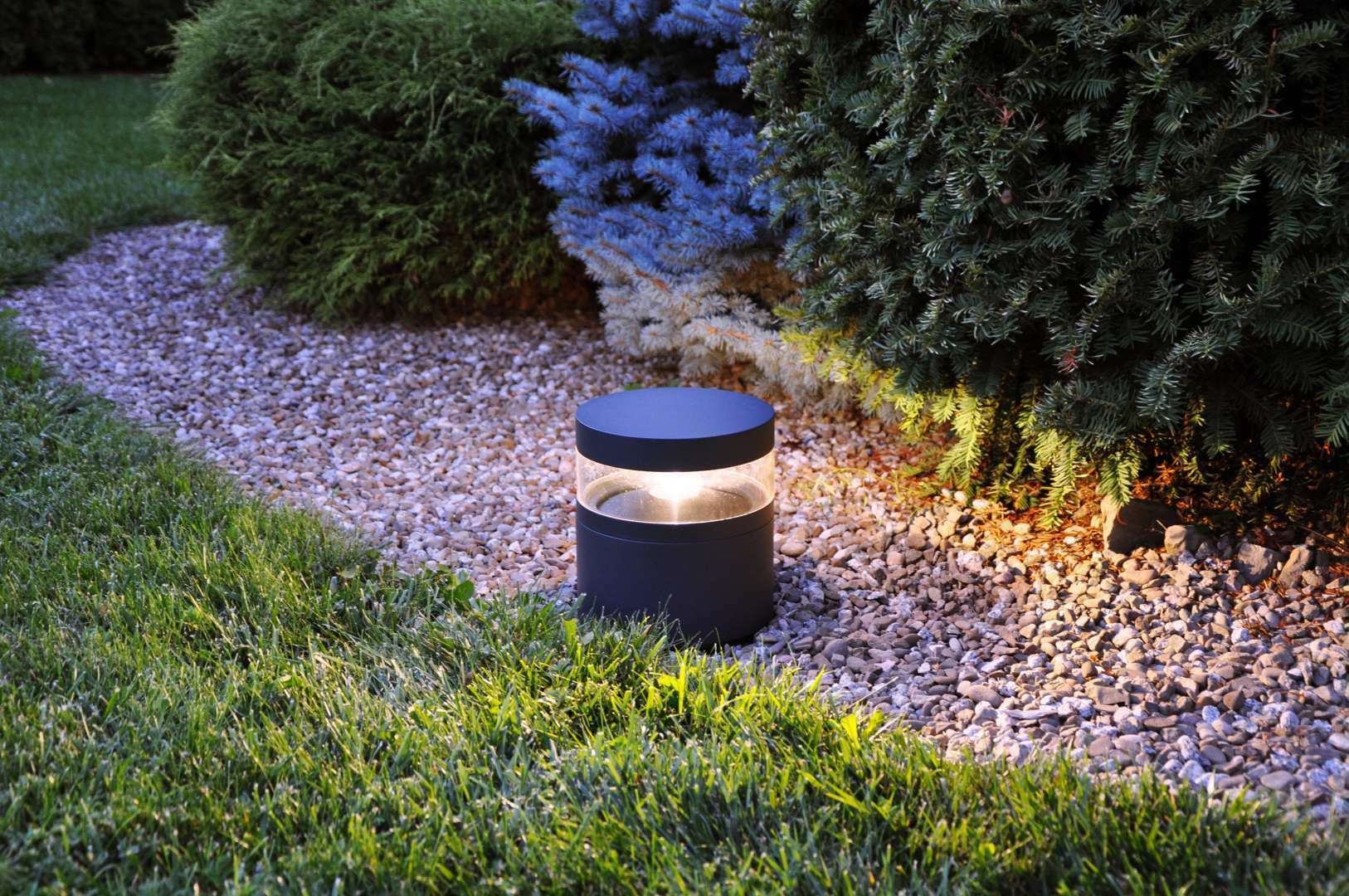

The fitting distributes indirect light downwards, symmetrically around its axis. It can serve a garden path, a terrace edge or the side of a driveway where lighting from a low mounting position is needed. At a hotel or restaurant, the same role applies to outdoor pedestrian areas rather than interiors. Spacing should follow the lighting design and the illumination required on the surface.

The integrated LED module produces warm white light at 3000 K. Output from the complete luminaire is 312 lm; the separately quoted 854 lm describes the light source itself. Use the luminaire figure when assessing path lighting, rather than treating the two figures as interchangeable. Power consumption is 8.4 W. Brightness adjustment requires compatible trailing-edge phase dimming.

Size and visual character

The footprint measures 20 × 20 cm. Before installation, compare these dimensions and the height with nearby edging, planting and the available passage width. Keep the body outside the walking route. The simple shape, restrained detailing and graphite finish suit modern, minimalist and Scandinavian outdoor schemes without introducing an ornate lantern silhouette.

Fixing and future servicing

The clear polycarbonate diffuser is UV-stabilised. The construction incorporates a silicone gasket, IP65 protection and IK10 impact resistance. Fixing uses three 9 mm holes spaced at 120° on a 145 mm circle. Anchors and adapters must be chosen for the supporting surface and purchased separately.

A qualified electrician should connect the fitting to the 220–240 V supply according to the installation instructions. Both the LED module and control gear are replaceable by a professional service. This is not a fitting for routine user replacement of a standard E27 bulb.
